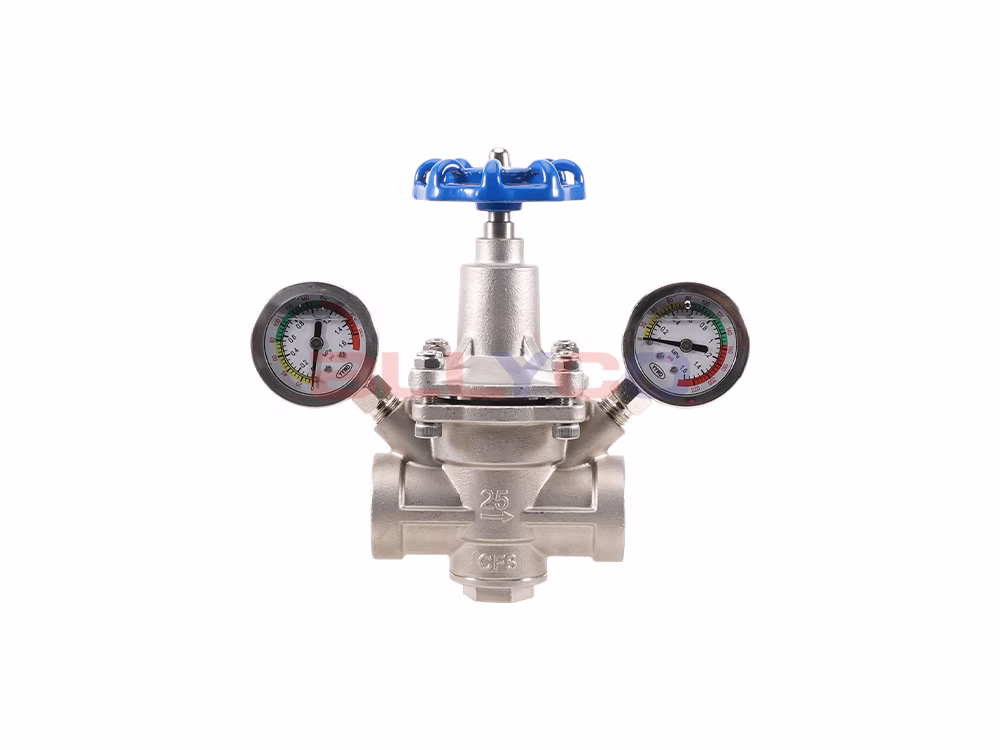

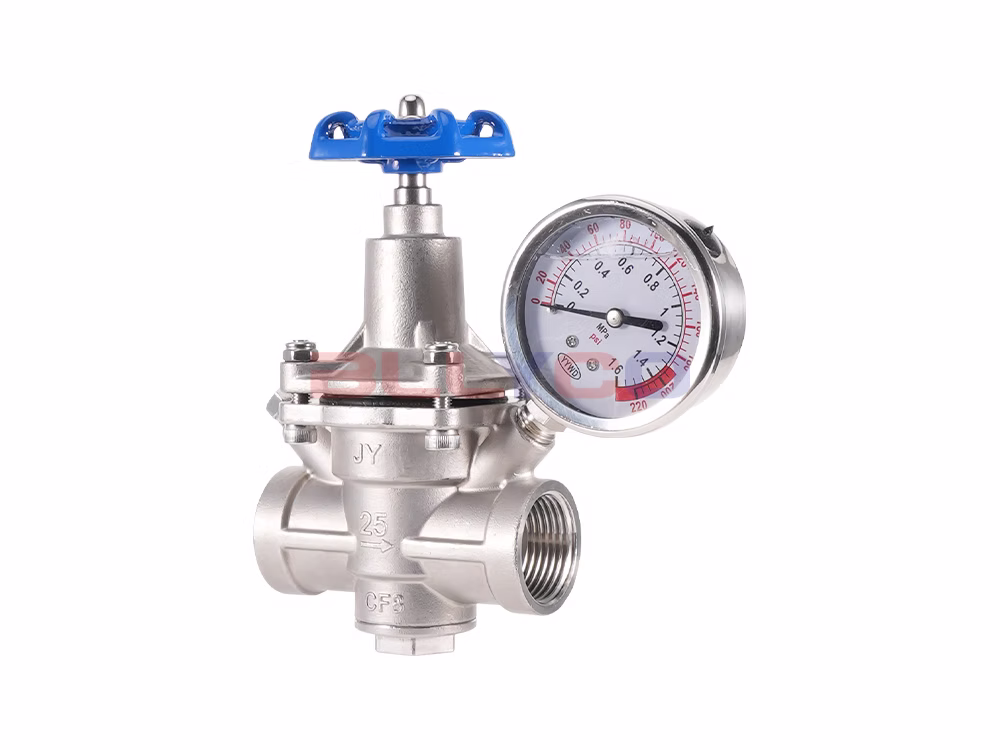

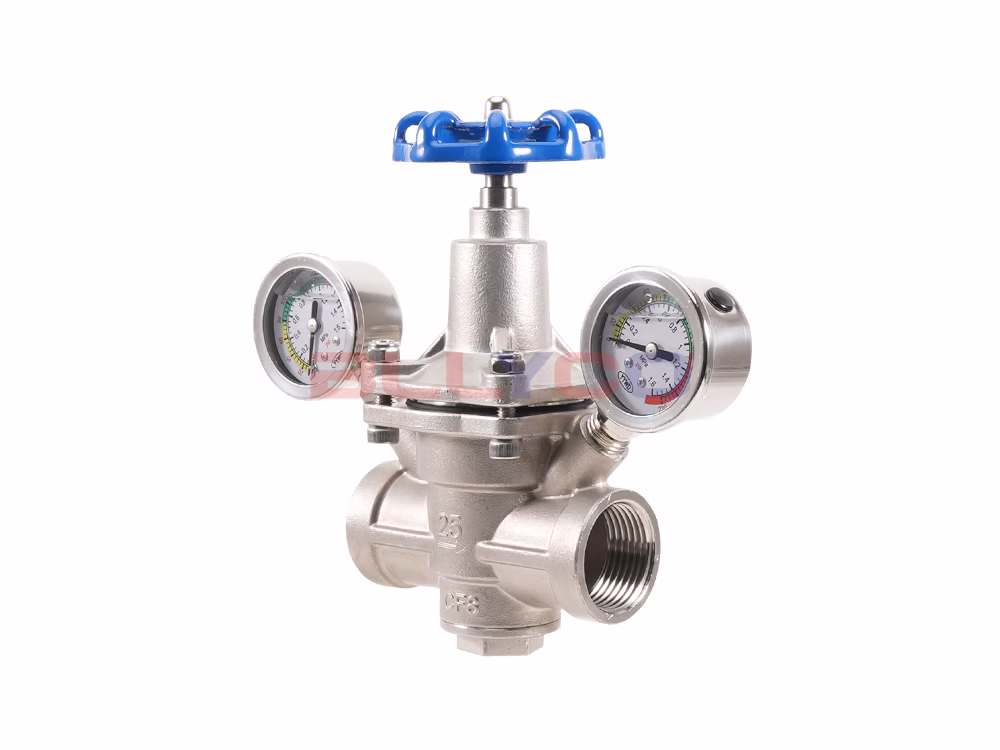

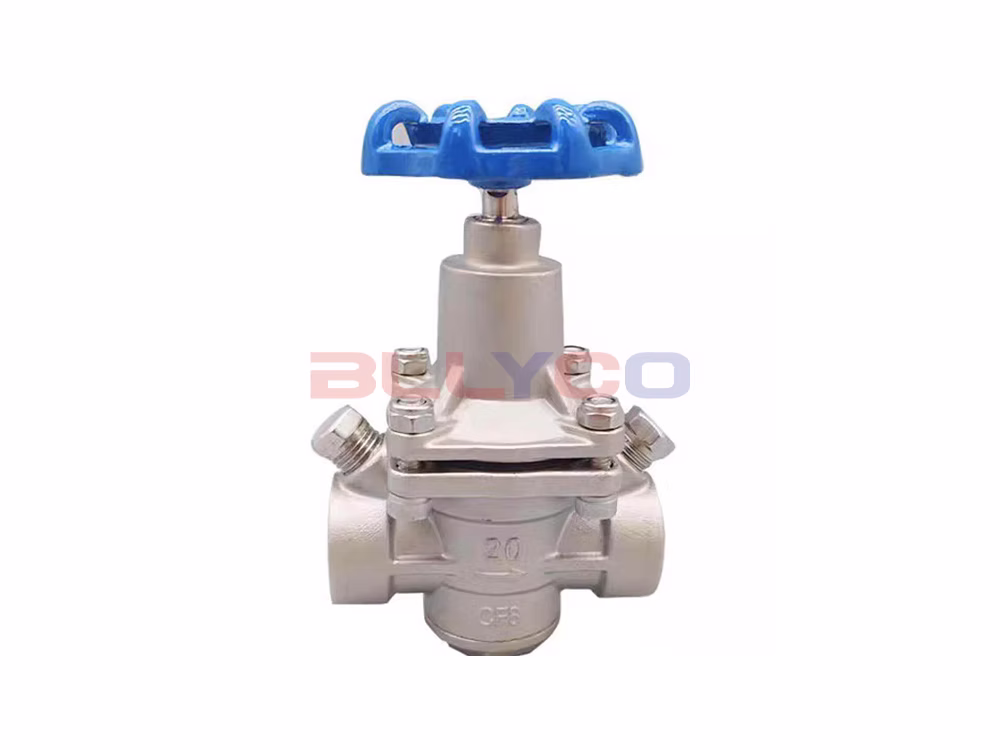

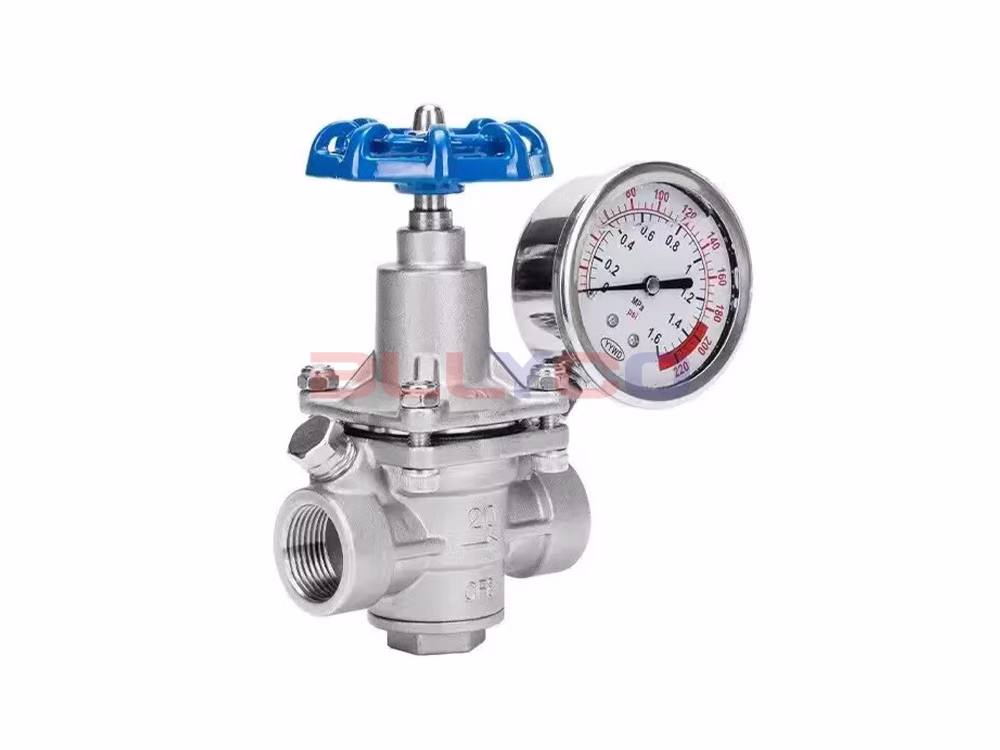

304 Stainless Steel Dual-Gauge Adjustable Pressure Reducing Valve YZ11X-16P

Product Description

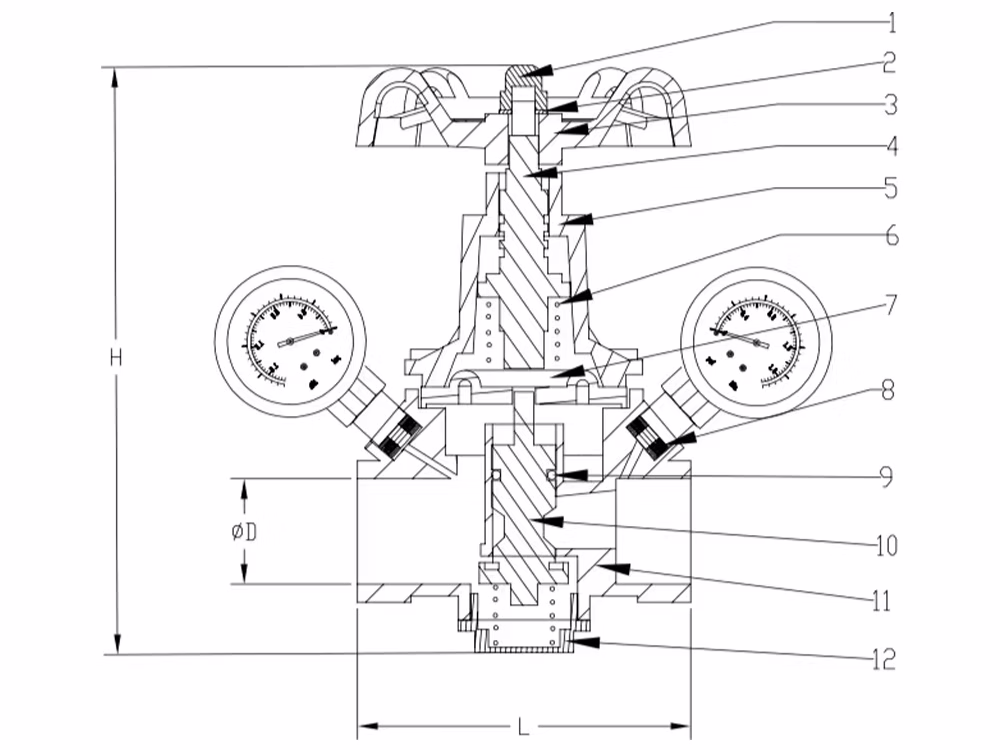

The YZ11X stainless steel Dual-Gauge Adjustable Pressure Reducing Valve is a direct-acting diaphragm pressure reducing valve, representing an improved version of the original model of the same type. It consists primarily of a diaphragm, valve disc, spring, and other components. The diaphragm senses changes in downstream pressure to drive the valve disc up or down, thereby adjusting the valve opening to achieve pressure reduction and stabilization. This ensures more uniform water pressure distribution, prevents overpressure in certain supply lines, and optimizes water supply zoning in high-rise buildings. It is primarily used in various building water systems, fire protection systems, central air conditioning systems, and heating systems.

Product Features

1. Featuring a direct-acting diaphragm design, it has a very simple internal structure, is jam-free, and offers reliable performance and long-lasting durability.
2. Resistant to dirt and scale, requires no filter or bypass pipe, and is extremely easy to install, saving significant space and installation costs.
3. The outlet pressure is precisely adjustable; under normal conditions, it can be assumed that the outlet pressure is minimally affected by the inlet pressure.
4. Excellent hydraulic performance, low pressure loss, and a pressure reduction ratio of 10:1 or higher.
5. The enlarged and reinforced valve body provides low-pressure, high-flow pressure-reducing capabilities, meeting a wide range of pressure-reduction requirements, and is particularly suitable for branch pressure-reducing valve systems.

Product Specifications

Product Size Guide
