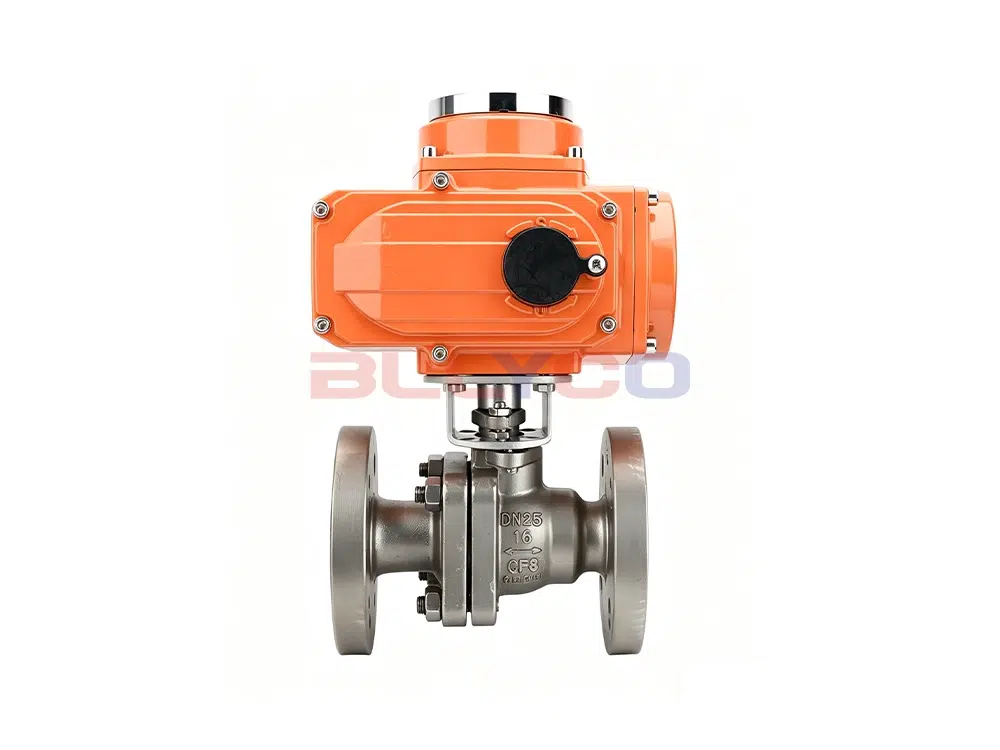

304 Stainless Steel Electric Hard-Seal Flanged Ball Valve Q941H-16P

Product Description

The Q941H Electric Hard-Seal Flanged Ball Valve is suitable for on/off and regulating applications. The ball valve is directly connected to the actuator. Electric metal-sealed ball valves are primarily suitable for operating conditions with temperatures ≤325℃. Electric metal-sealed ball valves are mainly divided into two sealing configurations: single-direction sealing and double-direction sealing. Single-direction sealing: Sealing is only effective in the specified direction, as indicated on the valve. Double-direction sealing: Sealing is effective in both directions. The structural types of electric hard-sealed ball valves include floating ball and fixed ball designs. Connection types include flanged, welded, and threaded connections. The electric actuator features a built-in servo system, eliminating the need for a separate servo amplifier. It can be controlled by inputting a 4–20 mA signal and connecting to a 220 V AC or 380 V AC power supply. Electric hard-seal ball valves offer advantages such as simple wiring, compact design, small dimensions, light weight, low resistance, and stable operation.

Product Features

1. The movable metal valve seat structure, which utilizes leaf spring preload, features a well-designed sealing force, ensuring smooth operation and reliable sealing.
2. Depending on user requirements, the design can be tailored to accommodate media containing solid particles or slurries, or to withstand higher temperatures.
3. The use of a bottom-mounted valve weld and a reverse seal design ensures a reliable seal at the packing area.

Product Specifications

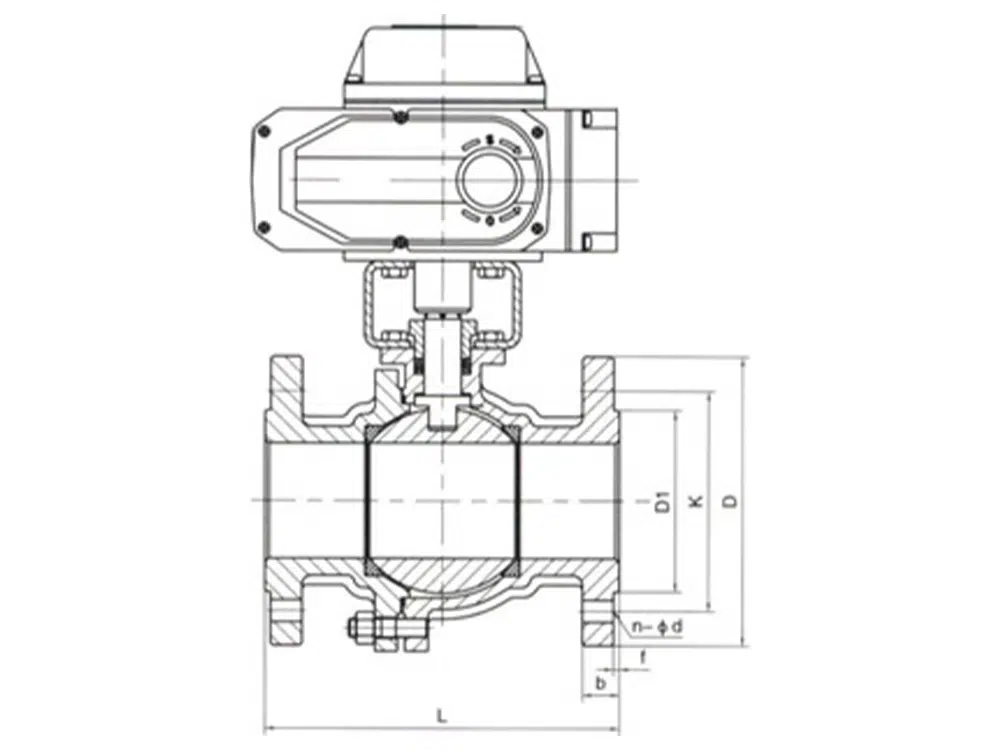

Product Size Guide
