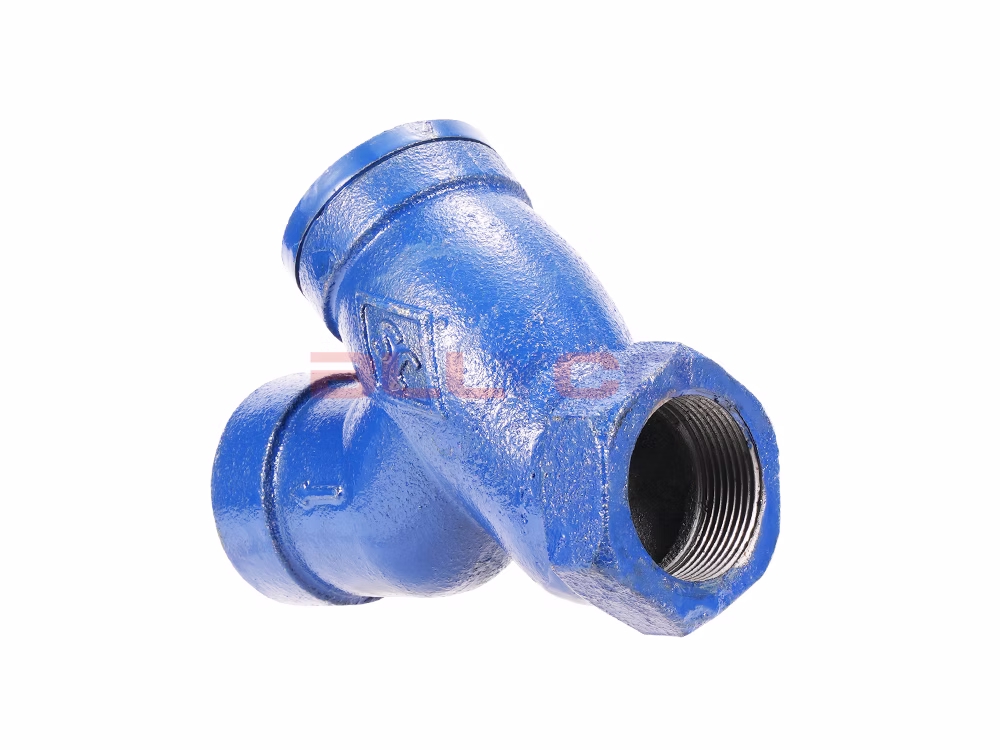

Product Description
A Y-Strainer is a device designed to remove mechanical impurities from water. It is used in hot and cold water lines for hot water heating, refrigeration and air conditioning systems, and various types of industrial process equipment, as well as in pipelines carrying corrosive media such as acids. It is particularly suitable for installation at the inlet and outlet of fan coil units to protect the equipment from erosion, wear, sediment buildup, and blockages, thereby ensuring normal operation and extending the equipment’s service life.
Product Features
The body of this strainer valve is made of cast iron, featuring a compact design, easy installation, and robust durability. The filter screen is constructed from 20-80 mesh stainless steel wire mesh, offering a large filtration area, low pressure drop, and strong contaminant removal capacity. It requires infrequent cleaning and is easy to maintain; no bypass pipe is needed. Cleaning can be performed as needed by closing the inlet and outlet valves, removing the filter element, clearing out the debris, and reinstalling it.
Product Specifications
Product Model | GL11H-16 |
Valve Body Material | Cast Iron |
Nominal Pressure | ≤1.6 MPa |
Applicable Media | Water, gas, oil, etc. |
Operating Temperature | ≤80℃ |

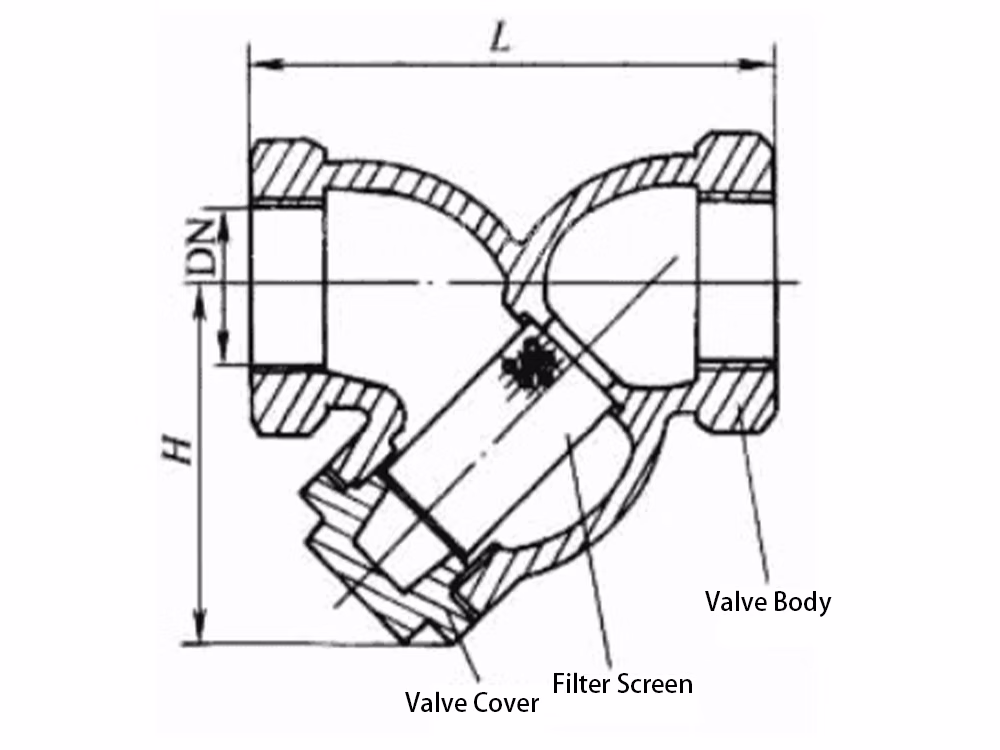

Product Size Guide
DN | Inch | L | H |
15 | 1/2 | 90 | 70 |
20 | 3/4 | 100 | 70 |
25 | 1 | 110 | 80 |
32 | 1-1/4 | 130 | 95 |
40 | 1-1/2 | 150 | 95 |
50 | 2 | 170 | 110 |
