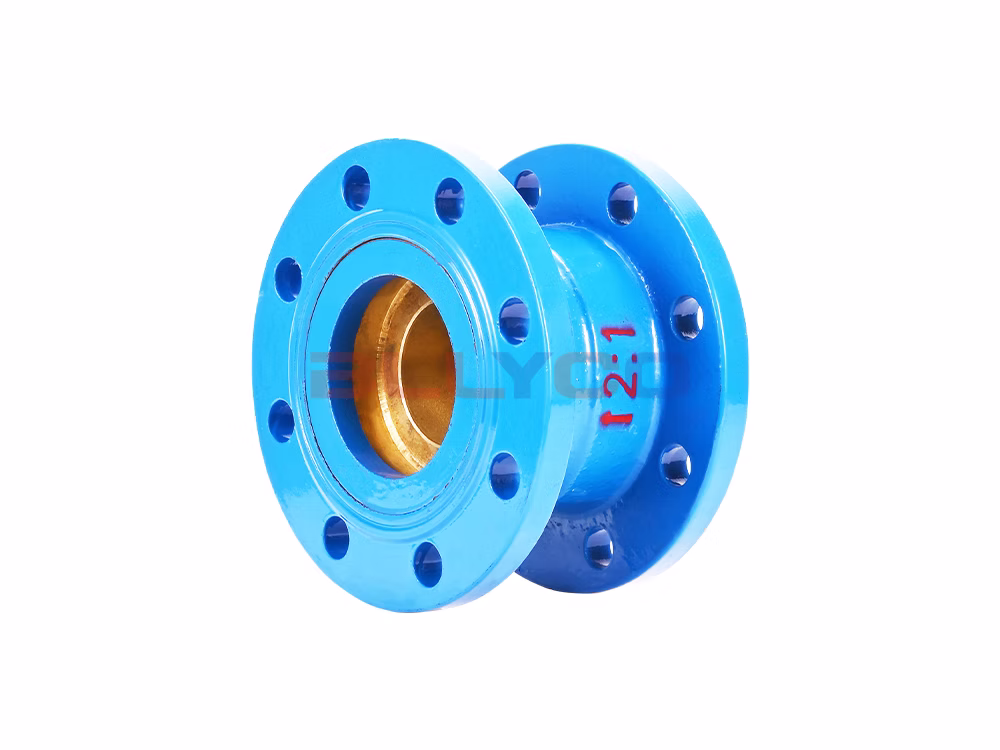

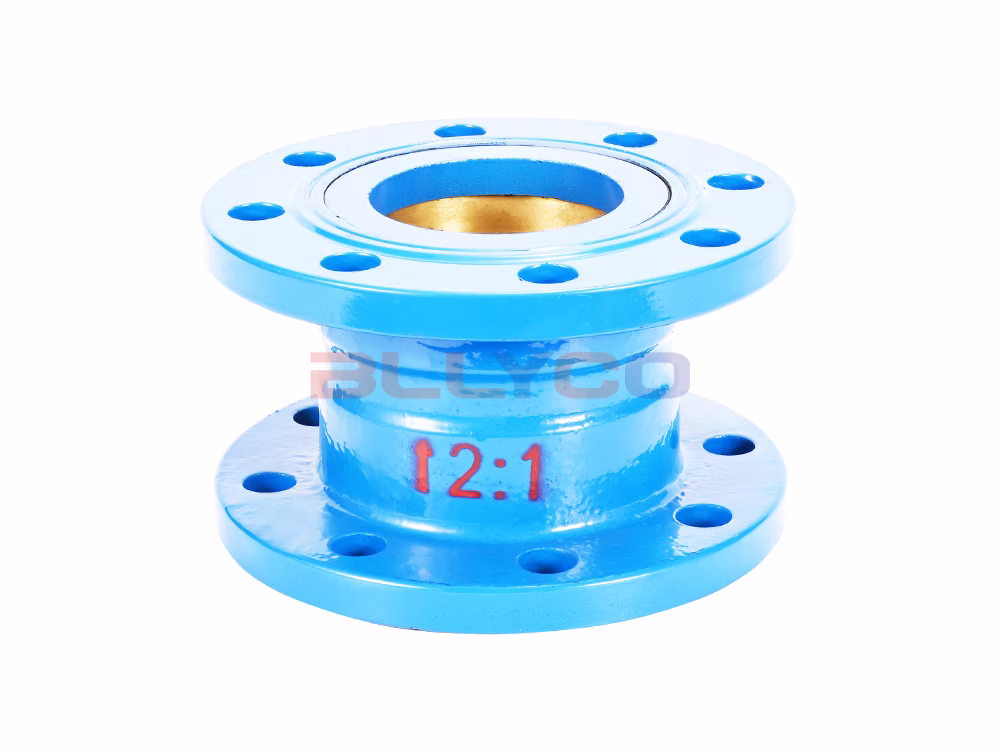

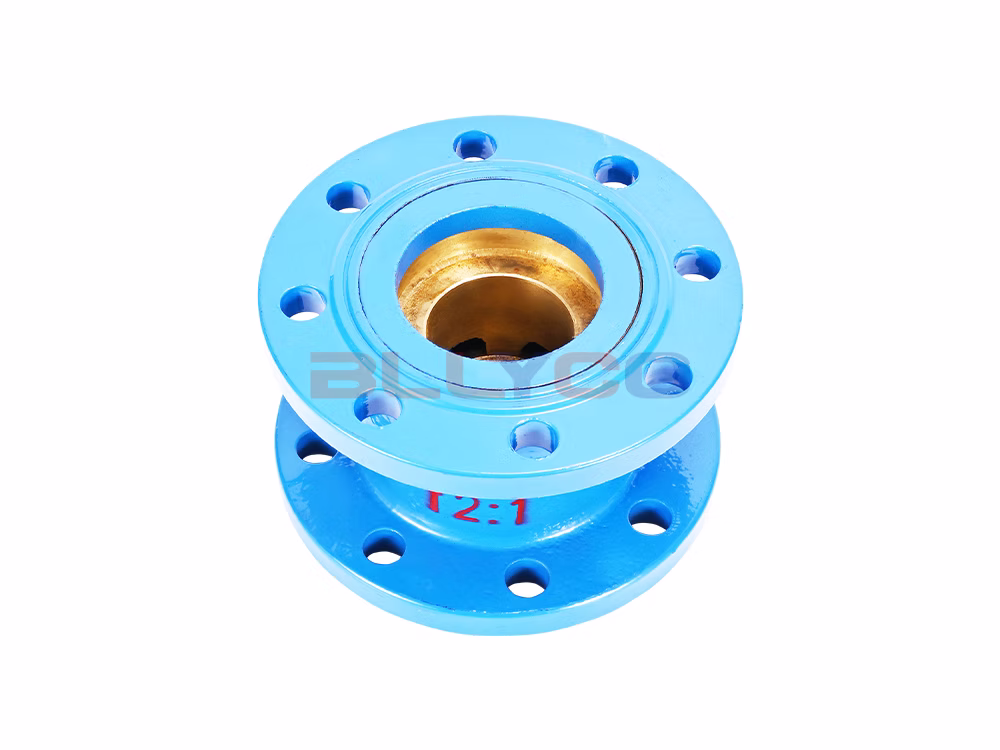

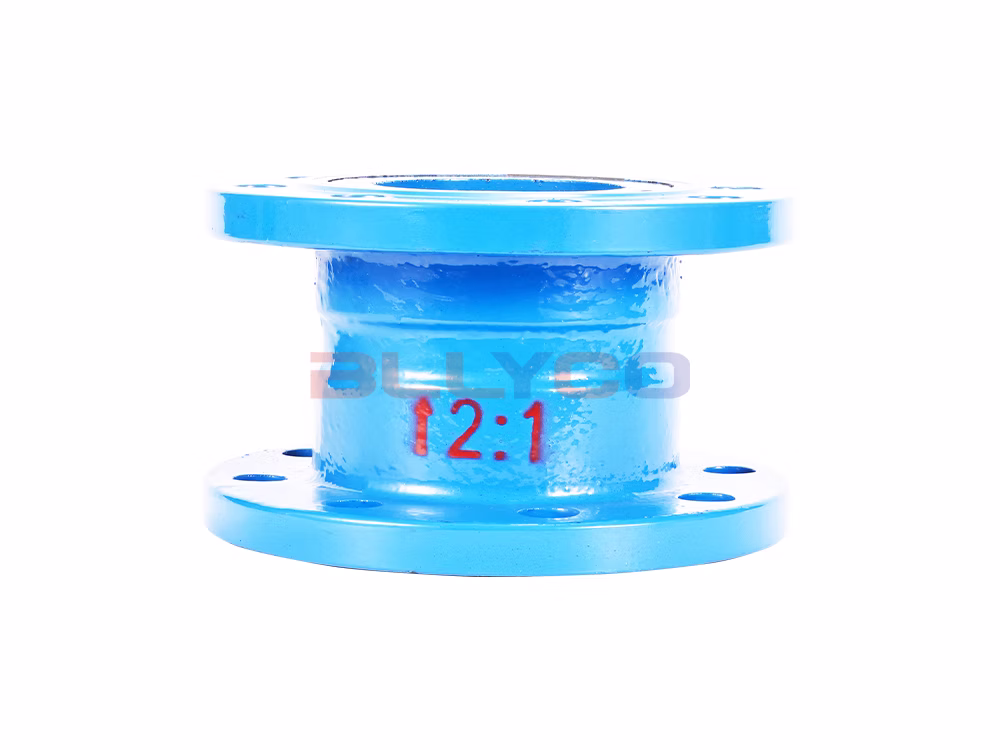

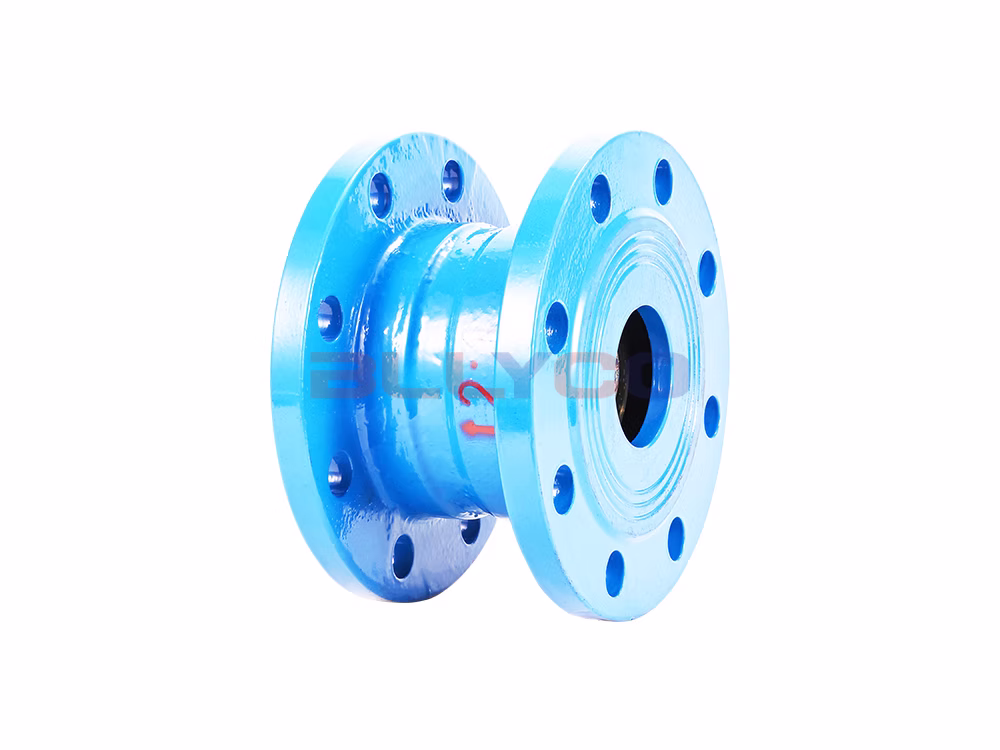

Ductile Iron Proportional Pressure Reducing Valve YB43X-16Q

Product Description

The YB43X proportional pressure reducing valve features an attractive design, reliable quality, accurate proportional control, and smooth operation; it reduces both dynamic and static pressure. This pressure reducing valve utilizes the pressure difference generated by the different load areas on either side of the piston inside the valve body to adjust the pressure downstream of the valve, thereby achieving pressure reduction. The pressure-reduction ratios for proportional pressure reducing valves include 2:1, 3:1, 4:1, 3:2, 5:2, and others; valves with special ratios can also be designed according to customer requirements.

Product Features

1. It uses hydraulic principles for control and adjustment and has a simple structure.
2. Accurate pressure reduction ratio and high flow capacity.
3. It reduces both dynamic pressure and static pressure.
4. Runs smoothly and quietly, with no vibration; reduces water hammer and protects the pipeline network.
5. Suitable for horizontal or vertical installation.
6. Lightweight, compact, and easy to install and maintain.

Product Specifications

Product Size Guide
