Name: 304 Stainless Steel Piston-Type Pressure Reducing Valve Y13X-16P
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: 304 Stainless Steel Piston-Type Pressure Reducing Valve Y13X-16P

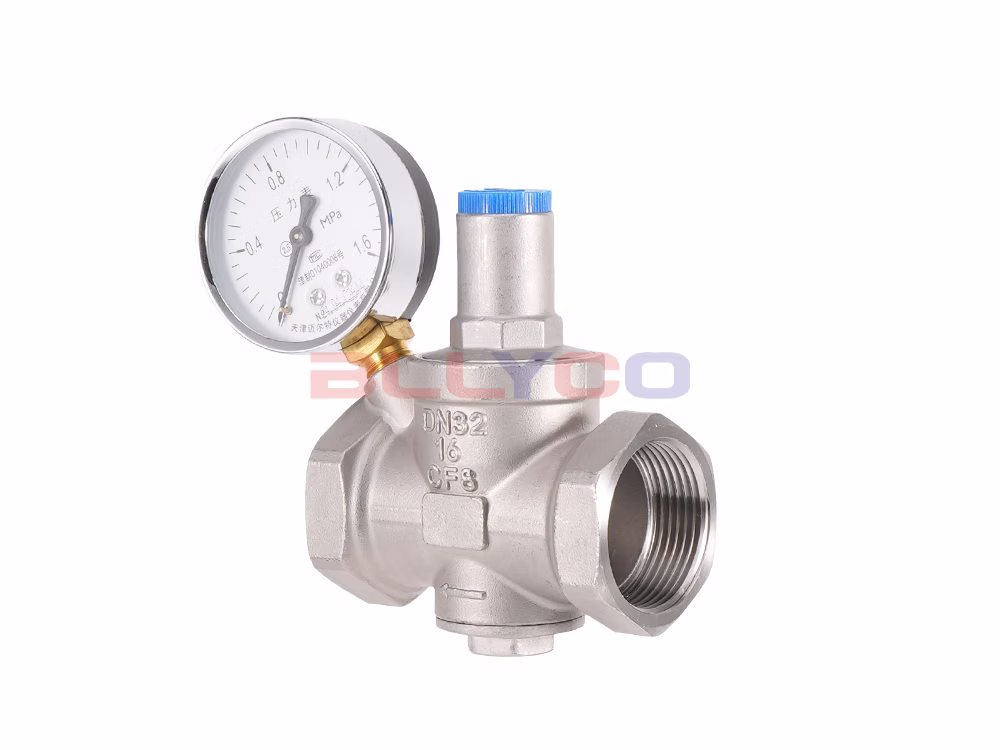

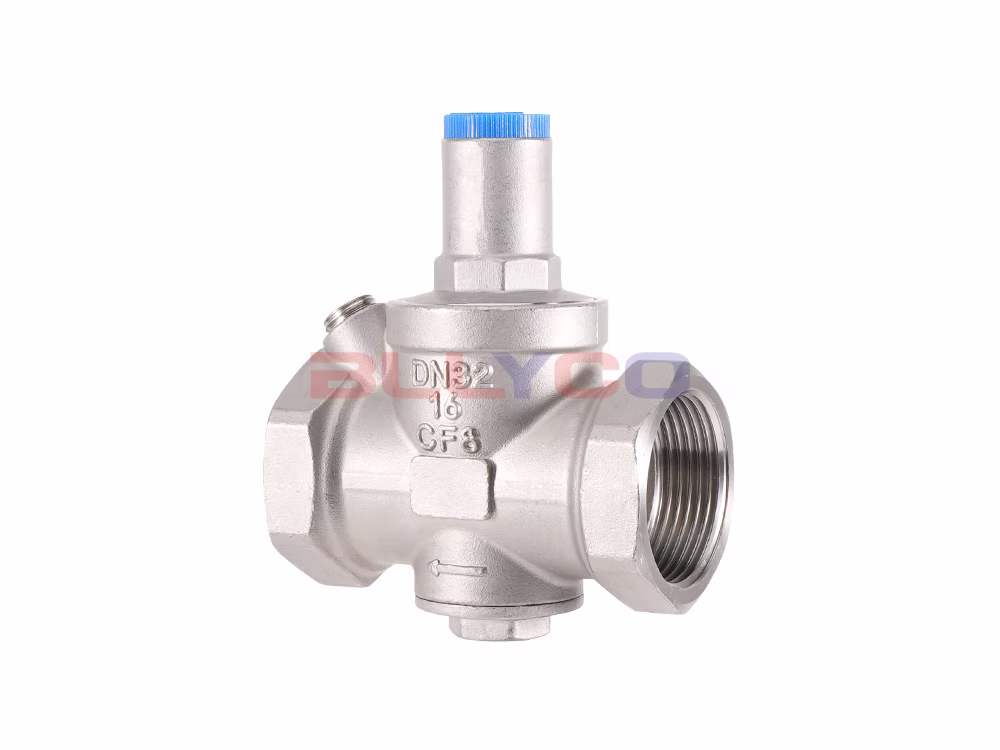

304 Stainless Steel Piston-Type Pressure Reducing Valve Y13X-16P

Product Model: Y13X-16P
Valve Body Material: 304 Stainless Steel
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, etc.
Operating Temperature: ≤80℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Send InquiryChat Now

Product Description

The 304 stainless steel piston-type pressure reducing valve regulates the flow of the medium by adjusting the opening of the shut-off element inside the valve body, thereby reducing the medium's pressure. The pressure reducing valve also uses the pressure downstream of the valve to adjust the opening of the shut-off element, maintaining the downstream pressure within a specific range. Even when the inlet pressure fluctuates, the 304 stainless steel piston-type pressure reducing valve keeps the outlet pressure within the set range, thereby protecting the domestic and industrial equipment downstream.

Product Specifications

Product Model	Y13X-16P
Valve Body Material	304 Stainless Steel
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, etc.
Operating Temperature	≤80℃

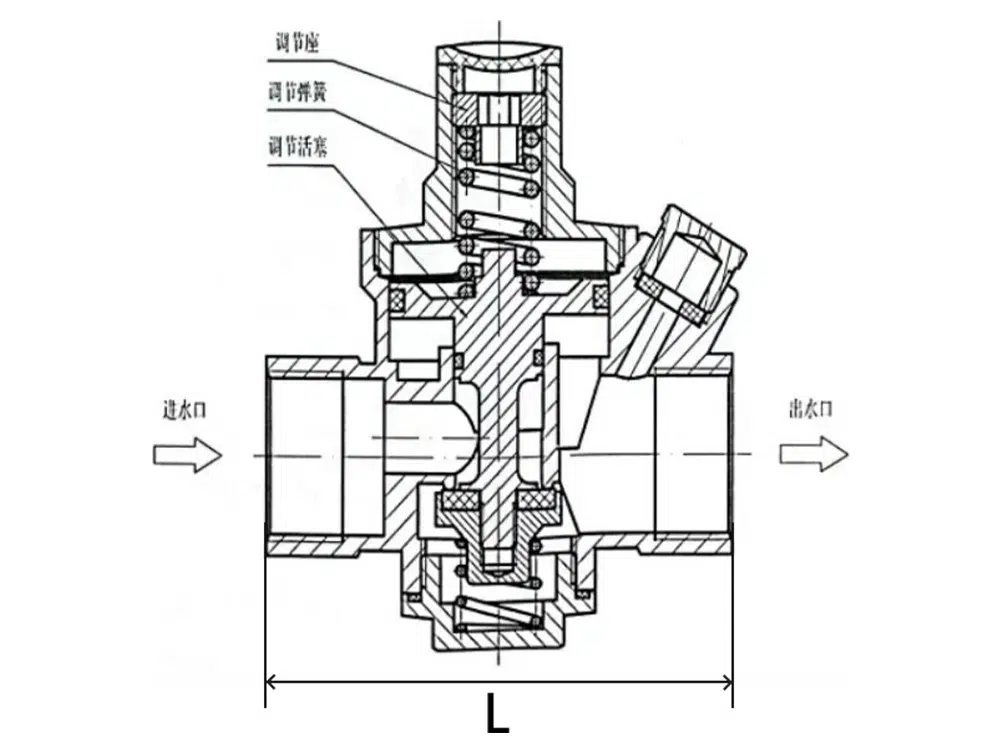

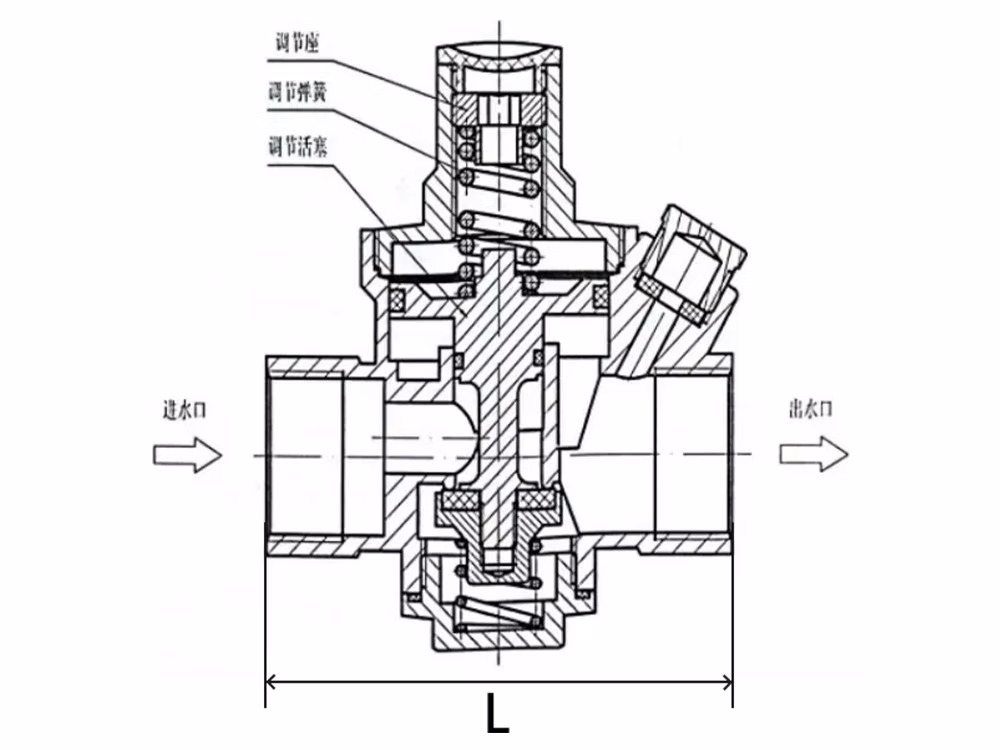

Product Size Guide

Nominal Diameter	Inch	L
DN15	1/2	73
DN20	3/4	79
DN25	1	79
DN32	1-1/4	91
DN40	1-1/2	105
DN50	2	114
