Product Description

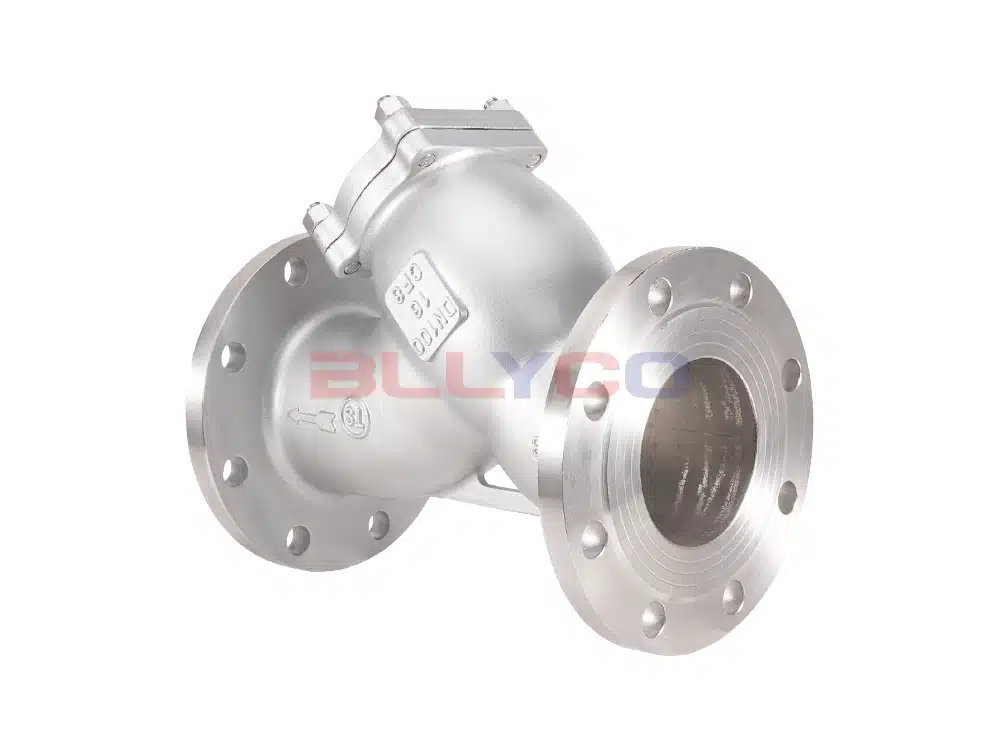

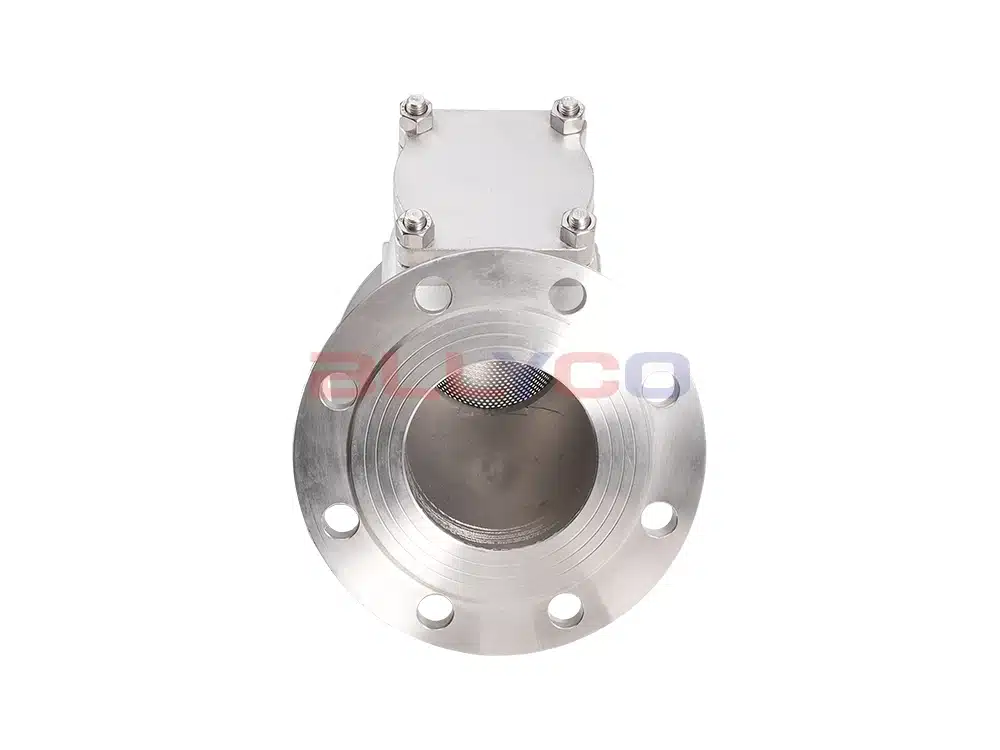

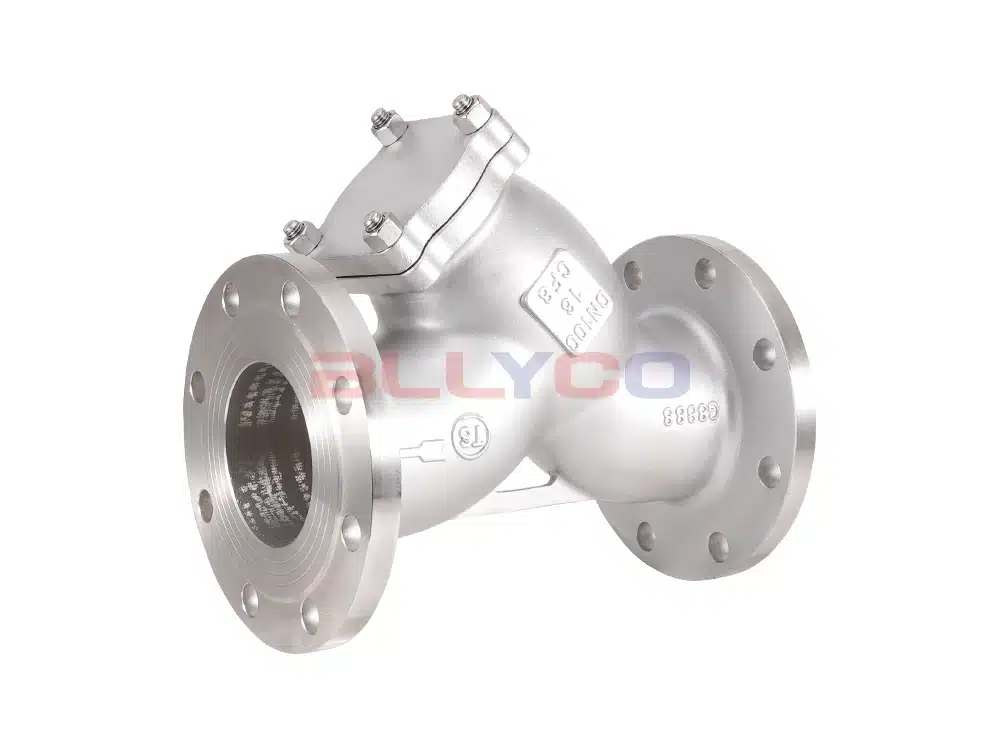

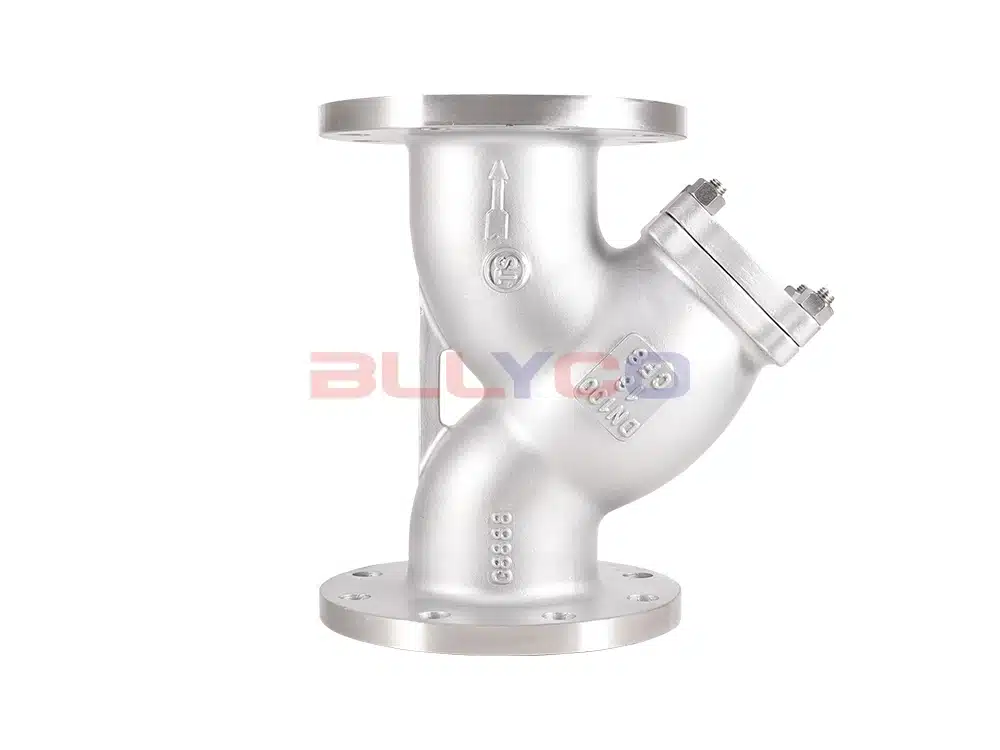

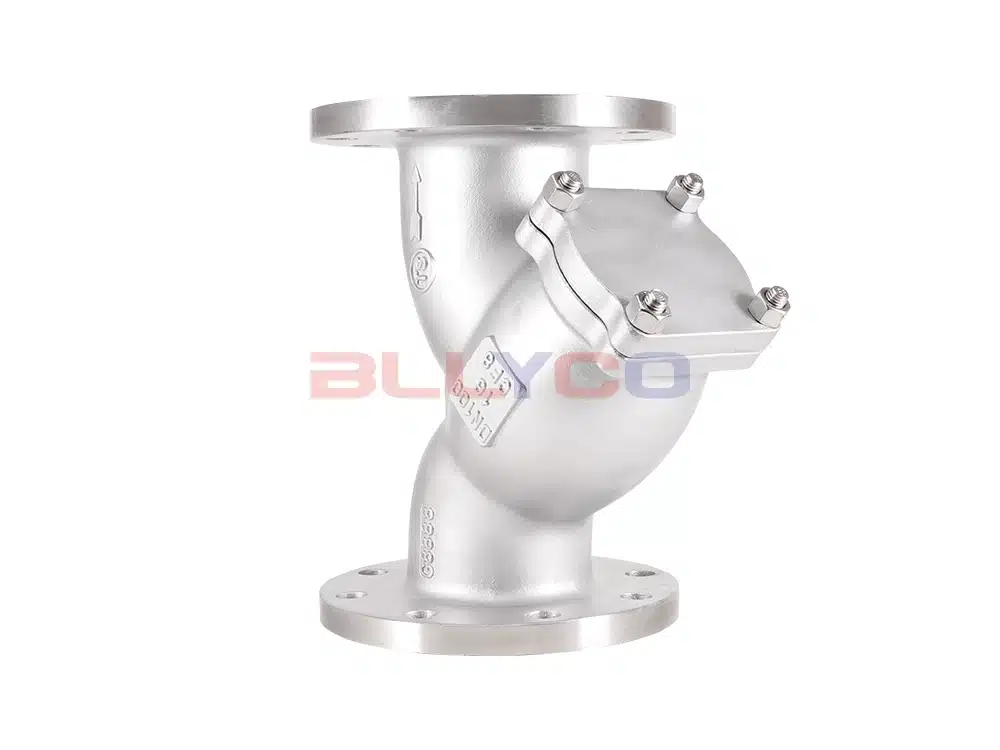

The GL41W-16P Stainless Steel Flanged Y-Strainer is an essential component in piping systems for conveying media. It is typically installed at the inlet of pressure reducing valves, relief valves, water control valves, or other equipment to remove impurities from the medium and ensure the proper operation of valves and equipment. This strainer features an advanced design, low pressure drop, and convenient drainage. It is applicable for water, oil, and gas. Strainers can be customized according to user requirements, while maintaining the same basic Y-type configuration. Internal components are made of stainless steel, ensuring robustness and durability. When cleaning is required, simply remove the detachable filter cartridge, remove the trapped impurities, and reinstall it—making operation and maintenance extremely convenient. This strainer features a compact design, fine mesh, low pressure drop, high efficiency, easy installation and maintenance, low cost, and quick drainage.
Product Specifications
Product Model | GL41W-16P |
Valve Body Material | 304 Stainless Steel |
Nominal Pressure | ≤1.6 MPa |
Applicable Media | Water, steam, oil, etc. |
Operating Temperature | ≤150℃ |

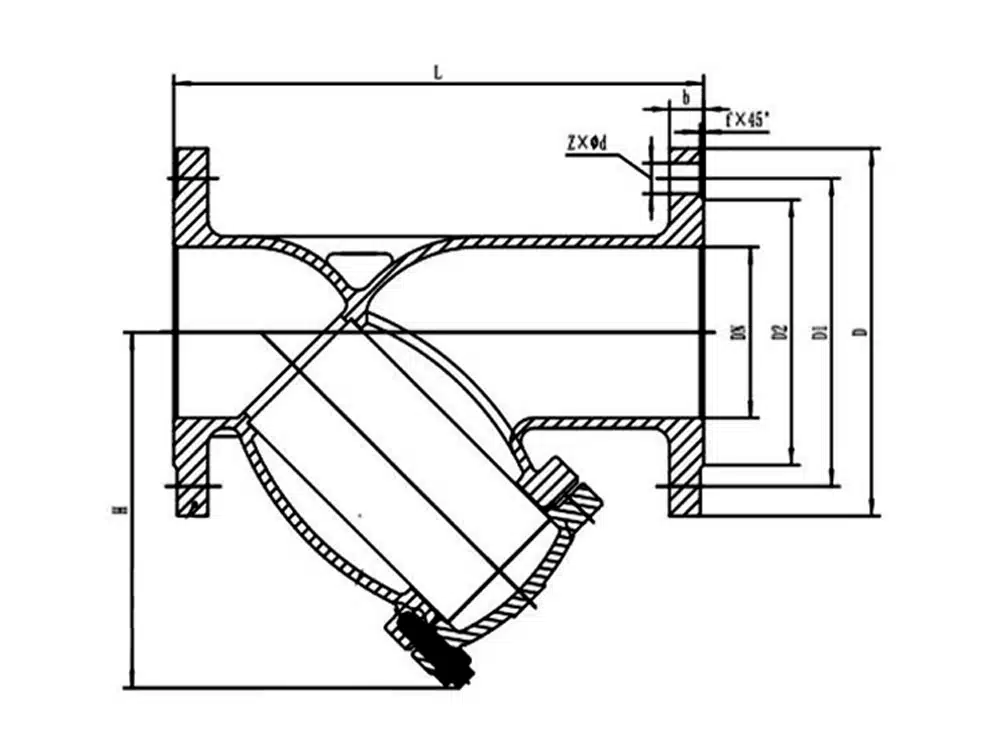

Product Size Guide
Nominal Diameter | L | D | D1 | D2 | b-f | Z-φd | H |
DN15 | 130 | 95 | 65 | 45 | 14-2 | 4-14 | 56 |
DN20 | 140 | 105 | 75 | 55 | 14-2 | 4-14 | 65 |
DN25 | 150 | 115 | 85 | 65 | 14-2 | 4-14 | 80 |
DN32 | 180 | 135 | 100 | 78 | 16-2 | 4-18 | 87 |
DN40 | 200 | 145 | 110 | 85 | 16-2 | 4-18 | 103 |
DN50 | 220 | 160 | 125 | 100 | 16-2 | 4-18 | 112 |
DN65 | 250 | 180 | 145 | 120 | 18-3 | 4-18 | 163 |
DN80 | 280 | 195 | 160 | 135 | 20-3 | 8-18 | 189 |
DN100 | 300 | 215 | 180 | 155 | 20-3 | 8-18 | 212 |
DN125 | 340 | 245 | 210 | 185 | 22-3 | 8-18 | 238 |
DN150 | 380 | 280 | 240 | 210 | 24-3 | 8-23 | 272 |
DN200 | 460 | 340 | 295 | 266 | 24-2 | 12-22 | 332 |
DN250 | 560 | 405 | 355 | 319 | 26-2 | 12-26 | 397 |
DN300 | 590 | 460 | 410 | 370 | 28-2 | 12-26 | 490 |
DN350 | 690 | 520 | 470 | 429 | 30-2 | 16-26 | 546 |
DN400 | 780 | 580 | 525 | 480 | 32-2 | 16-30 | 622 |
