Ductile Iron Grooved Fixed-Ratio Pressure Reducing Valve YB83X-16Q

Product Description

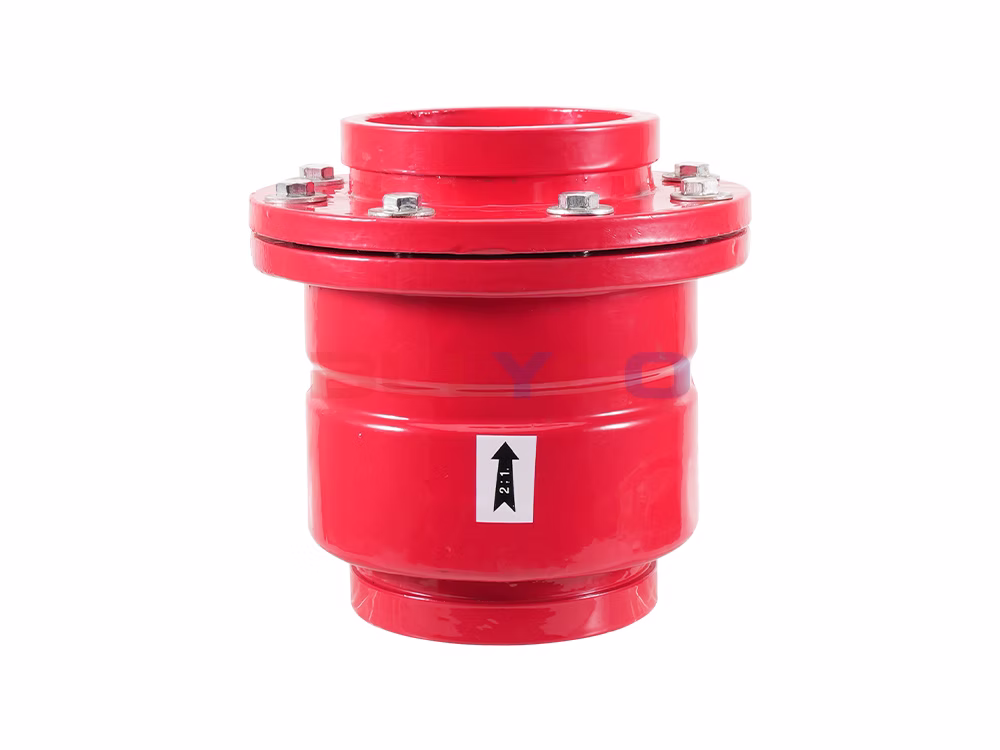

YB83X fixed-ratio pressure reducing valve: Grooved connection, piston-type design, with a rubber seat sealing surface; nominal pressure PN10–PN16. The fixed-ratio pressure reducing valve consists of a valve body, inlet gland, piston, outlet gland, O-rings, sealing gaskets, and other components. Proportional pressure reducing valves are typically selected to ensure that the design flow rate falls within the linear segment of the flow-pressure characteristic curve, thereby maintaining a proportional relationship between the pressure downstream and upstream of the valve. These valves feature a precise and innovative design, smooth operation, a compact and lightweight construction that facilitates installation, and a stable pressure-reduction ratio—effectively reducing both "dynamic pressure" and "static pressure." When the valve body and valve core are made of stainless steel, they are suitable for use with clean water and gases.

Product Features

Features of the YB83X fixed-ratio pressure reducing valve: Attractive appearance, reliable quality, accurate ratio, smooth operation, and the ability to reduce both dynamic and static pressure. This valve utilizes the pressure difference generated by the different load areas on either side of the piston inside the valve body to adjust the pressure downstream of the valve, thereby achieving pressure reduction. The pressure-reducing ratios available for these pressure reducing valves include (2:1), (3:1), (4:1), (3:2), (5:2), and others. Pressure reducing valves with custom ratios can also be designed according to customer requirements.

How It Works

When water flow ceases in the downstream pipeline, the pressure behind the piston increases, causing the piston in the pressure reducing valve to lose its equilibrium and move forward, thereby closing the valve. When there is no water consumption in the downstream pipeline network, the valve is closed, and the pressure ratio between the upstream and downstream sides of the valve is a constant value; when a fire hydrant or sprinkler is activated in the downstream pipeline network, the upstream pressure exceeds the downstream pressure, causing the piston to move backward and opening the pressure reducing valve. The pressure in the downstream pipeline network decreases as the flow rate increases (in accordance with the flow-pressure characteristic curve) until an equilibrium position is reached, at which point the piston stops moving. The YB83X fixed proportional pressure reducing valve utilizes the pressure difference created by the different cross-sectional areas at both ends of the floating piston inside the valve to alter the pressure conditions between the inlet and outlet, thereby achieving pressure reduction.

Performance Features

1. It uses hydraulic principles for control and adjustment and has a simple structure.
2. Accurate pressure reduction ratio and high flow capacity.
3. It reduces both dynamic pressure and static pressure.
4. Operates smoothly and quietly, with no vibration; reduces water hammer and protects the pipeline network.
5. Suitable for installation at any angle.
6. Lightweight, compact, and easy to install and maintain.

Product Specifications

Product Size Guide
