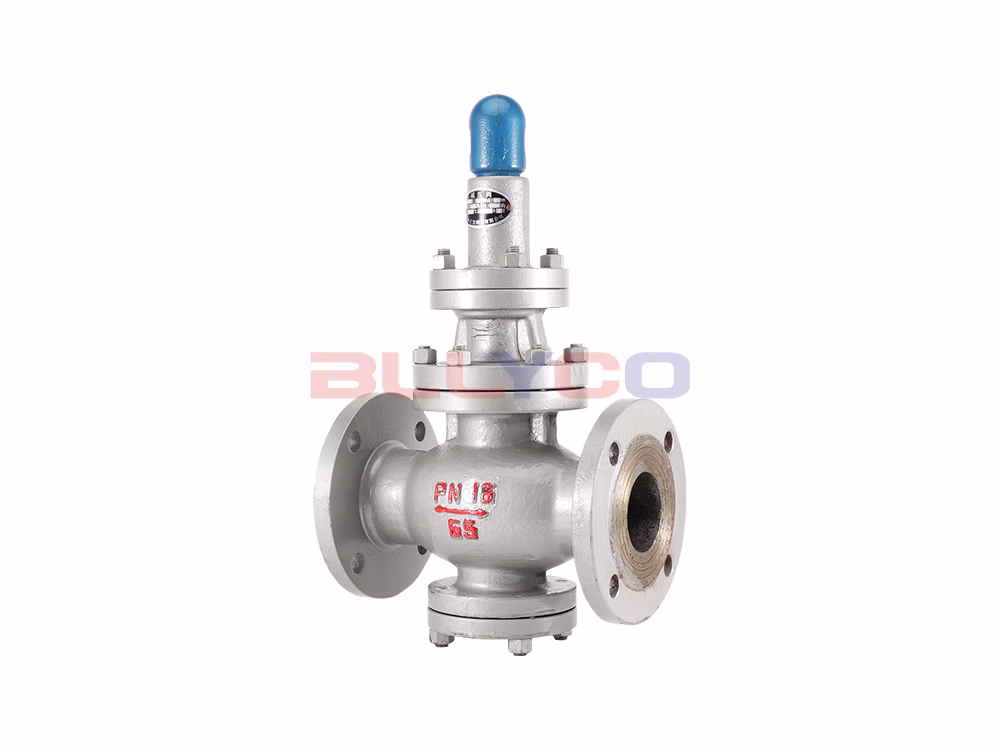

Cast Steel Steam Pressure Reducing Valve Y43H-16C

Product Description

The Y43H steam pressure reducing valve sets the outlet pressure by adjusting the spring pressure. It uses a diaphragm to sense changes in outlet pressure, and the pilot valve opens and closes to drive the piston, thereby regulating the flow area at the main valve's throttling section to achieve pressure reduction and stabilization. This product is primarily used in steam piping systems to reduce and stabilize pressure.

Product Features

This pressure reducing valve is a pilot-operated piston-type pressure reducing valve consisting of a main valve and a pilot valve. The main valve primarily consists of components such as the valve seat, main valve disc, piston, and spring-loaded spring. The pilot valve mainly consists of a valve seat, valve disc, diaphragm, spring, and adjustment spring. This product represents a significant improvement over standard pressure reducing valves, featuring an enlarged piston area, a modified throttling structure, an updated sealing design, and an increased flow area, among other enhancements. These improvements have substantially enhanced performance in terms of sensitivity, flow rate, and service life.

Product Specifications

Product Size Guide
