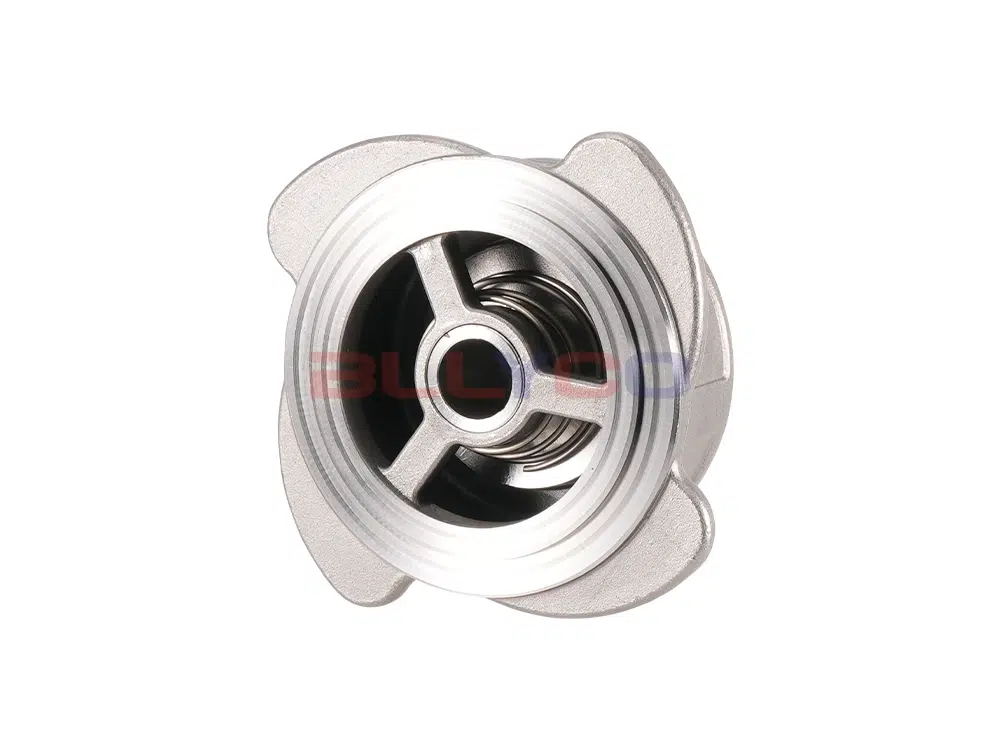

304 Stainless Steel 4-Lug Wafer Check Valve H71X-25P

Product Description

The H71X-25P 4-lug wafer check valve consists of a valve body, valve disc, spring, and other components. It is designed to prevent backflow of the medium and can be installed horizontally or vertically in piping systems. This valve features a compact design, small footprint, rapid disc closure, low water hammer pressure, low fluid resistance, responsive operation, and excellent sealing performance. This product utilizes a wafer-type connection, making it particularly suitable for applications with limited installation space. It is widely used in the petroleum, chemical, rubber, and paper industries, and is especially suitable for steam boilers and thermal oil systems.

Product Features

1. It has a short structural length, compact size, and light weight.
2. The valve disc closes quickly, and the water pressure is low.
3. It can be used with both horizontal and vertical pipes and is easy to install.
4. The flow path is unobstructed, resulting in low flow resistance.
5. Responsive operation and excellent sealing performance.
6. The valve disc has a short stroke, and the closing impact force is low.
7. The overall structure is simple and compact, with an attractive design.

Product Specifications

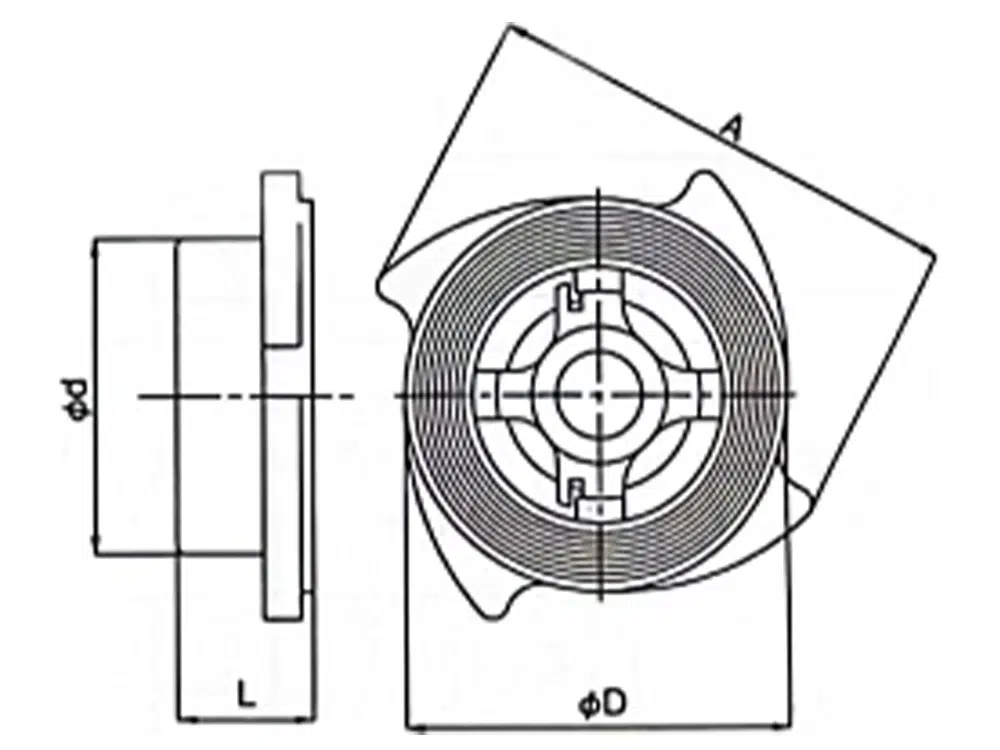

Product Size Guide

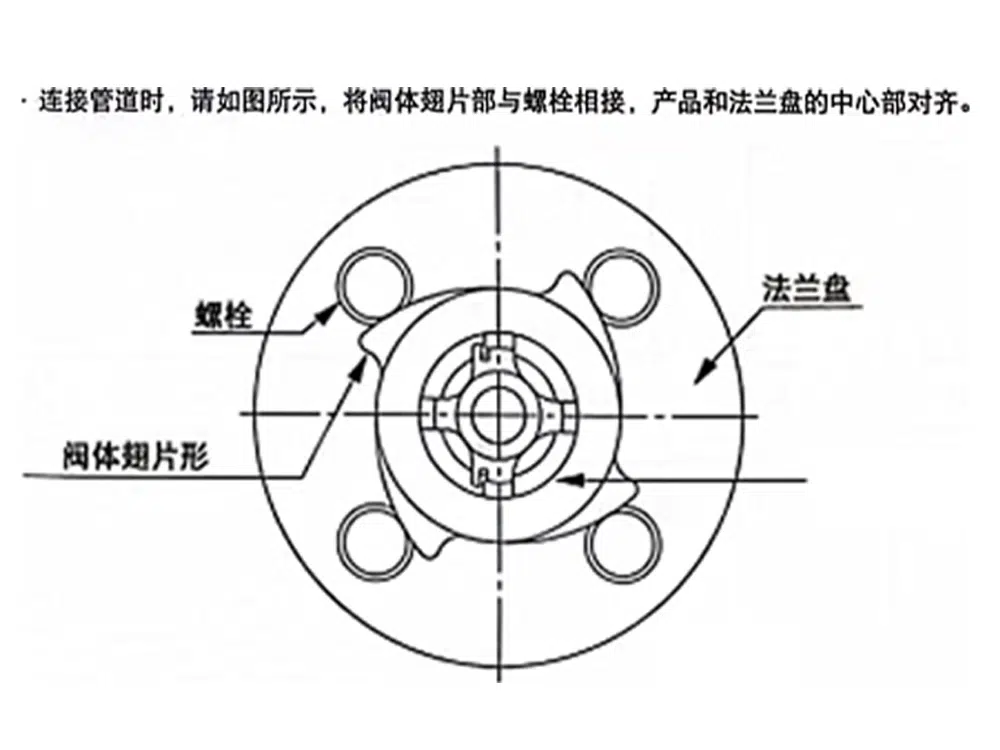

Installation Diagram
