Product Description

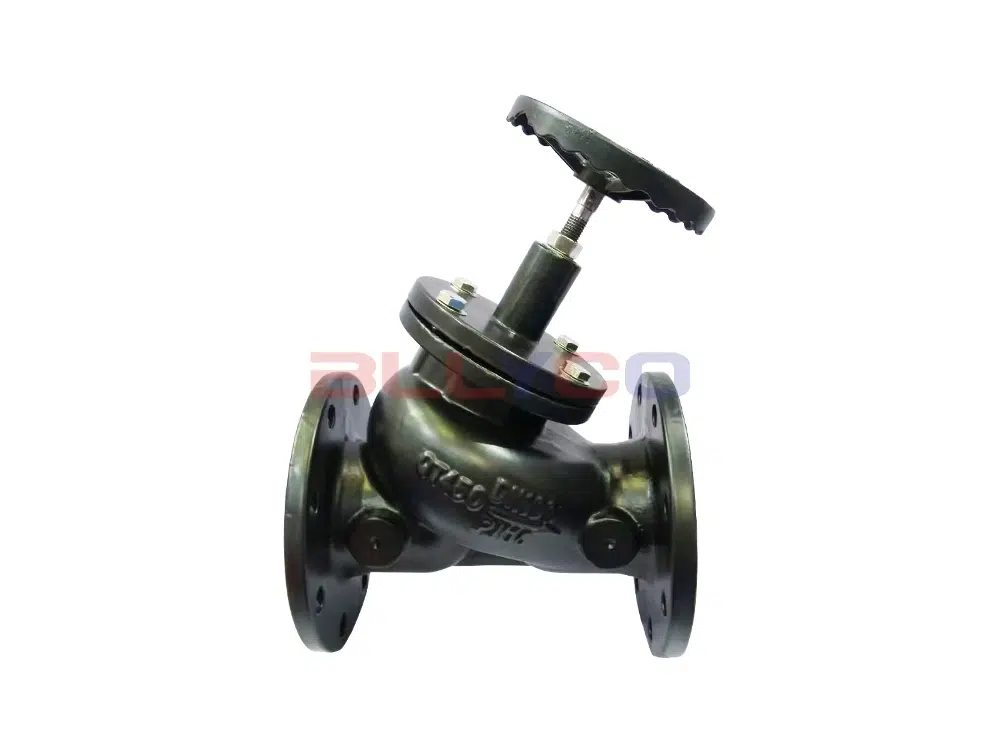

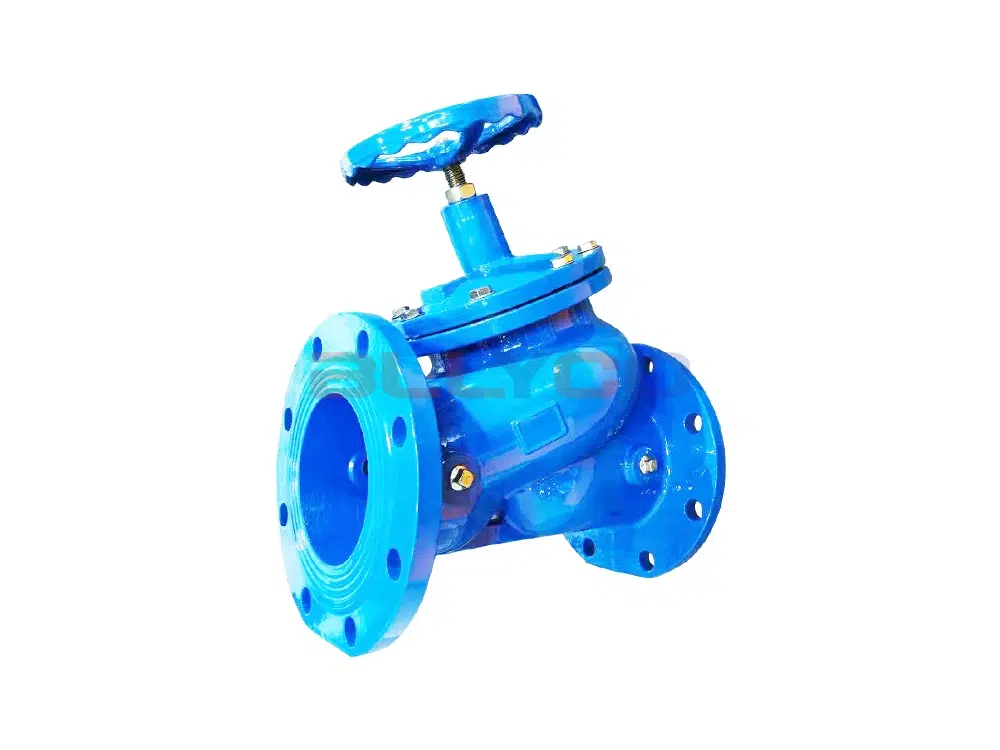

The JHL-Type Multifunctional 3-in-1 Check Valve consists of components such as a valve seat, valve stem, spring, disc, and guide sleeve housed within the valve body. This check valve performs three functions: shutoff, check, and throttling. It is primarily used at the outlet of water pumps or in other pipelines to prevent backflow of liquids. It effectively prevents water hammer and noise generated by backflow in conventional check valves, making it an upgraded replacement for traditional check valves. Equipped with a quick-closing spring, it utilizes the quick-closing principle to prevent water hammer, stop backflow of the medium, and achieve silent closure. It is fitted with an opening indicator; by adjusting the opening, the pump’s output can be regulated. When the valve stem is closed, it functions as a globe valve.
Product Features
- A single valve can effectively perform three functions: check valve, globe valve, and throttle valve.
- When the pump stops running, the spring force closes the valve disc first, thereby preventing water hammer.
- The pump's output can be adjusted by changing the valve opening.
- Equipped with an indicator, the valve's opening position can be visually confirmed.
- The gasket is made of rubber, so it won't leak and can also absorb impact.
- The springs are made of stainless steel, which gives them excellent corrosion resistance.
- The valve body has a streamlined shape and design, resulting in minimal pressure drop.
- It can be installed in a variety of ways, on both horizontal and vertical pipes.
Applications
The JHL multifunctional 3-in-1 check valve is used in general buildings, apartment complexes, and factories for water supply and drainage, hot and cold water treatment, boiler condensate systems, and at the pump outlet of secondary water supply pipelines. It is designed to prevent backflow of the medium within the pipeline caused by pump shutdown.
Product Specifications
Product Model | JHL-16Q |
Valve Body Material | Ductile Iron |
Nominal Pressure | ≤1.6 MPa |
Applicable Media | Water, etc. |
Operating Temperature | ≤80℃ |
Product Size Guide

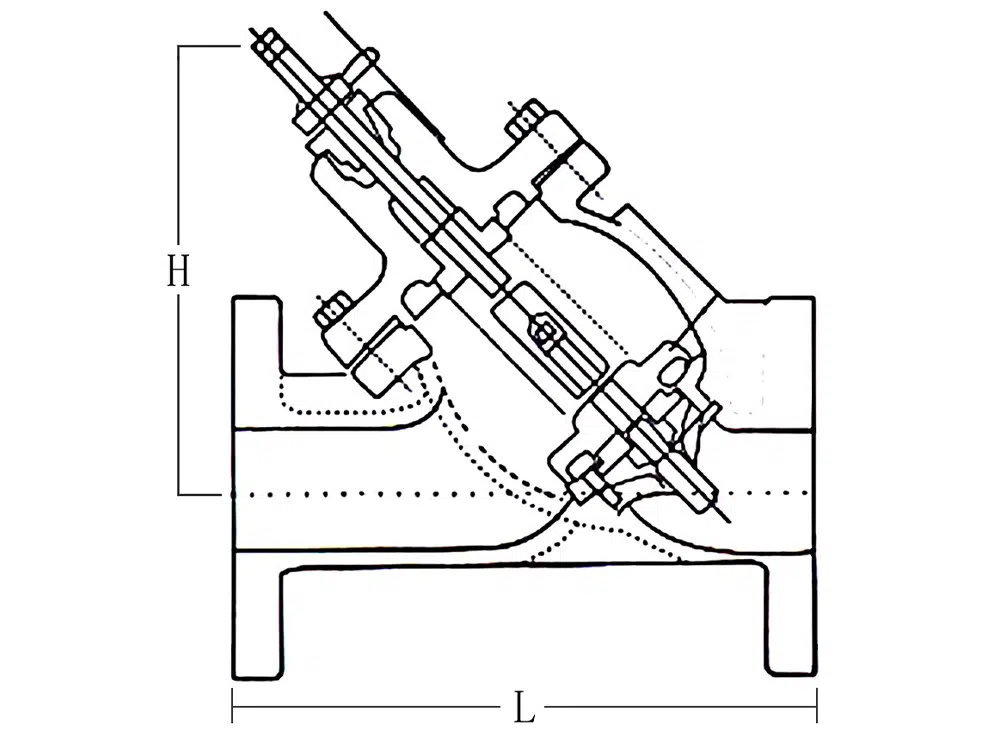

Nominal Diameter | L | H | Bolt Hole Center-to-Center Distance | Number of Bolt Holes * Diameter |
DN50 | 235 | 210 | 125 | 4*18 |
DN65 | 250 | 250 | 145 | 4*18 |
DN80 | 275 | 297 | 160 | 8*18 |
DN100 | 275 | 320 | 180 | 8*18 |
DN125 | 325 | 380 | 210 | 8*18 |
DN150 | 375 | 420 | 240 | 8*23 |
DN200 | 430 | 500 | 295 | 12*23 |
DN250 | 490 | 680 | 355 | 12*25 |
DN300 | 565 | 730 | 410 | 12*25 |
DN350 | 655 | 830 | 470 | 16*25 |
