Product Description

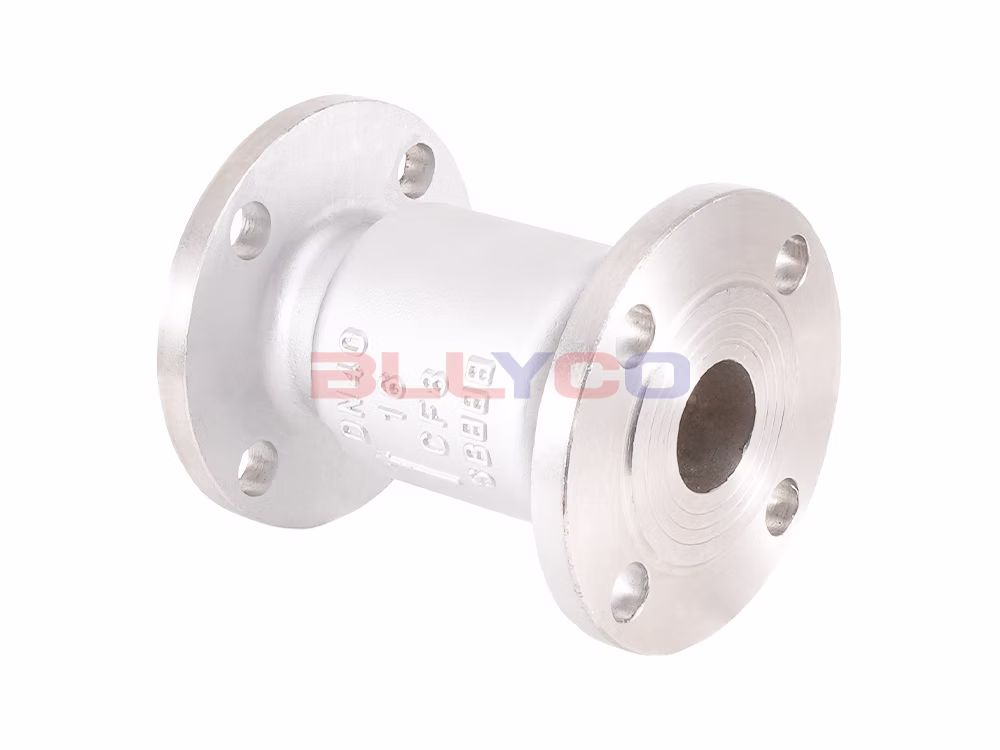

The H42W Stainless Steel Vertical Check Valve is a valve in which the disc slides along the centerline of the valve body. Vertical check valves for pipelines are a relatively new type of valve characterized by a simple structure, few components, and light weight. They offer good machinability and represent one of the future directions for check valve development. However, their fluid resistance coefficient is slightly higher than that of swing check valves. Vertical check valves are widely used in pipelines across various industries—including petroleum, chemical, pharmaceutical, and power—where backflow of the medium must be prevented.
How It Works
The H42W series vertical check valves prevent backflow of the medium, serving as a check valve. The H42W stainless steel vertical check valve remains open when the pressure of the medium at the inlet is higher than that at the outlet. This is because the pressure of the medium at the inlet pushes the valve disc open, causing the valve to open automatically. When the pressure of the medium at the inlet is lower than that at the outlet, the spring pushes the valve disc against the seat, closing the valve.
Product Specifications
Product Model | H42W-16P |
Valve Body Material | 304 Stainless Steel |
Nominal Pressure | ≤1.6 MPa |
Applicable Media | Water, steam, oil, etc. |
Operating Temperature | ≤150℃ |
Product Size Guide
Nominal Diameter | L | D | D1 | D2 | b-f | Z-φd |
DN15 | 85 | 95 | 65 | 45 | 14-2 | 4-14 |
DN20 | 95 | 105 | 75 | 55 | 14-2 | 4-14 |
DN25 | 105 | 115 | 85 | 65 | 14-2 | 4-14 |
DN32 | 150 | 135 | 100 | 78 | 16-2 | 4-18 |
DN40 | 160 | 145 | 110 | 85 | 16-3 | 4-18 |
DN50 | 170 | 155 | 125 | 102 | 16-3 | 4-18 |
DN65 | 180 | 173 | 145 | 122 | 18-3 | 4-18 |
DN80 | 200 | 190 | 160 | 138 | 20-3 | 8-18 |
DN100 | 210 | 210 | 180 | 158 | 20-3 | 8-18 |
DN125 | 275 | 240 | 210 | 188 | 22-3 | 8-18 |
DN150 | 300 | 280 | 240 | 212 | 24-3 | 8-22 |
DN200 | 380 | 330 | 295 | 268 | 26-3 | 12-22 |
