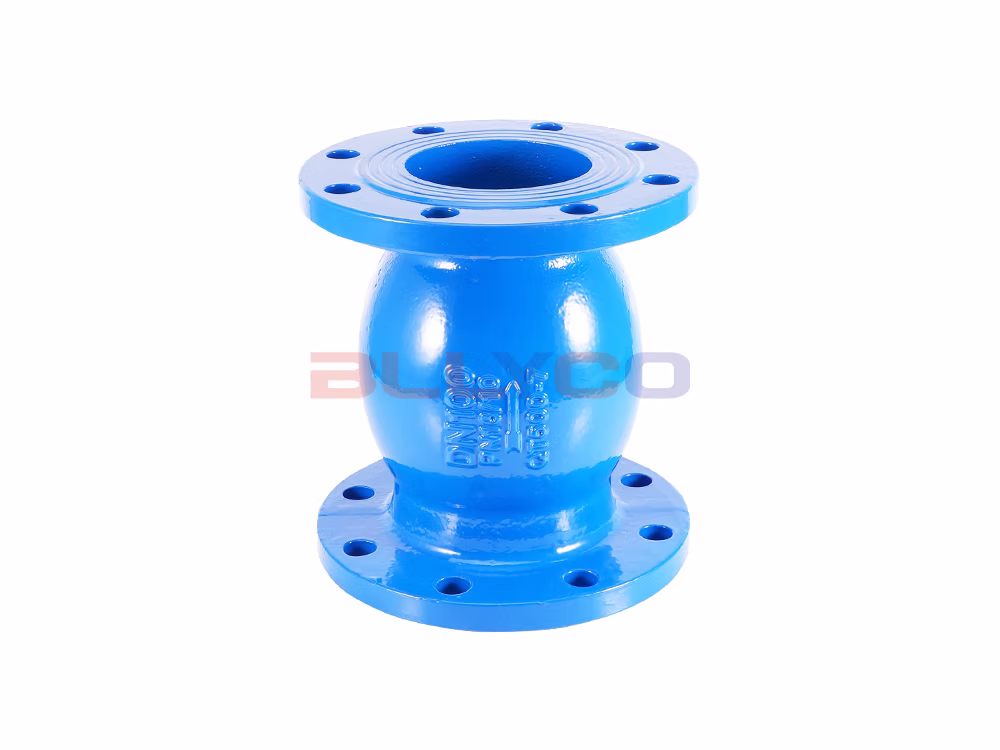

Ductile Iron Vertical Ball Check Valve HQ44X-16Q

Product Description

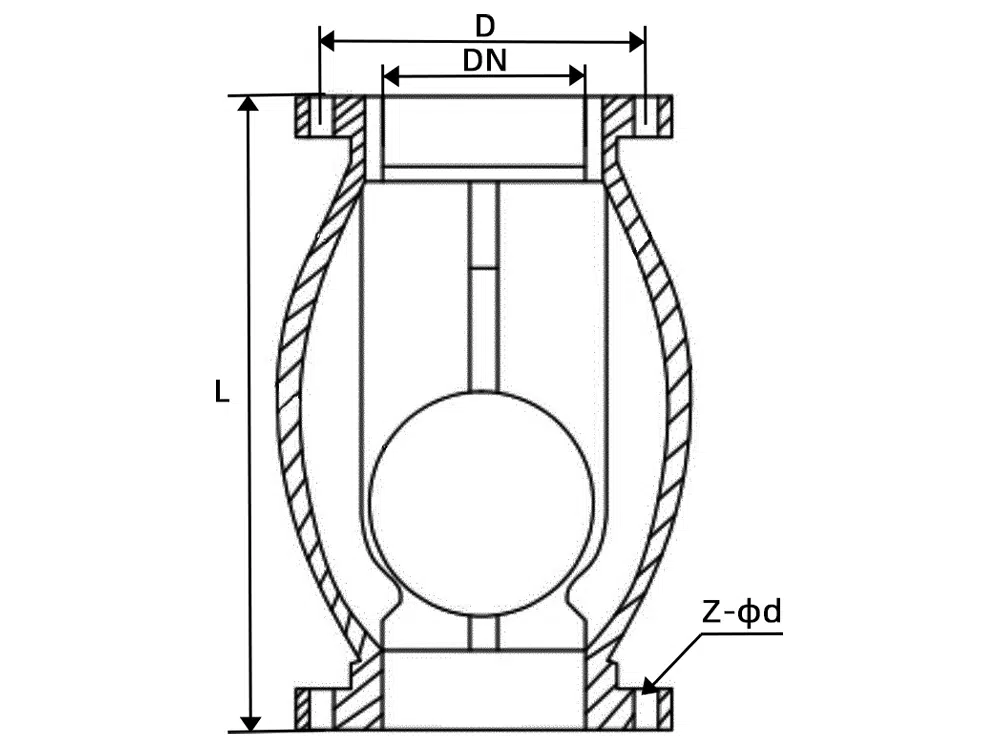

The HQ44X-16Q vertical ball check valve consists of a valve body, a ball, and a baffle, among other components. It features a rubber-coated rolling ball as the valve disc, which, under the force of the medium, rolls up, down, left, and right along the integral slideway inside the valve body to open or close the valve. It features a silencing check valve that prevents water hammer, provides excellent sealing performance, minimizes head loss, and can be installed horizontally or vertically. It is widely used at the outlets of pumps in cold water, hot water, industrial, and domestic water distribution systems to prevent backflow of the medium.

Product Specifications

Product Size Guide
