Name: Cast Iron Swing Check Valve H14T-16
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Iron Swing Check Valve H14T-16

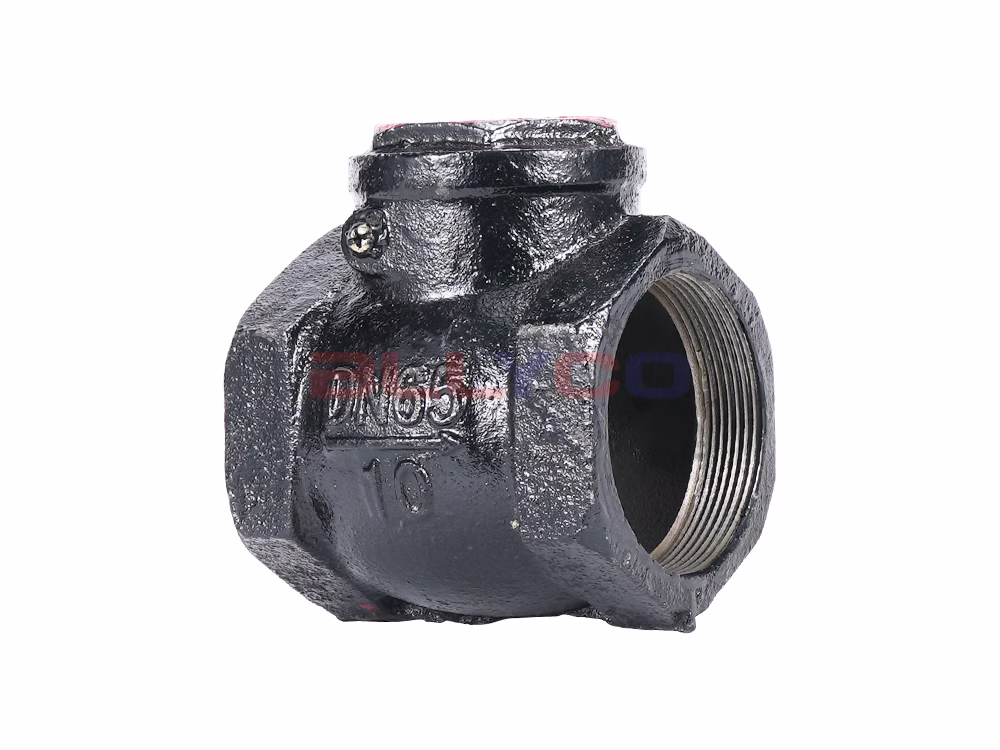

Cast Iron Swing Check Valve H14T-16

Product Model: H14T-16
Valve Body Material: Cast Iron
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, etc.
Operating Temperature: ≤80℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Send InquiryChat Now

Product Description

The H14T-16 swing check valve, also known as an internal threaded check valve, is designed to prevent backflow of the medium in a pipeline. It features a swing-type opening and closing mechanism, with a replaceable nitrile rubber disc. Check valves are classified as automatic valves; the closing element opens or closes automatically under the force of the flowing medium. Check valves are used exclusively in pipelines where the medium flows in one direction to prevent backflow and avoid accidents.

Product Specifications

Product Model	H14T-16
Valve Body Material	Cast Iron
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, etc.
Operating Temperature	≤80℃

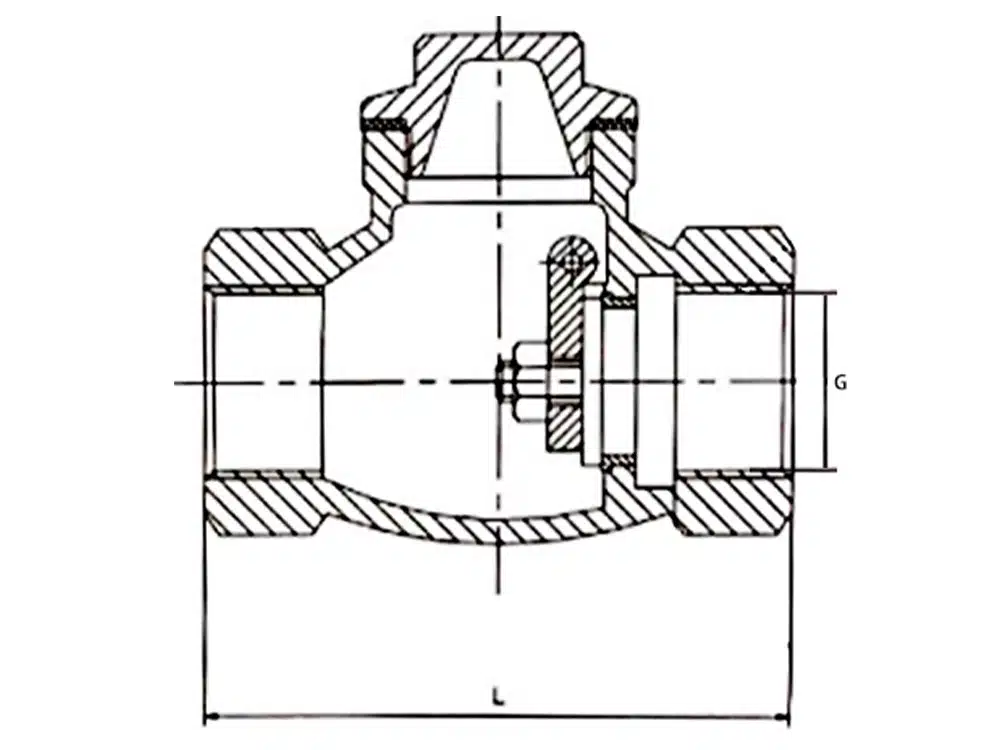

Product Size Guide

Nominal Diameter	L	G
DN25	85	30.5
DN32	85	39.6
DN40	85	45.6
DN50	95	57.6
DN65	108	73.2
DN80	137	85.5
DN100	161	111.2

TagsHorizontal Check Valve Internal Threaded Check Valve Non-Return Valve One-Way Valve Swing Check Valve

Consistent Quality

We implement comprehensive quality control throughout the entire process, ensuring meticulous attention to detail and thorough testing!

Reasonably Priced

Efficient internal cost control has reduced expenses, allowing us to pass the savings on to our customers!

Fast Delivery

State-of-the-art production lines and ample inventory have shortened delivery times!

Step 1: Send the purchase list

Please email the purchase list to info@bllyco.com. Phone/WeChat: +86-13382208259; WhatsApp: +852-90445535.

Step 2: Provide a Quote and Assist with Product Selection

Upon receiving the customer’s purchase list, our company will provide a valve quotation 「price list」 and assist with valve selection 「valve models」.

Step 3: Work Out the Details

Finalize the details: Confirm the delivery schedule, special requirements, and other specifics.

Cast Iron Swing Check Valve H14T-16

Product Description

Product Specifications

Product Size Guide
