Name: Cast Steel Soviet-Style Globe Valve J11H-16C
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Steel Soviet-Style Globe Valve J11H-16C

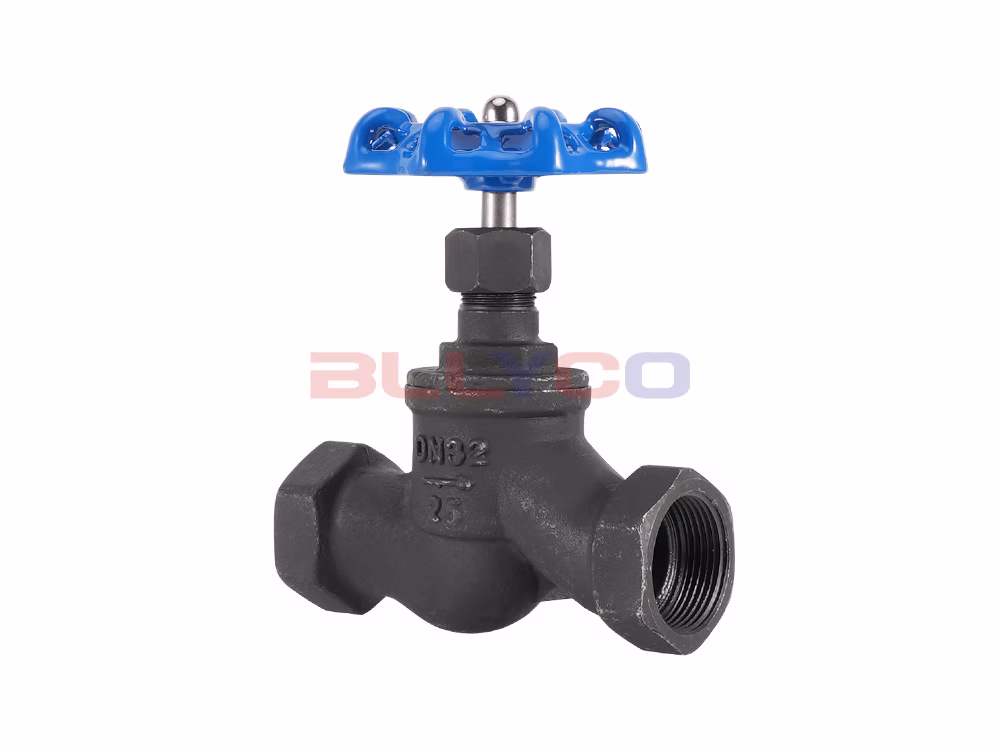

Cast Steel Soviet-Style Globe Valve J11H-16C

Product Model: J11H-16C
Valve Body Material: Cast Steel
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, gas, oil, etc.
Operating Temperature: ≤120℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Send InquiryChat Now

Product Description

The J11H-16C internal threaded Soviet-style globe valve is typically used in applications with strict sealing requirements. In addition to controlling gases, liquids, and steam, it is also suitable for controlling wastewater and media containing fibrous impurities. This product features a compact design, attractive appearance, excellent performance, and ease of use. It is suitable for air, steam, water, gases, petroleum, and corrosive media, and is widely used in the petroleum, chemical, metallurgical, light industrial, papermaking, and refrigeration sectors.

Product Specifications

Product Model	J11H-16C
Valve Body Material	Cast Steel
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, gas, oil, etc.
Operating Temperature	≤120℃

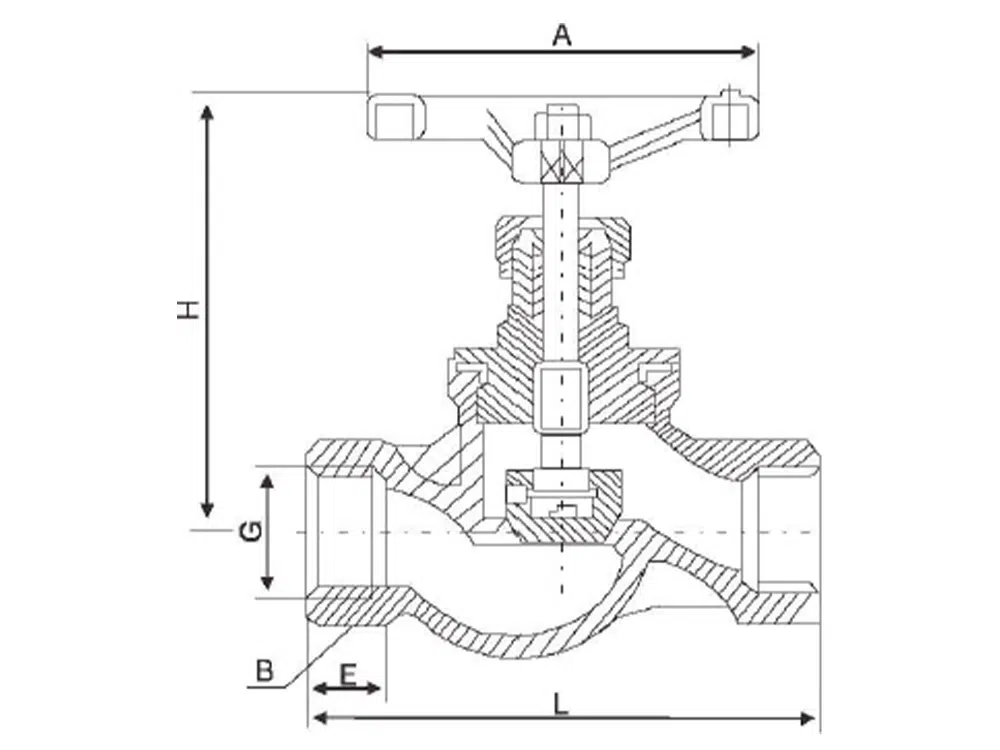

Product Size Guide

Nominal Diameter	G	L	E	B	H	A
DN15	1/2	87	14	32	109	70
DN20	3/4	97	16	36	109	70
DN25	1	109	18	46	132	80
DN32	1-1/4	139	20	55	156	90
DN40	1-1/2	170	22	65	167	100
DN50	2	197	24	80	182	120
DN65	2-1/2	236	26	95	200	140
