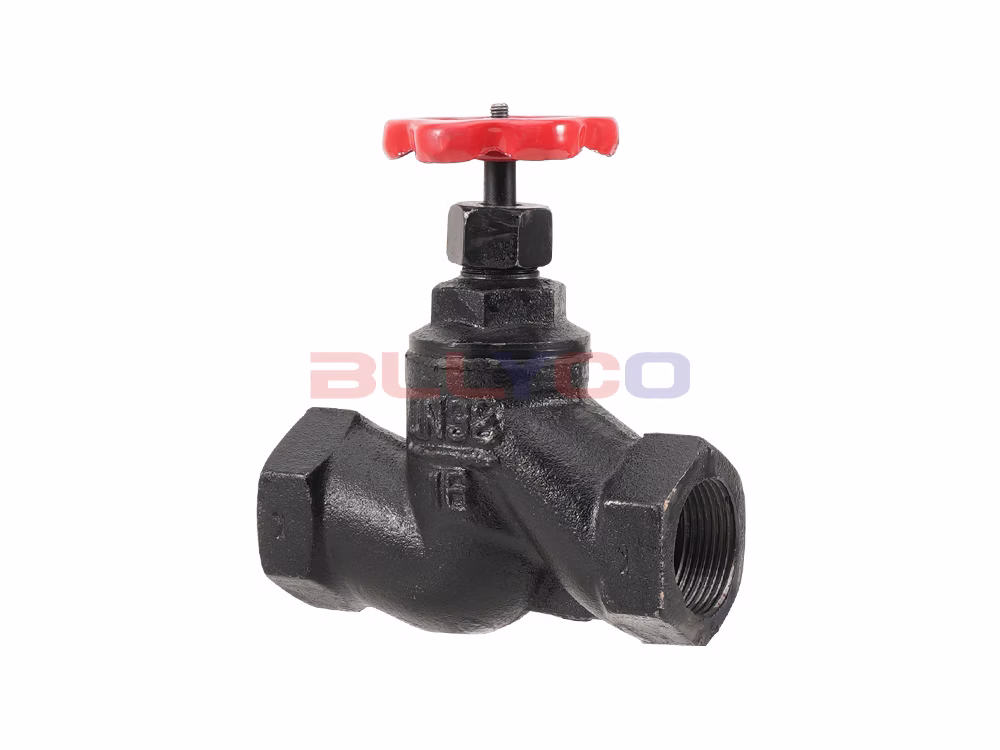

Product Description
The J11T Female Threaded Globe Valve is a commonly used shut-off valve primarily designed to open or close the flow of media in pipelines; it is generally not used for flow regulation. Globe valves are suitable for a wide range of pressures and temperatures, but are typically used in medium- and small-diameter pipelines.
Product Features
- The product has a simple design, making it easy to manufacture and maintain.
- The sealing surfaces are resistant to wear and scratches, ensuring excellent sealing performance and a long service life.
- The valve disc has a short travel during opening and closing, resulting in a short cycle time.
Applications
Widely used in water supply and drainage, gas, power, metallurgy, petroleum, chemical, light industry, textiles, and urban construction, among other industries, for opening and closing pipelines carrying air, water, and oil.
Product Specifications
Product Model | J11T-16 |
Valve Body Material | Cast Iron (HT200) |
Nominal Pressure | ≤1.6 MPa |
Applicable Media | Water, gas, oil, etc. |
Operating Temperature | ≤120℃ |

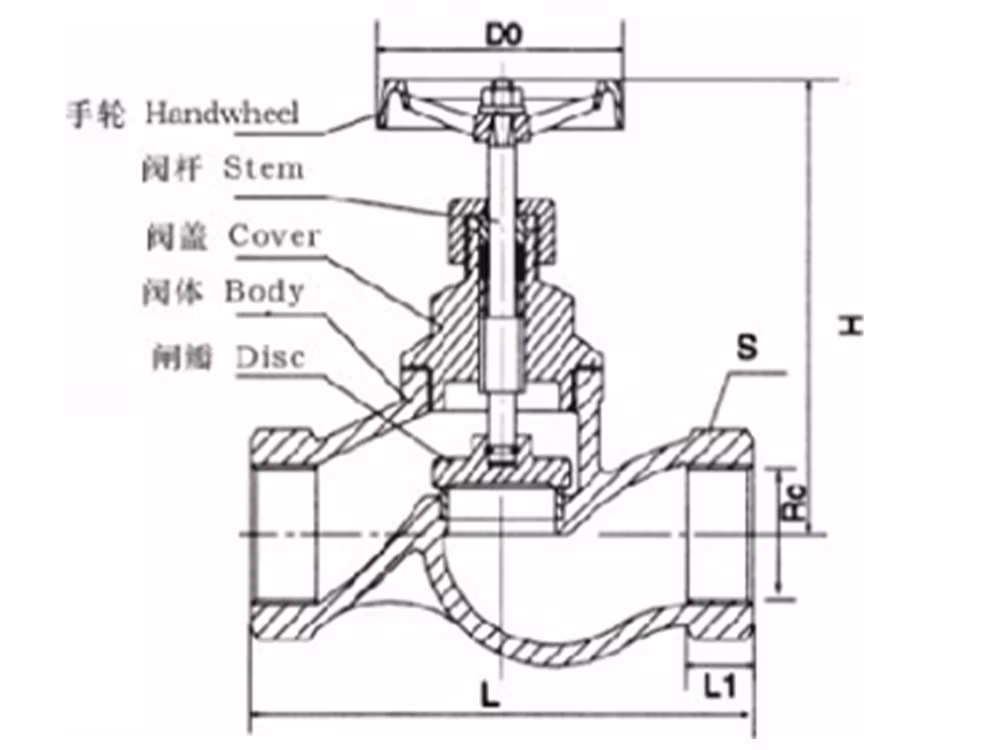

Product Size Guide
Nominal Diameter | Rc | L | L1 | S | H | D0 |
DN15 | 1/2 | 90 | 14 | 30 | 109 | 60 |
DN20 | 3/4 | 100 | 18 | 36 | 109 | 60 |
DN25 | 1 | 120 | 18 | 46 | 125 | 75 |
DN32 | 1-1/4 | 140 | 20 | 55 | 128 | 75 |
DN40 | 1-1/2 | 170 | 22 | 65 | 145 | 100 |
DN50 | 2 | 200 | 24 | 75 | 155 | 120 |
