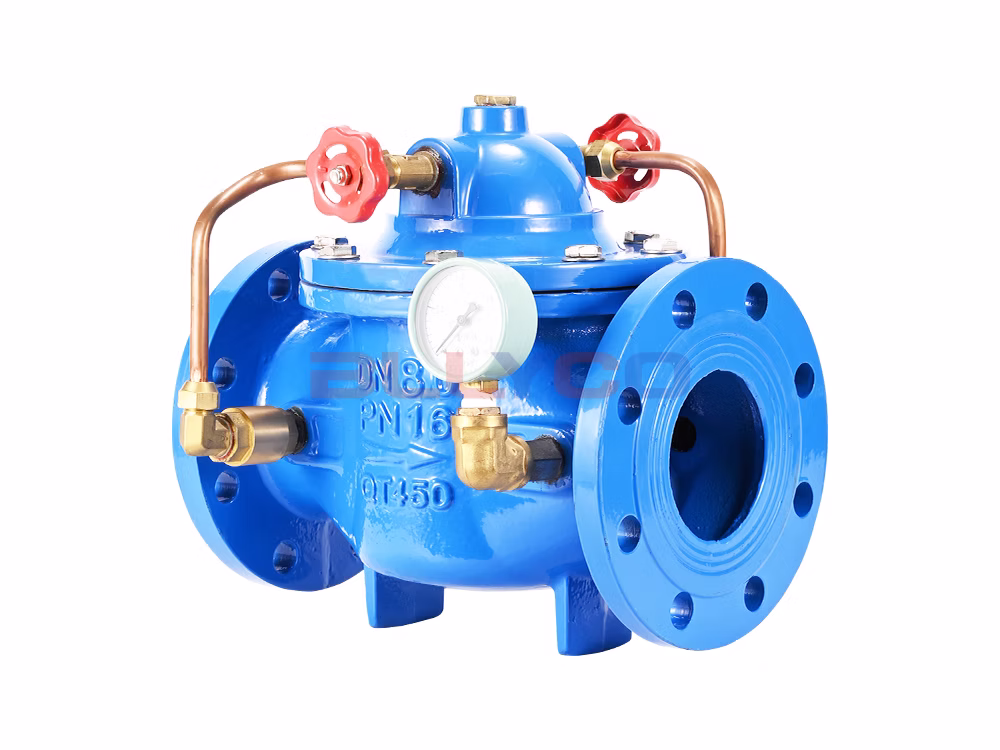

Ductile Iron Slow Closing Check Valve 300X-16Q

Product Description

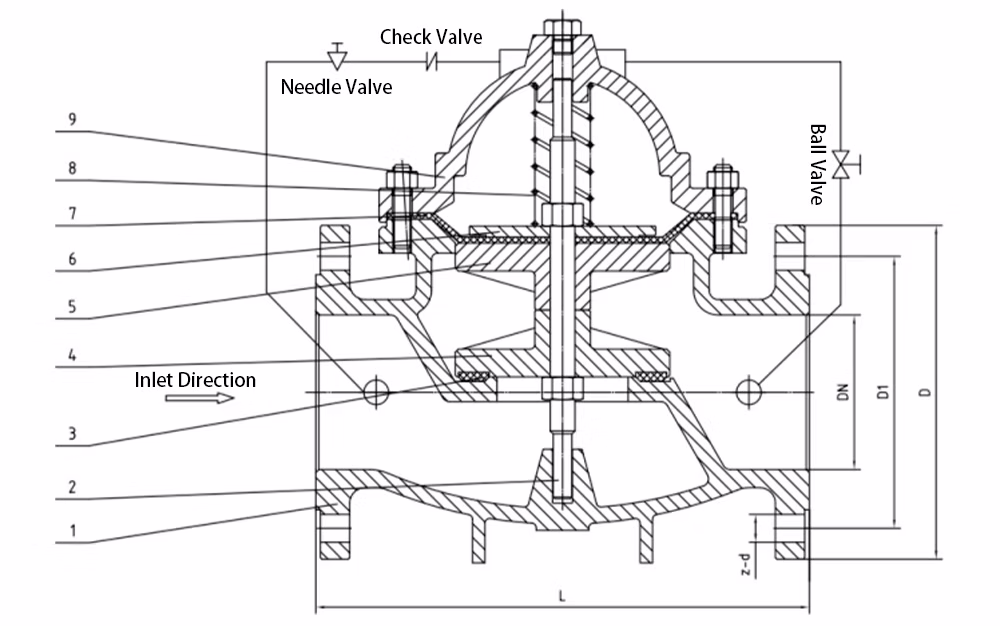

The 300X Slow Closing Check Valve consists of a main valve, a check valve, a needle valve, a ball valve, a strainer, and a pressure gauge, forming a hydraulically controlled piping system. Utilizing hydraulic automatic operation, it enables the main valve to open rapidly or close slowly. This prevents water hammer and achieves a slow-closing, noise-reducing effect. When water is supplied to the slow closing check valve from the inlet, it passes through the strainer, needle valve, and check valve into the main valve control chamber, and then flows downstream through the ball valve. Since the opening of the needle valve is smaller than that of the ball valve—meaning the outflow rate from the main valve control chamber exceeds the inflow rate—the pressure in the control chamber decreases. The inlet pressure acting on the lower end of the main valve disc opens the main valve to supply water downstream. When the pipeline stops supplying water, if backflow begins from the downstream side, a portion of the backflow enters the main control chamber via the ball valve. Due to the action of the check valve, the backflow cannot exit the main control chamber, causing the pressure in the main control chamber to gradually increase and slowly close the main valve.

Performance Features

1. The structure is innovative and well-designed, making effective use of hydraulic principles and control theory.
2. It operates smoothly and reliably, with a high flow rate.
3. The valve disc opens quickly and closes slowly, with no water hammer (closing time is adjustable).
4. The check valve provides excellent sealing performance and has a long service life.
5. Easy to install and maintain.

Product Specifications

Product Size Guide
