Product Description

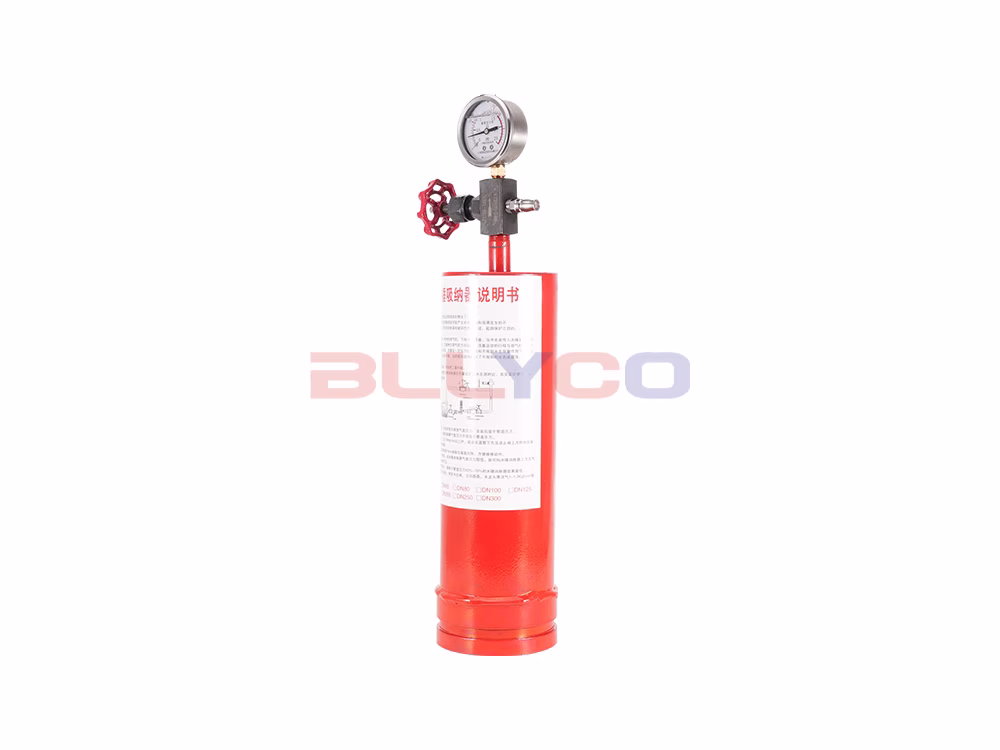

The G9000X Grooved Water Hammer Arrestor is a device designed to eliminate water hammer shock waves caused by various factors in pipelines, thereby protecting pipes and equipment from damage. Suitable for various water supply and drainage systems in industrial facilities, enterprises, high-rise buildings, power plants, and other settings, it utilizes the expansion and contraction of air in the upper chamber of the piston to cushion sudden shock waves, thereby reducing their intensity and effectively preventing equipment damage caused by massive water hammer forces. The device features a simple structure, high-quality materials, and a long service life.
Product Specifications
Product Model | G9000X-16C |
Valve Body Material | Carbon Steel |
Nominal Pressure | ≤1.6 MPa |
Applicable Media | Water, etc. |
Operating Temperature | ≤80℃ |

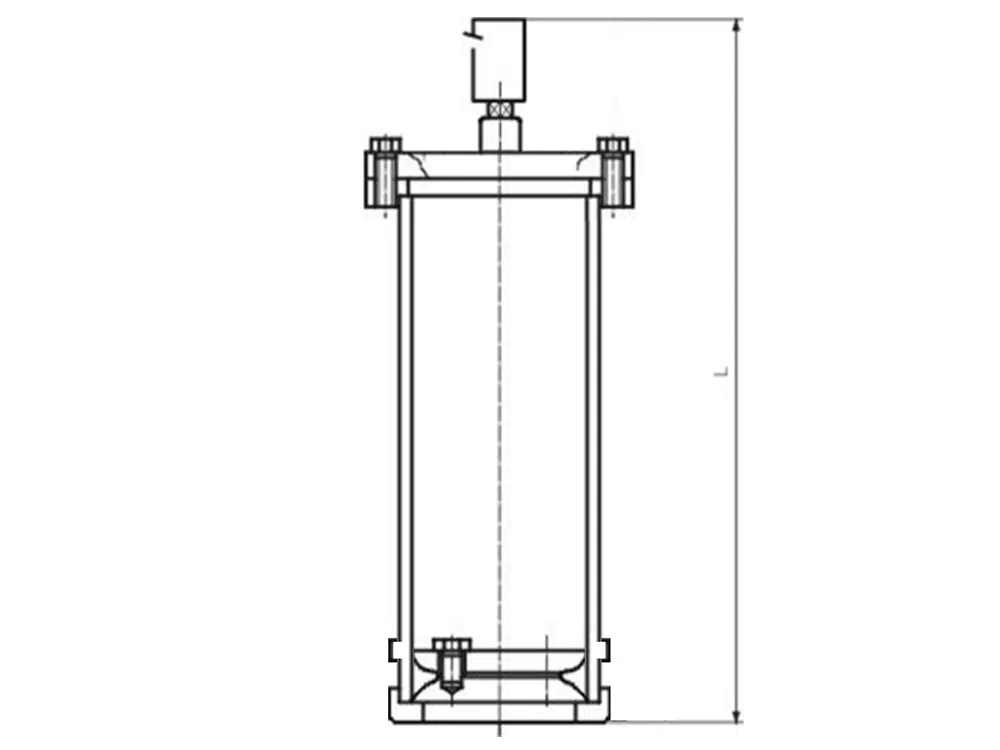

Product Size Guide
Nominal Diameter | Pipe Outer Diameter | L |
DN50 | 60 | 490 |
DN65 | 76 | 510 |
DN80 | 89 | 540 |
DN100 | 114 | 560 |
DN125 | 140 | 600 |
DN150 | 165 | 650 |
DN200 | 219 | 770 |
DN250 | 273 | 950 |
DN300 | 325 | 1000 |
