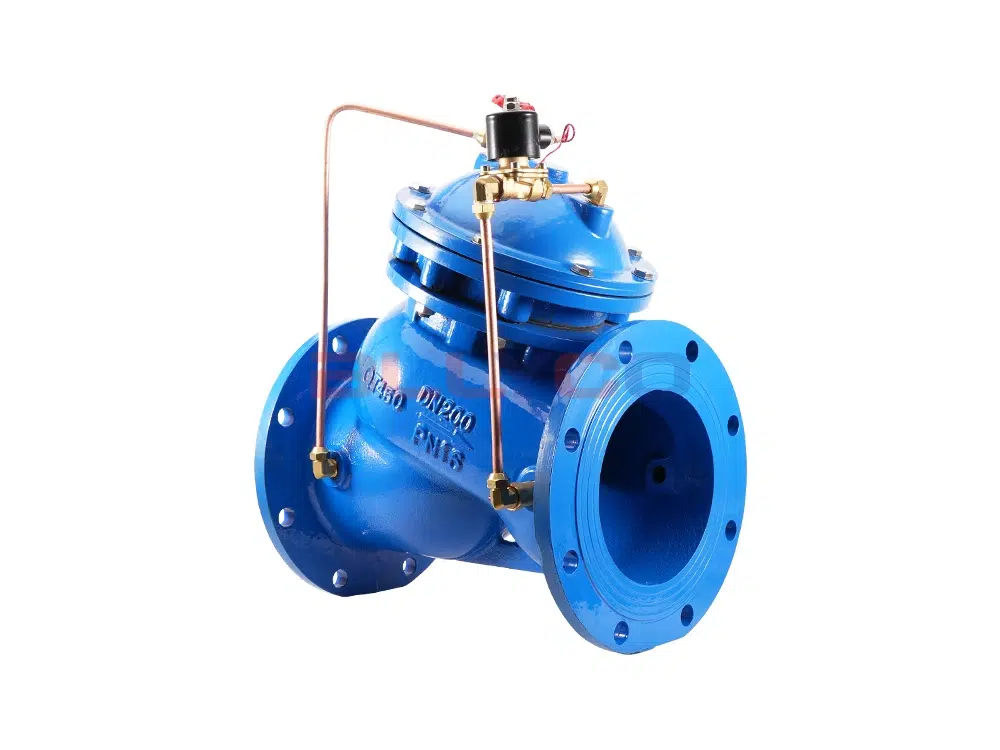

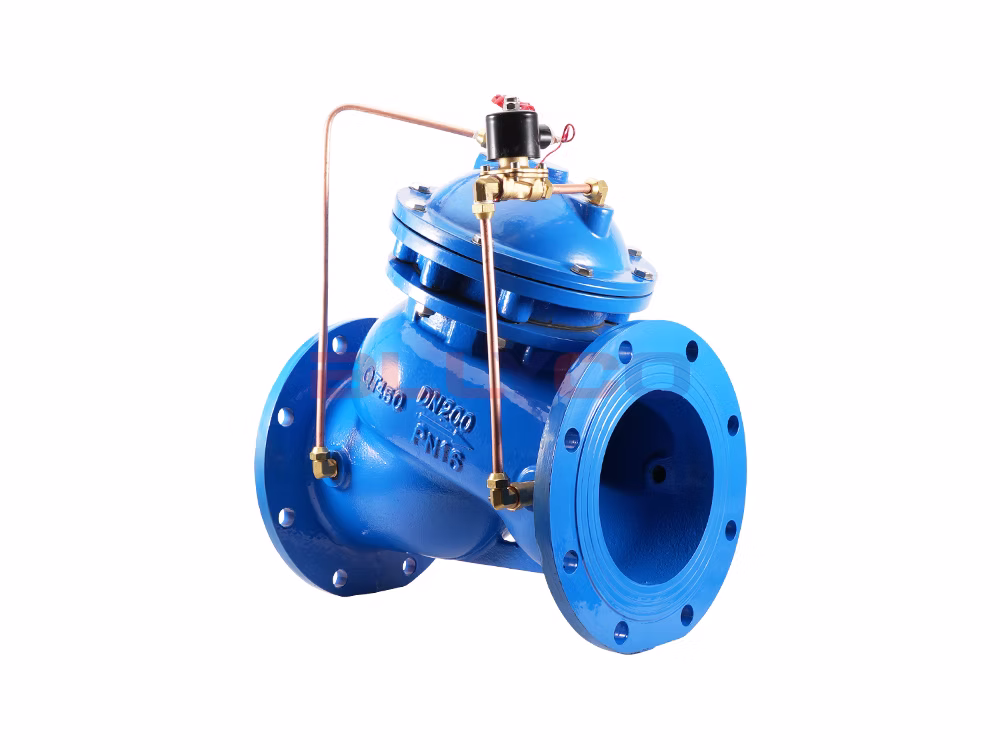

Ductile Iron Diaphragm-Type Electric Remote Control Valve J145X-16Q

Product Description

The J145X diaphragm-type electric remote control valve is primarily installed on pipelines in various water supply systems. It opens or closes the valve in response to an electrical signal or manual operation. The J145X diaphragm-type electric remote control valve offers highly accurate and rapid control response. Its closing speed is adjustable, ensuring the valve closes smoothly without causing pressure fluctuations. The J145X diaphragm-type electric remote control valve utilizes a three-way solenoid valve, making maintenance simple.

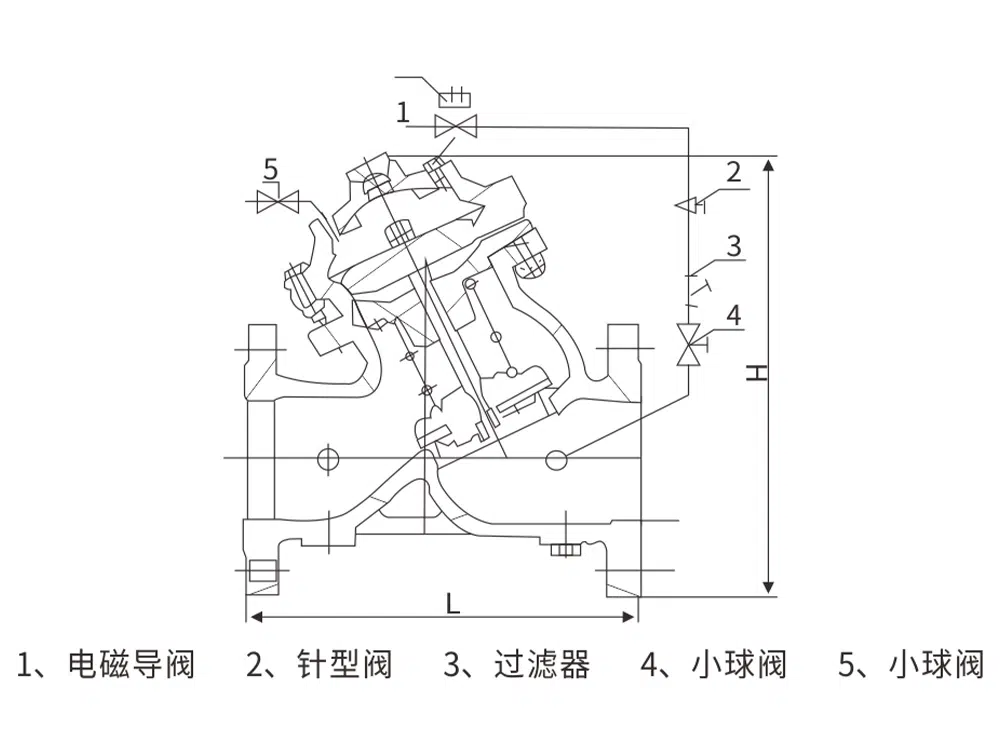

Structural Features

The J145X diaphragm-type electric remote control valve consists of a main valve, a regulating valve, and a piping system. The valve body features a straight-through design, and the main valve’s control chamber employs a dual-chamber structure with either a diaphragm or piston mechanism. Compared to standard hydraulic control valves, this design includes an additional control chamber, enhancing control over the main valve and enabling multifunctional control of the pump outlet, including slow opening, full opening, slow closing, and shutoff, enabling multifunctional control of the pump outlet with a single valve and a single adjustment.

Scope of Application

The J145X diaphragm-type electric remote control valve is primarily used in piping systems in high-rise buildings, industrial and mining enterprises, as well as in the pharmaceutical and food industries. It opens or closes the valve in response to an electrical signal or manual operation.

Product Specifications

Product Size Guide
