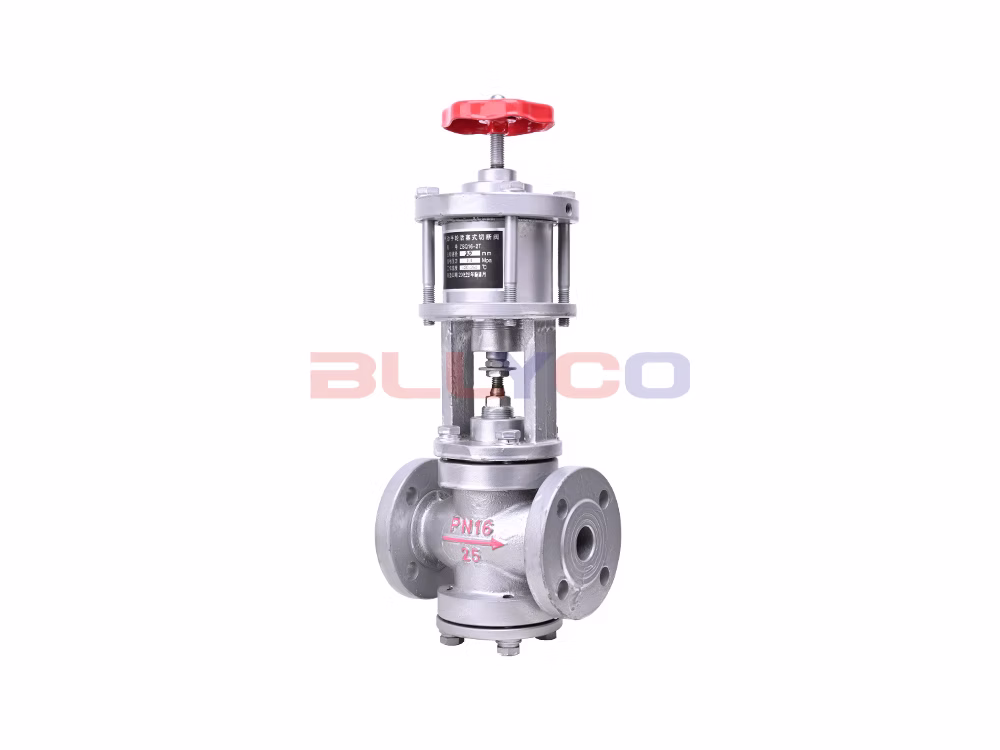

Name: Cast Iron Pneumatic/Manual Piston-Type Shut-Off Valve ZSQ16-2T
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Iron Pneumatic/Manual Piston-Type Shut-Off Valve ZSQ16-2T

Cast Iron Pneumatic/Manual Piston-Type Shut-Off Valve ZSQ16-2T

Product Model: ZSQ16-2T
Valve Body Material: Cast Iron（HT200）
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, steam, oil, etc.
Operating Temperature: ≤200℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The ZSQ pneumatic piston-type shut-off valve consists of two parts—an actuator and a linear-travel regulating mechanism—connected by a bracket. This valve features a top-guided design and is equipped with a spring-loaded actuator. It is characterized by a compact structure, light weight, responsive operation, an S-shaped streamlined fluid passage, low pressure drop, high valve capacity, and easy disassembly and assembly. It uses pneumatic or manual operation to shut off, open, or change the direction of the medium flow, thereby controlling pressure, flow rate, liquid level, and other parameters. It is widely used in production process automation and remote control systems across various industrial sectors, including petroleum, chemical, metallurgy, power, light industry, and textiles.

Product Specifications

Product Model	ZSQ16-2T
Valve Body Material	Cast Iron（HT200）
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, steam, air, etc.
Operating Temperature	≤200℃

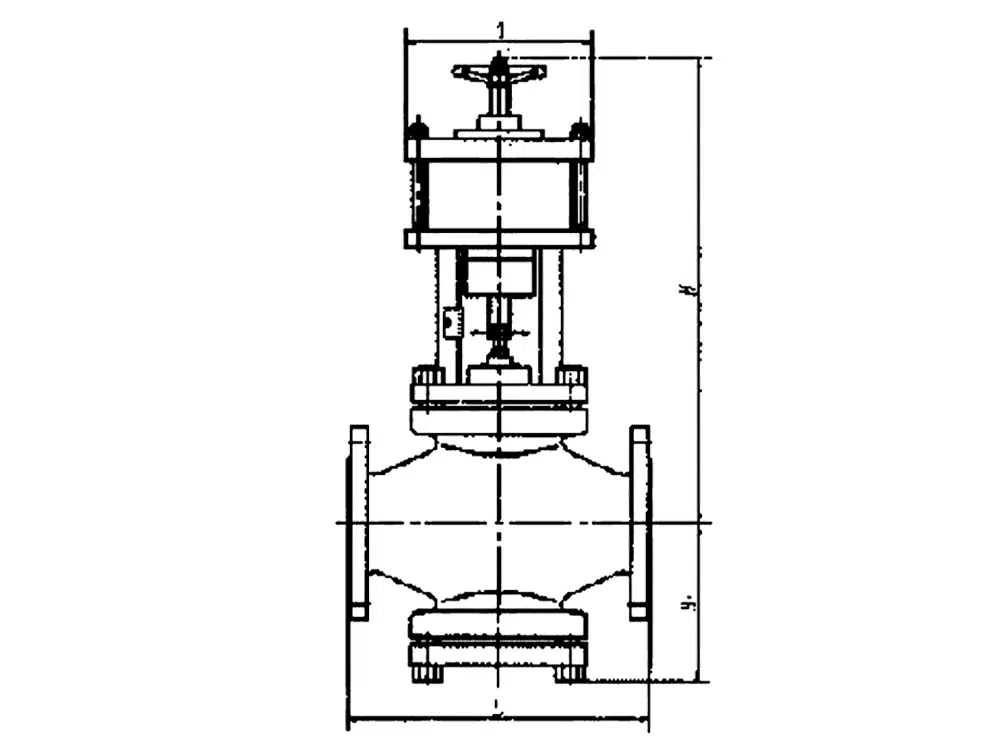

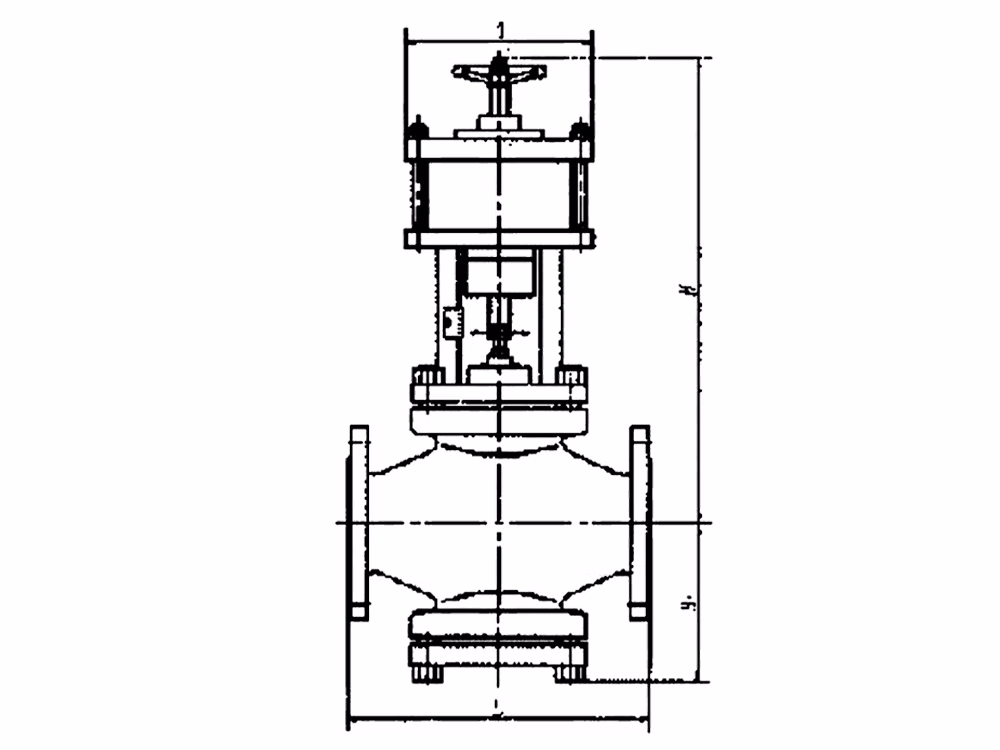

Product Size Guide

Nominal Diameter	L	A	H	H1
DN20	150	196	340	53
DN25	160	196	345	58
DN32	180	196	370	70
DN40	200	232	380	75
DN50	230	232	390	83
DN65	290	308	475	93
DN80	310	308	490	100
DN100	350	308	500	110
