Name: Cast Iron Lift Check Valve H41T-16
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Iron Lift Check Valve H41T-16

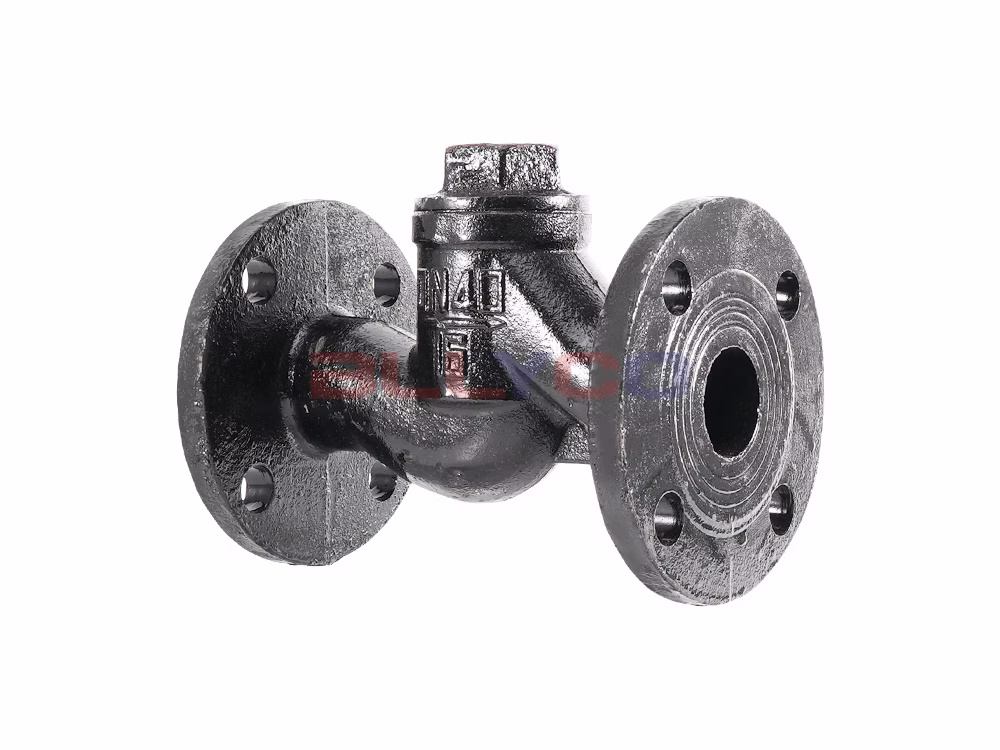

Cast Iron Lift Check Valve H41T-16

Product Model: H41T-16
Valve Body Material: Cast Iron（HT200）
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, gas, oil, etc.
Operating Temperature: ≤120℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

MessageWhatsApp

Product Description

The H41T-16 lift check valve, also known as a non-return valve or one-way valve, is an automatic valve that opens and closes the disc automatically using the flow of the medium itself. Its primary function is to prevent backflow of the medium. It is suitable for use in pipelines carrying water, gas, or oil at operating temperatures of ≤120°C.

Industry Applications

Industries such as gas and water supply, water conservancy and power, construction and energy, petrochemicals, biopharmaceuticals, and textiles and dyeing.

Product Specifications

Product Model	H41T-16
Valve Body Material	Cast Iron（HT200）
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, gas, oil, etc.
Operating Temperature	≤120℃

Product Size Guide

Nominal Diameter	L	D	D1	D2	b-f	Z-φd	H
DN25	160	115	85	65	16-2	4-14	65
DN32	180	135	100	78	18-2	4-18	84
DN40	200	145	110	85	18-3	4-18	96
DN50	230	160	125	100	20-3	4-18	115
DN65	290	180	145	120	20-3	4-18	145
DN80	310	195	160	135	22-2	8-18	156
DN100	350	215	180	155	24-3	8-18	170
DN125	400	245	210	185	26-3	8-18	201
DN150	480	280	240	210	28-3	8-23	238
DN200	600	335	295	265	30-3	12-23	245

TagsCast Iron Check Valve Flanged Check Valve Lift Check Valve Non-Return Valve One-Way Valve
