Product Description

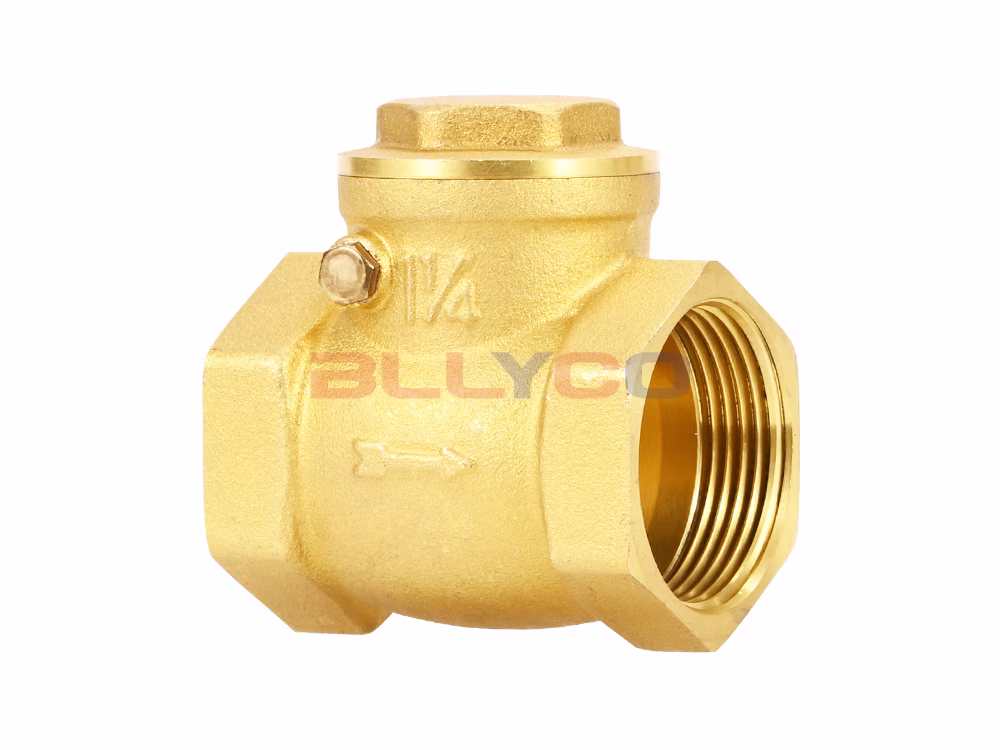

The H14W-16T Brass Horizontal Check Valve is generally applicable for clean media and is not recommended for media containing solid particles or with high viscosity. A check valve is a type of valve in which the closing member opens or closes automatically due to the flow and force of the medium, thereby preventing backflow. Check valves belong to the category of automatic valves and are primarily used in pipelines where the medium flows in one direction; they allow the medium to flow in only one direction to prevent accidents.
Product Specifications
Product Model | H14W-16T |
Valve Body Material | Brass |
Nominal Pressure | ≤1.6 MPa |
Applicable Media | Water, gas, oil, etc. |
Operating Temperature | ≤120℃ |

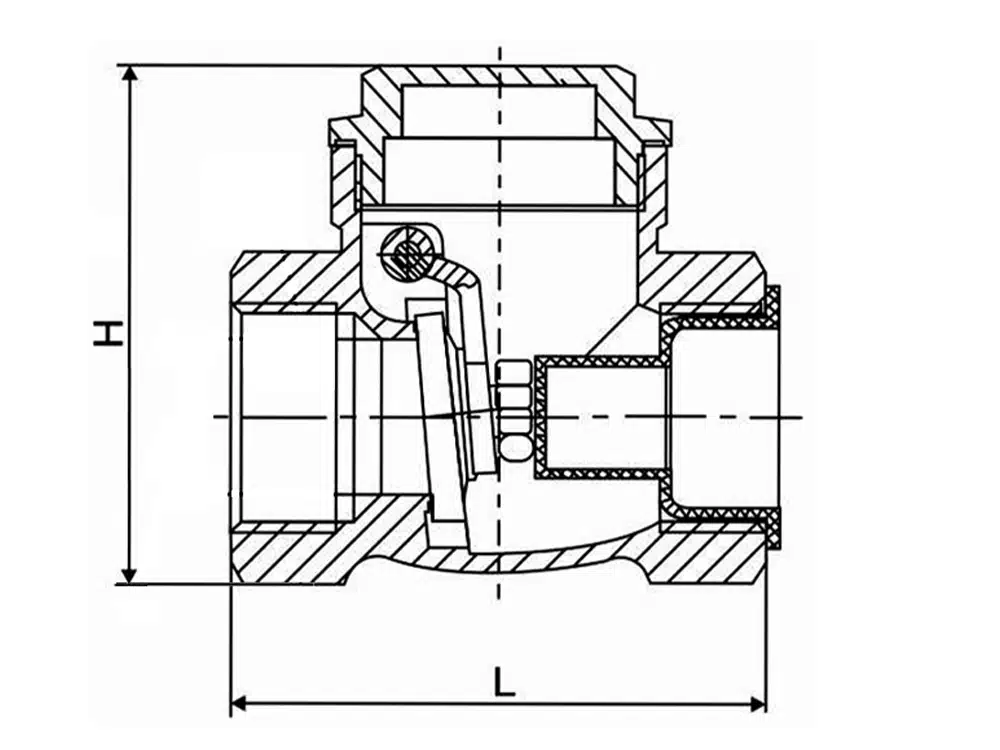

Product Size Guide
Nominal Diameter | Inch | L | H |
DN15 | 1/2 | 47 | 46 |
DN20 | 3/4 | 55 | 55 |
DN25 | 1 | 62 | 60 |
DN32 | 1-1/4 | 65 | 74 |
DN40 | 1-1/2 | 67 | 75 |
DN50 | 2 | 81 | 95 |
DN65 | 2-1/2 | 100 | 115 |
DN80 | 3 | 120 | 145 |
