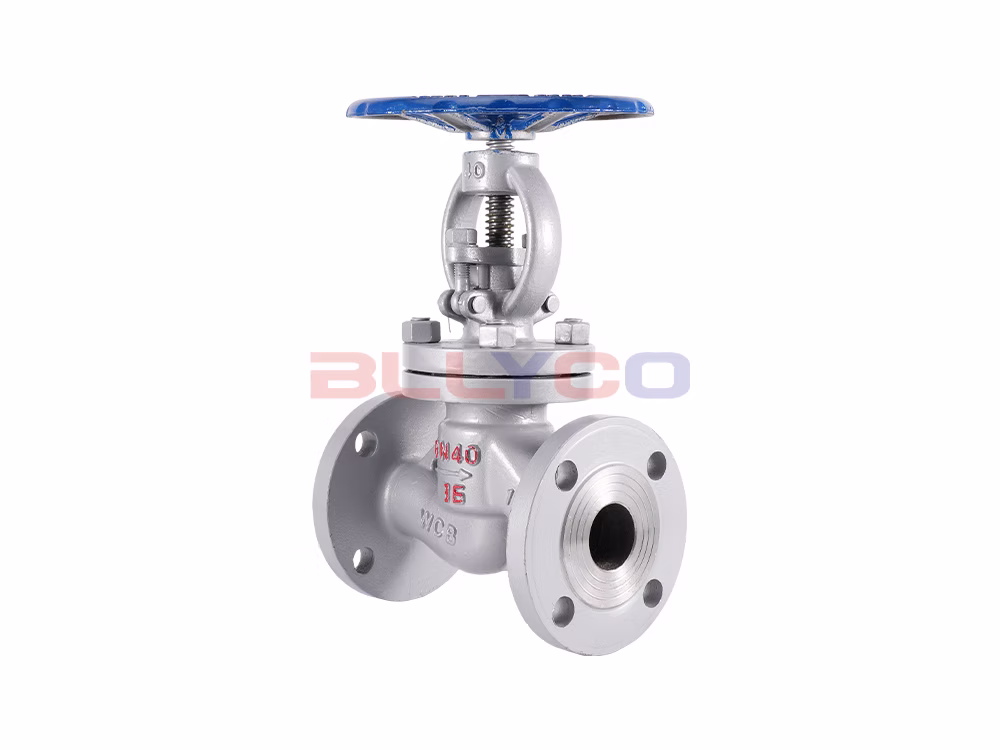

Name: Cast Steel Flanged Globe Valve J41H-16C
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Steel Flanged Globe Valve J41H-16C

Cast Steel Flanged Globe Valve J41H-16C

Product Model: J41H-16C
Valve Body Material: Cast Steel
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, steam, oil, etc.
Operating Temperature: ≤250℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Send InquiryChat Now

Product Description

The J41H-16C cast steel flanged globe valve features a closing member that is a cylindrical disc with a flat or conical sealing surface; the disc moves in a straight line along the centerline of the fluid flow. The J41H-16C globe valve is intended for fully open and fully closed positions only and is generally not used for flow regulation; however, it may be customized for flow regulation and throttling.

Product Features

The structure is simple, making it relatively easy to manufacture and maintain.
Short stroke and fast opening and closing times.
It provides excellent sealing performance, low friction between sealing surfaces, and a long service life.

Product Specifications

Product Model	J41H-16C
Valve Body Material	Cast Steel
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, steam, oil, etc.
Operating Temperature	≤250℃

Product Size Guide

DN	L	D	D1	D2	b	f	z-d
15	130	95	65	45	16	2	4-14
20	150	105	75	58	18	2	4-14
25	160	115	85	68	18	2	4-14
32	180	140	100	78	18	2	4-18
40	200	150	110	88	18	2	4-18
50	230	165	125	102	18	2	4-18
65	290	185	145	122	18	2	4-18
80	310	200	160	138	20	2	8-18
100	350	220	180	158	20	2	8-18
125	400	250	210	188	22	2	8-18
150	480	285	240	212	22	2	8-22
200	600	340	295	268	24	2	12-22
250	650	405	355	320	26	2	12-26
300	750	460	410	378	28	2	12-26
350	850	520	470	438	30	2	16-26
400	950	580	525	490	32	2	16-30
450	1050	640	585	550	40	2	20-30
500	1150	715	650	610	44	2	20-33

TagsCast Steel Globe Valve Flanged Globe Valve Globe Valve Manual Globe Valve Steam Globe Valve

Consistent Quality

We implement comprehensive quality control throughout the entire process, ensuring meticulous attention to detail and thorough testing!

Reasonably Priced

Efficient internal cost control has reduced expenses, allowing us to pass the savings on to our customers!

Fast Delivery

State-of-the-art production lines and ample inventory have shortened delivery times!

Step 1: Send the purchase list

Please email the purchase list to info@bllyco.com. Phone/WeChat: +86-13382208259; WhatsApp: +852-90445535.

Step 2: Provide a Quote and Assist with Product Selection

Upon receiving the customer’s purchase list, our company will provide a valve quotation 「price list」 and assist with valve selection 「valve models」.

Step 3: Work Out the Details

Finalize the details: Confirm the delivery schedule, special requirements, and other specifics.
