Product Description

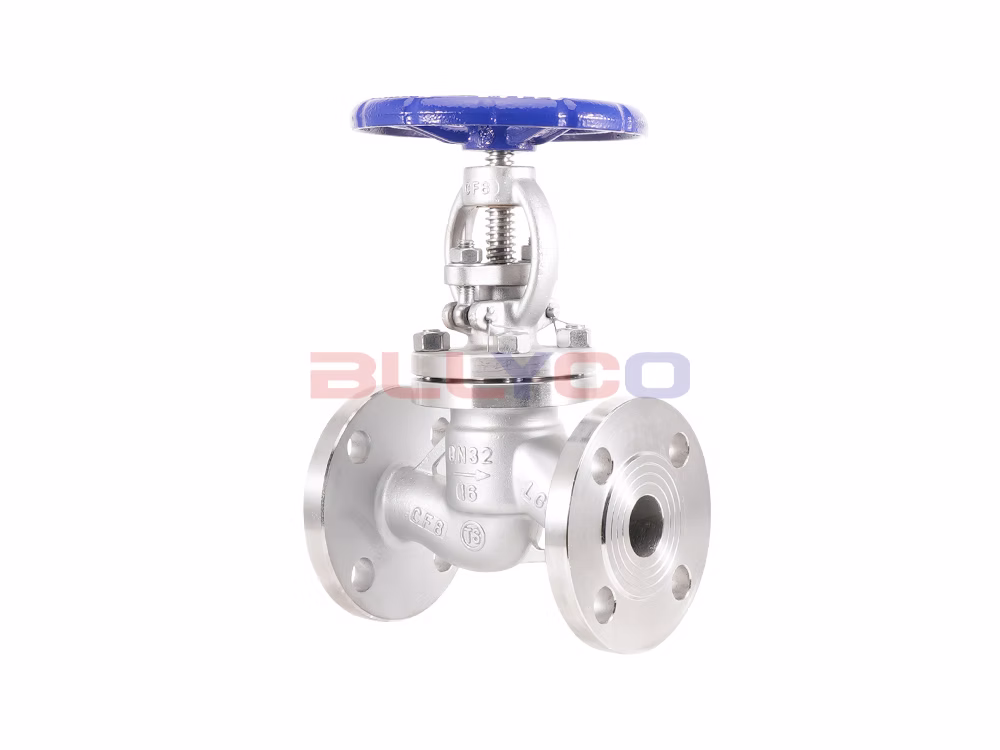

The J41W-16P Stainless Steel Flanged Globe Valve features a cylindrical disc with a flat or conical sealing surface; the disc moves in a straight line along the centerline of the fluid flow. The J41W-16P globe valve is intended for fully open or fully closed operation only and is generally not used for flow regulation; however, it may be customized for flow regulation and throttling.
Product Features
- It has a simple structure and is relatively easy to manufacture and maintain.
- Short stroke, fast opening and closing.
- It provides excellent sealing performance, low friction between sealing surfaces, and a long service life.
Product Specifications
产品型号 | J41W-16P |
阀体材质 | 304不锈钢 |
公称压力 | ≤1.6MPa |
适用介质 | 水、蒸汽、油品等 |
适用温度 | ≤150℃ |
Product Size Guide
Nominal Diameter | L | O | C | g | T | f | n-φd |
DN15 | 130 | 95 | 65 | 45 | 14 | 2 | 4-14 |
DN20 | 150 | 105 | 75 | 55 | 14 | 2 | 4-14 |
DN25 | 160 | 115 | 85 | 65 | 14 | 2 | 4-14 |
DN32 | 180 | 135 | 100 | 78 | 16 | 2 | 4-18 |
DN40 | 200 | 145 | 110 | 85 | 16 | 3 | 4-18 |
DN50 | 230 | 160 | 125 | 100 | 16 | 3 | 4-18 |
DN65 | 290 | 180 | 145 | 120 | 18 | 3 | 4-18 |
DN80 | 310 | 195 | 160 | 135 | 20 | 3 | 8-18 |
DN100 | 350 | 215 | 180 | 155 | 20 | 3 | 8-18 |
DN125 | 400 | 245 | 210 | 185 | 22 | 3 | 8-18 |
DN150 | 480 | 280 | 240 | 210 | 24 | 3 | 8-23 |
DN200 | 600 | 335 | 295 | 265 | 26 | 3 | 12-23 |
DN250 | 650 | 405 | 355 | 320 | 26 | 3 | 12-26 |
DN300 | 750 | 460 | 410 | 355 | 28 | 3 | 12-26 |
