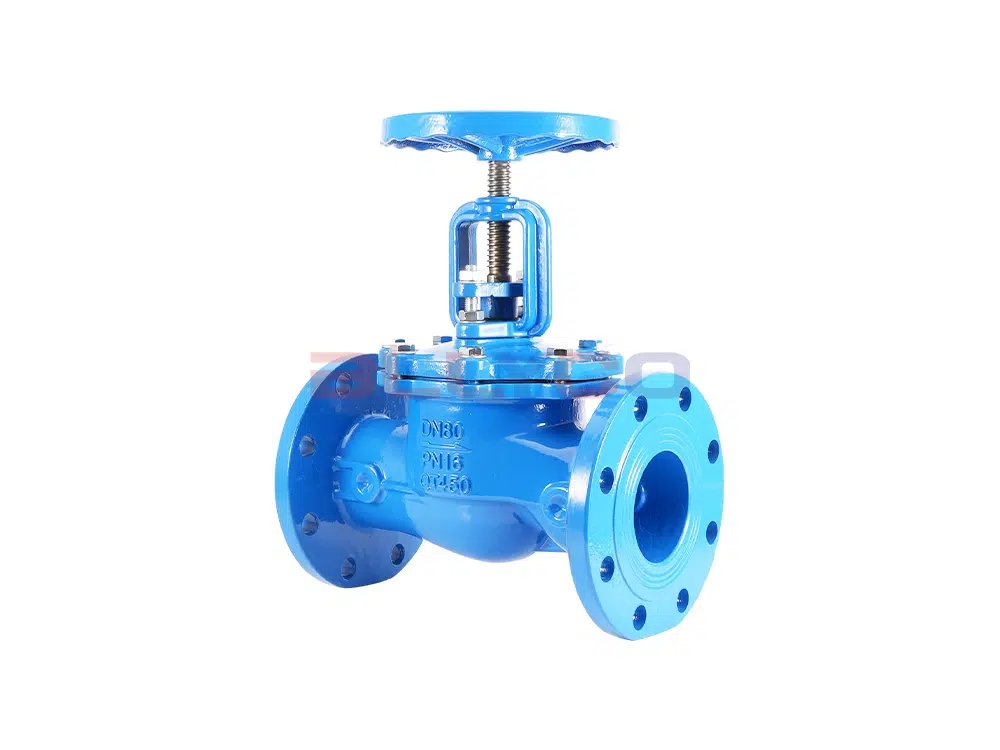

Ductile Iron Flanged Globe Valve J41X-16Q

Product Description

The J41X-16Q flanged globe valve belongs to the forced-seal valve category. When the valve is closed, pressure must be applied to the disc to ensure that the sealing surfaces remain leak-free. The flow direction of the J41X-16Q flanged globe valve is typically from top to bottom. This configuration ensures that the force required to close the valve is lower than the force required to open it under the pressure of the medium, allowing for a smaller valve stem diameter. Additionally, this valve design provides a tighter seal. It is widely used in fluid pipelines for water supply, sewage, construction, petroleum, chemical, food, pharmaceutical, light industry and textiles, power, marine, metallurgy, and energy systems as a device for connecting and shutting off flow.

Product Features

1. The structure is simple, making it relatively easy to manufacture and maintain.
2. Short stroke and fast opening and closing times.
3. It provides a good seal, has low friction between the sealing surfaces, and has a long service life.

Product Specifications

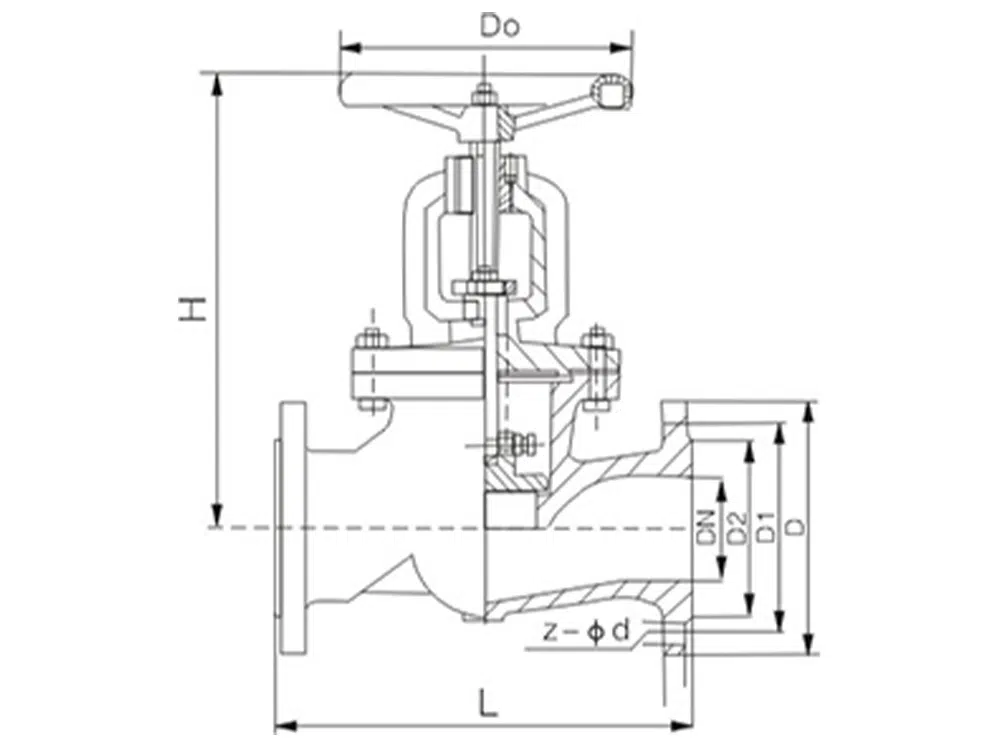

Product Size Guide
