Name: Brass Flanged Globe Valve J41W-16T
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Brass Flanged Globe Valve J41W-16T

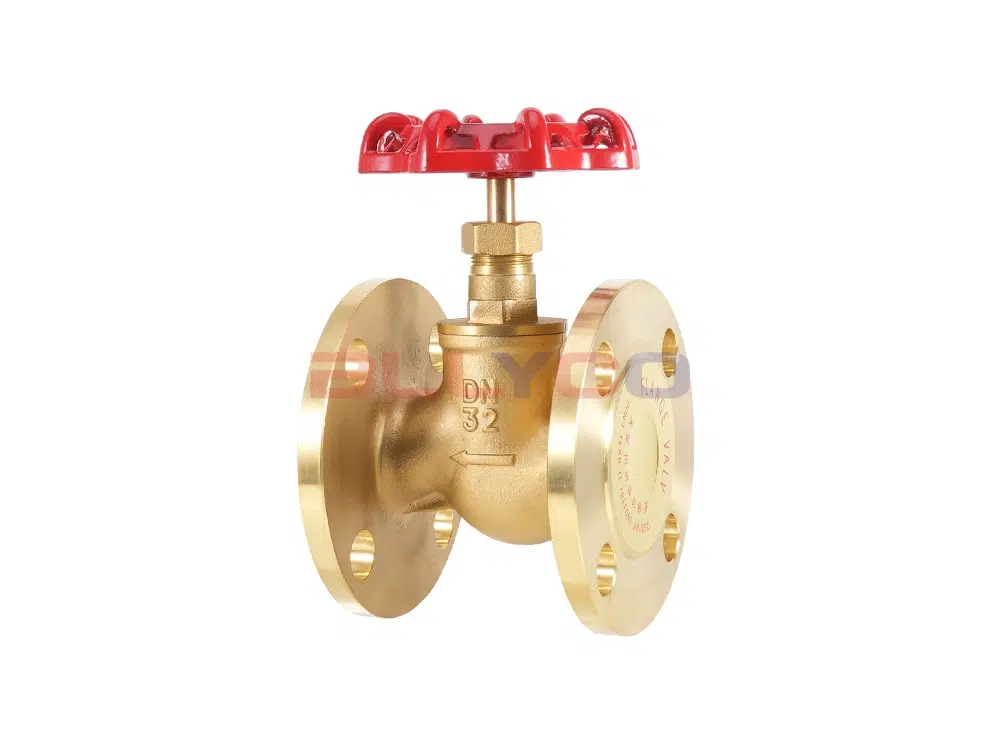

Brass Flanged Globe Valve J41W-16T

Product Model: J41W-16T
Valve Body Material: Brass
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, gas, oil, etc.
Operating Temperature: ≤120℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Send InquiryChat Now

Product Description

The J41W-16T brass flanged globe valve is primarily used to connect or shut off the flow of media in pipelines. This globe valve features a simple design, reliable sealing, and a long service life. It is widely used in central air conditioning systems, HVAC systems, water supply and drainage, municipal engineering, high-rise buildings, chemical engineering, metallurgy, petroleum, pharmaceuticals, food, beverages, and environmental protection.

Product Features

The structure is simple, making it relatively easy to manufacture and maintain.
Short stroke and fast opening and closing times.
It provides excellent sealing performance, low friction between sealing surfaces, and a long service life.

Product Specifications

Product Model	J41W-16T
Valve Body Material	Brass
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, gas, oil, etc.
Operating Temperature	≤120℃

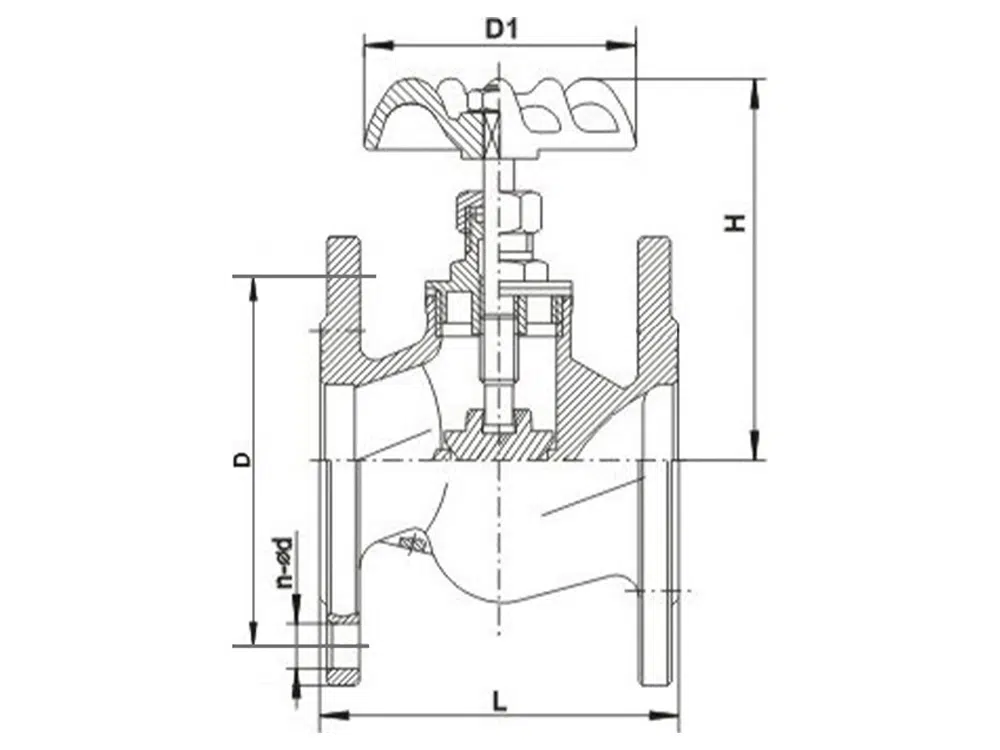

Product Size Guide

Nominal Diameter	L	H	D	D1	n-φd
DN15	77	79.5	55	65	4-14
DN20	89	86.6	60	75	4-14
DN25	91	94	72	85	4-14
DN32	109	114	80	100	4-18
DN40	131	132	100	110	4-18
DN50	171	183	140	125	4-18
DN65	197	197	179	145	4-18
DN80	245	275	199.5	160	8-18
DN100	276	325	218	180	8-18
DN125	335	336	248	210	8-18
DN150	360	379	317	240	8-22
DN200	416	442	320	295	12-22
