Ductile Iron Grooved Pilot-Operated Pressure Reducing Valve G200X-16Q

Product Description

The G200X grooved pilot-operated pressure reducing valve is a pressure reducing valve within the category of hydraulically controlled valves; it is a functional valve that utilizes the medium's own energy to regulate and control pipeline pressure. Designed specifically for high-rise buildings, this valve allows the outlet pressure of the main valve to be adjusted by regulating the pilot valve. The outlet pressure remains constant regardless of changes in inlet pressure or flow rate, safely and reliably maintaining the outlet pressure at the set value. The set value can be adjusted as needed to achieve the desired pressure reduction. This pressure-reducing valve offers stable performance, safety, reliability, and ease of installation, with a long service life. It is primarily used in high-rise building domestic water and fire protection systems where high flow rates and sensitivity are required. By replacing intermediate water tanks, it reduces construction costs associated with these tanks and increases the usable floor area of the building. It is widely used in high-rise buildings, industrial water supply, fire protection water supply, domestic water distribution networks, and urban water supply projects.

How It Works

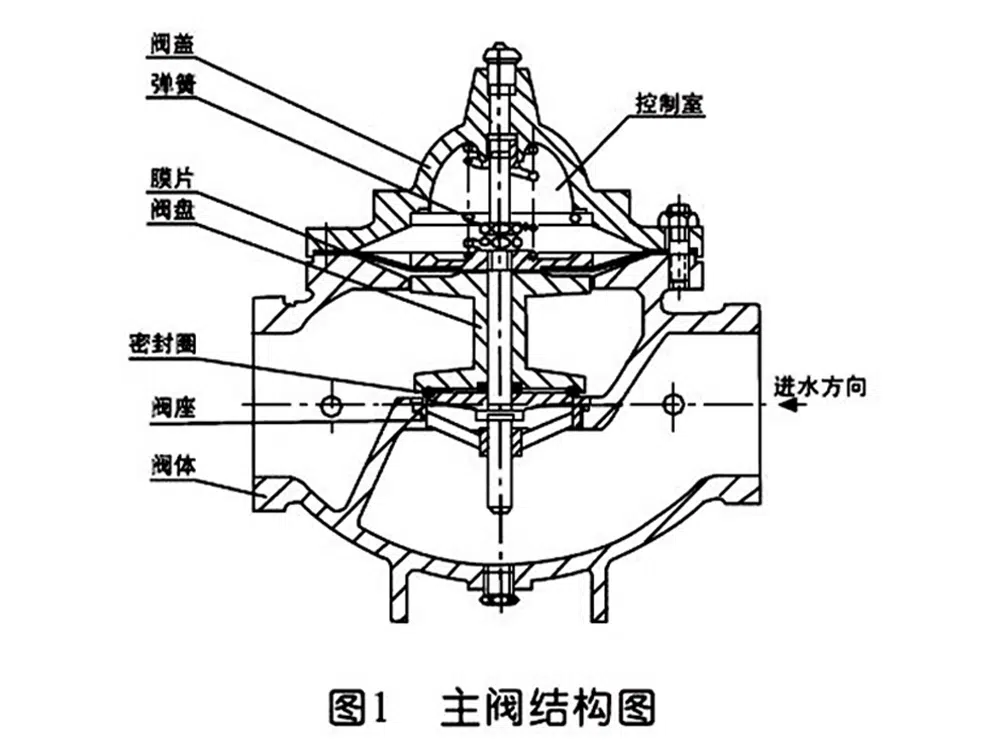

When water is supplied to the valve from the inlet, it flows through the needle valve into the main valve control chamber, and the outlet pressure is transmitted to the pilot valve via a conduit. When the outlet pressure exceeds the pilot valve spring-loaded setting, the pilot valve closes. The control chamber stops draining, causing the pressure inside the main valve control chamber to rise and the main valve to close; the outlet pressure ceases to rise. When the valve's outlet pressure drops to the pilot valve spring-loaded set pressure, the pilot valve opens, and the control chamber drains downstream. Since the drainage rate of the pilot valve system exceeds the inflow rate through the needle valve, the pressure in the main valve control chamber decreases. The inlet pressure causes the main valve to open. Under steady-state conditions, the inflow and outflow in the control chamber are equal, the main valve opening remains constant, and the outlet pressure remains stable.

Product Features

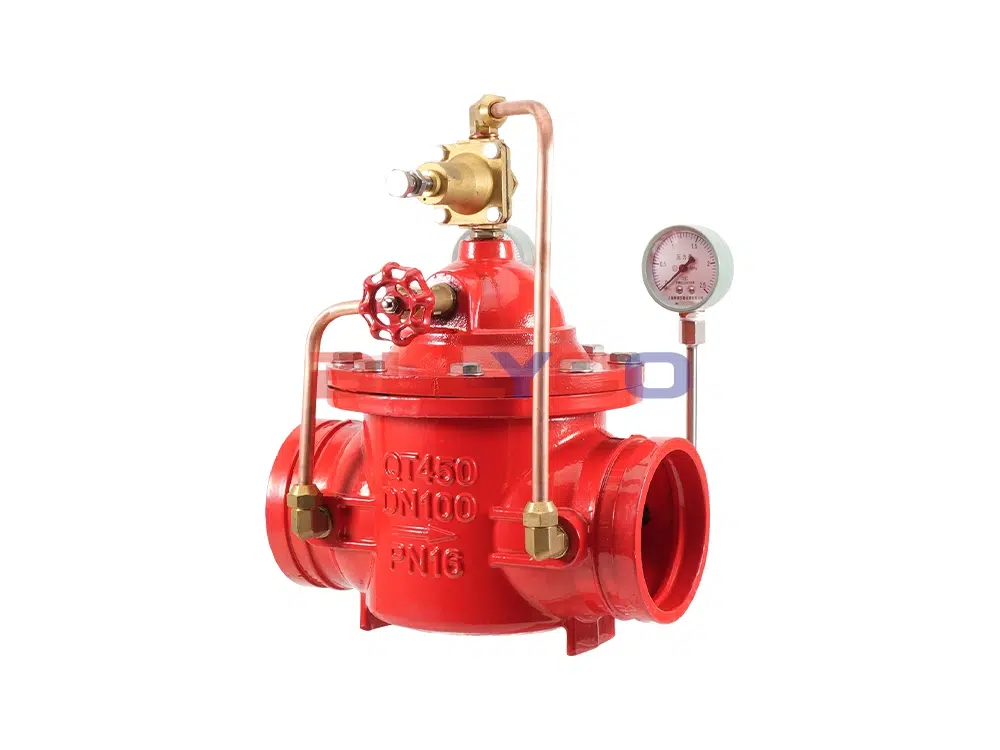

The G200X grooved pilot-operated pressure reducing valve consists of a main valve, pilot valve, needle valve, ball valve, strainer, and pressure gauge, forming a hydraulically controlled piping system. During operation, once the outlet pressure is set, the valve automatically maintains a stable outlet pressure. This product utilizes self-acting pilot valve control, requiring no additional devices or power sources. It is easy to maintain, offers high pressure control accuracy, is minimally affected by inlet pressure and flow rate, and provides reliable pressure reduction and stabilization.

Product Specifications

Product Size Guide
