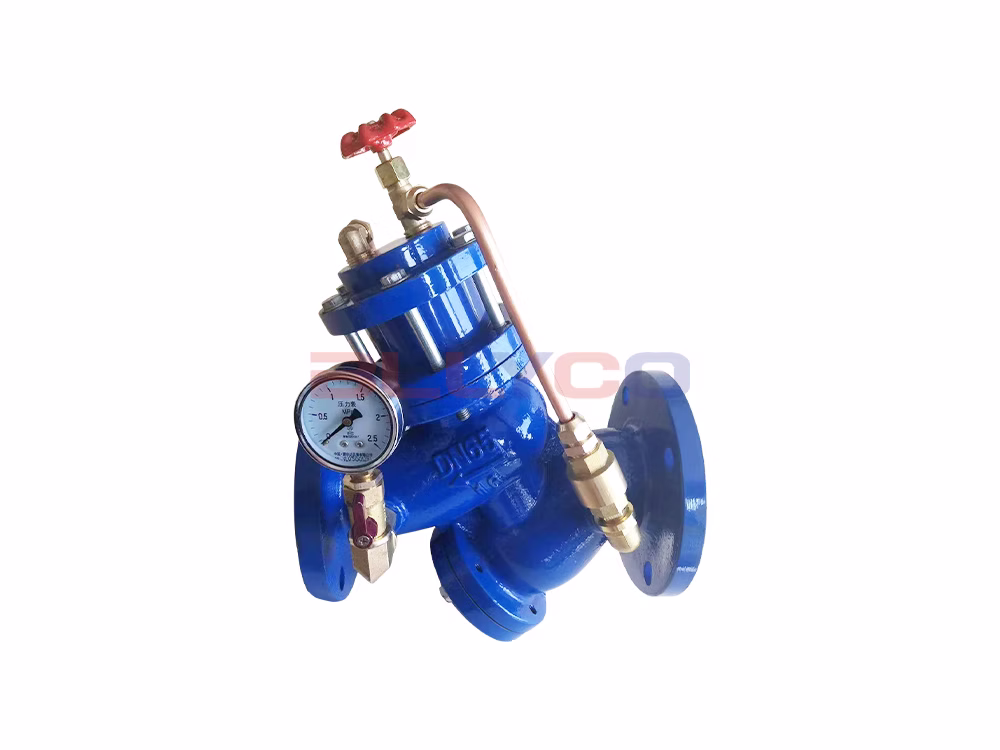

Ductile Iron Piston-Type Slow-Closing Check Valve with Strainer YQ98004-16Q

Product Description

The YQ98004 piston-type slow-closing check valve with strainer is installed on the outlet pipes of pumps in water treatment plants, high-rise building water supply systems, and other water supply systems to prevent backflow of the medium and eliminate water hammer and hydraulic shock. This single valve combines the functions of an electric valve, a check valve, and a water hammer arrester, effectively enhancing the safety and reliability of water supply systems. Our company manufactures the YQ98004 piston-type slow-closing check valve with strainer, which operates smoothly and reliably and eliminates pressure ripples.

How It Works

The YQ98004 piston-type slow-closing check valve with strainer is installed in piping systems of high-rise buildings, fire protection water supply systems, and other water supply systems. When the pump is turned on, water flows through the conduit into the central chamber, pushing the piston upward and opening the main valve. When the pump stops operating, the backflow pressure causes the piston to descend. Since the flow rate through the needle valve at the inlet is lower than that through the ball valve at the outlet, the piston descends slowly, causing the main valve to close gradually.

Performance Features

1. It effectively eliminates water hammer. By integrating the technical principles of slow-opening and fast-closing mechanisms to eliminate water hammer, it prevents both pump-startup and pump-shutdown water hammer.
2. Easy to operate. Simply press the on/off button for the pump motor, and the valve will automatically open and close in accordance with the pump operating procedures.
3. Excellent energy-saving performance. The valve body features a full-bore, streamlined, straight-through design, resulting in low pressure drop, high flow rate, compact size, and light weight.

Applications

The YQ98004 piston-type slow-closing check valve with strainer is primarily installed on the discharge pipelines of pumps at pump stations used for water intake, water supply, pressurization, submersible pumping, and sewage.

Installation Diagram

Product Specifications

Product Size Guide
