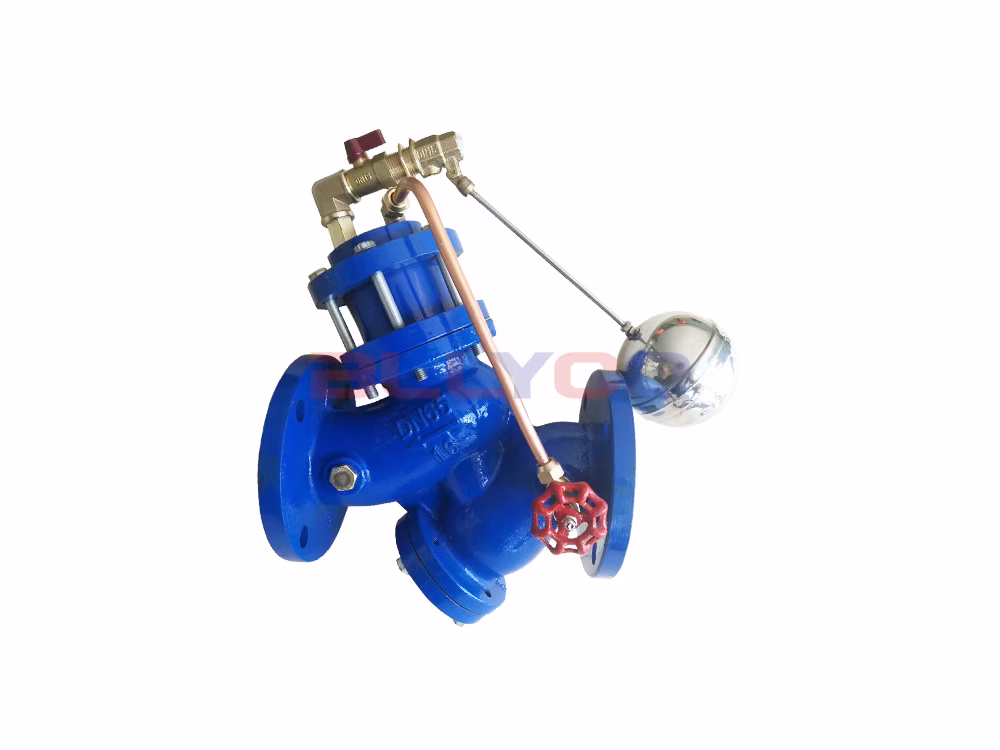

Ductile Iron Piston-Type Remote Control Float Valve with Strainer YQ98003-16Q

Product Description

The YQ98003 piston-type remote control float valve with strainer is primarily installed at the inlet of a water tank or elevated water supply system. When the water level reaches a preset height, the float-operated pilot valve controls the main valve to close the inlet and stop water supply; when the water level drops, the float-operated pilot valve controls the main valve to open the inlet and fill the tank, thereby achieving automatic water replenishment. It provides precise level control unaffected by water pressure. The piston-type remote control float valve with strainer can be installed in any position according to the height of the tank and available space, and features a long service life. The piston-type valve offers reliable performance, high strength, and smooth operation. It closes tightly and reliably; the valve body features a streamlined design that minimizes fluid resistance and maximizes flow rate. It is easy to use and maintain: the main valve is installed outside the tank, facilitating commissioning, inspection, and simple maintenance.

How It Works

The YQ98003 piston-type remote control float valve with strainer uses the opening and closing of the float valve to control the up-and-down movement of the piston in the sensing element, thereby controlling the opening and closing of the control valve. When the float valve opens, the control valve opens as well, supplying water to the reservoir or water tower; when the float valve closes, the control valve also closes, stopping the water supply.

Performance Features

1. Non-traditional float-based control—safe and reliable.
2. This valve must be installed outside the pool to facilitate adjustment and maintenance and to avoid the danger of entering the pool to perform these tasks.
3. The flexible, soft-sealed design ensures a reliable, completely leak-proof seal.
4. Y-shaped wide-body valve chamber, low flow resistance, high cavitation resistance, and silent operation.
5. It comes equipped with a built-in filter and a shock-resistant pressure gauge, which reduces the installation dimensions by approximately 40 percent, minimizes the space required, and lowers investment costs.
6. All exterior surfaces are coated with an eco-friendly finish to ensure the product's corrosion resistance and safety.

Applications

The YQ98003 piston-type remote control float valve with strainer is widely used in the inlet pipes of water tanks or reservoirs in industries such as municipal water supply and drainage, fire protection, and industrial and mining enterprises, serving as an automatic water level control valve.

Installation Diagram

Product Specifications

Product Size Guide
