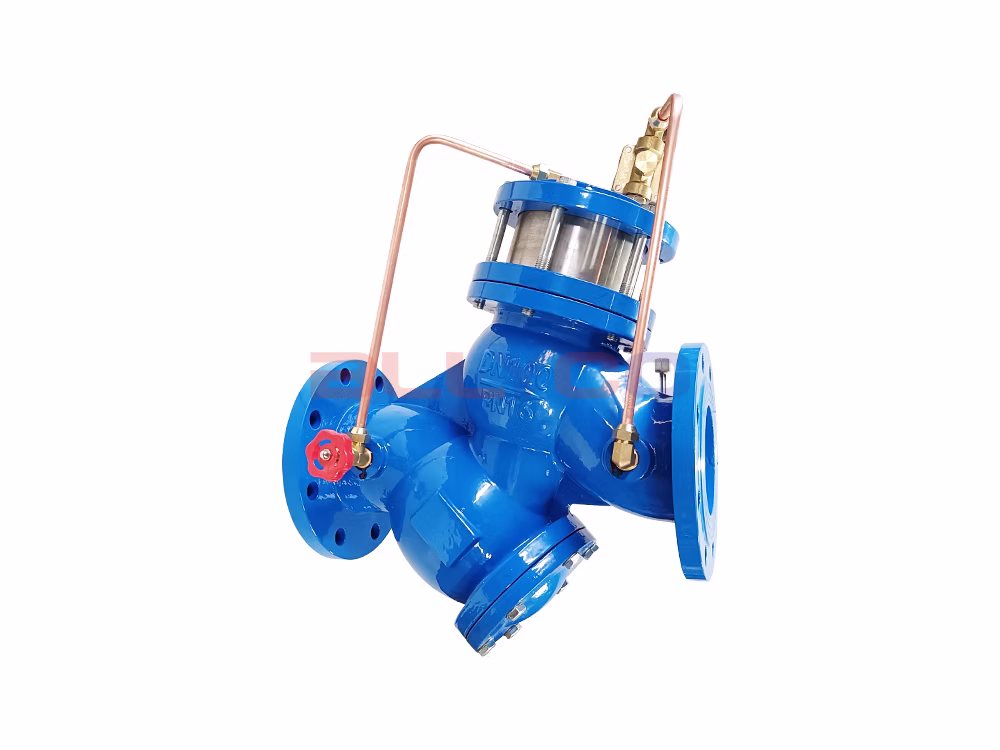

Ductile Iron Piston-Type Adjustable Pressure Reducing Valve with Strainer YQ98001-16Q

Product Description

The YQ98001 piston-type adjustable pressure reducing valve with strainer is an intelligent valve that utilizes the medium's own energy to regulate and control pipeline pressure. When water enters the valve from the inlet, it flows through the needle valve into the main valve's control chamber, and the outlet pressure acts on the pilot valve via a conduit. When the outlet pressure exceeds the pilot valve's spring-loaded setting, the pilot valve closes. Water discharge from the control chamber ceases; at this point, the pressure in the main valve control chamber rises, causing the main valve to close, and the outlet pressure stops rising. When the valve's outlet pressure drops to the pilot valve spring's set pressure, the pilot valve opens, allowing water to drain from the control chamber downstream. Since the drainage rate of the pilot valve system exceeds the inflow rate of the needle valve, the pressure in the main valve control chamber decreases. The inlet pressure then causes the main valve to open. In a steady state, the inflow and outflow of water in the control chamber are equal, the main valve remains at a constant opening, and the outlet pressure remains stable. The outlet pressure does not change in response to variations in inlet pressure or changes in the main valve's outlet flow rate, thereby safely and reliably maintaining the outlet pressure at the set value. This valve provides precise pressure reduction, stable performance, safety and reliability, convenient installation and adjustment, and a long service life. It can be used in domestic water supply, fire protection systems, and industrial water supply systems.

How It Works

The YQ98001 piston-type adjustable pressure reducing valve with strainer uses a pressure-transmitting tube to relay differential pressure signals to the flow control valve, flow-limiting valve, and needle valve, which perform dual-channel control to regulate the pressure in the upper chamber of the main valve's piston. The flow-limiting control valve adjusts the spool to ensure the flow rate downstream of the valve reaches the set value; the lower chamber of the piston contains a throttle orifice that communicates with the downstream side. The valve can be forced to close; the pressure difference across the main valve serves as the driving force for opening and closing the valve. It is primarily used in air conditioning, water supply and drainage, fire protection, and various industrial and mining enterprises—specifically in water supply networks where filtration is required and flow control is necessary. It reduces the upstream pressure to the set downstream pressure, and regardless of changes in upstream pressure or flow rate, the preset downstream pressure remains constant.

Performance Features

1. The valve body features a streamlined, wide Y-type design, resulting in low pressure loss, high flow capacity (a 25% increase in flow rate compared to conventional barrel-shaped control valves), strong resistance to cavitation, and reduced noise.
2. The hydraulic cylinder-type piston drive ensures smooth and reliable operation. It features a buffering effect during operation, resulting in minimal noise. This design overcomes the drawbacks of the diaphragm-type system—such as vibration caused by sudden changes in pressure and flow rate, excessive noise, and the susceptibility of the diaphragm to rupture.
3. This convenient and practical drive-seal mechanism combines three key functions—drive, guidance, and sealing—and is completely independent of the valve body. During operation, the valve body is installed in the piping system. The entire mechanism can also be removed, making maintenance and replacement of parts extremely convenient. The valve is designed with three positioning and guidance mechanisms—namely, the piston, the valve stem, and the guide frame—which ensure more accurate and reliable valve operation and eliminate the instability caused by single-point positioning found in other valves. The piston utilizes standard double-Y-type self-sealing rubber O-rings, ensuring a secure and reliable seal. A spring-loaded mechanism prevents vibrations caused by sudden changes in fluid pressure or flow rate and automatically closes the valve when there is no flow to prevent backflow of the medium. The hydraulic cylinder provides a cushioning effect, reducing the impact of water hammer on the piping network.

Applications

The YQ98001 piston-type adjustable pressure reducing valve with strainer provides precise pressure reduction, stable performance, and is safe, reliable, and easy to install and adjust, with a long service life. It is suitable for domestic water supply, fire protection systems, and industrial water supply systems.

Installation Diagram

Product Specifications

Product Size Guide
