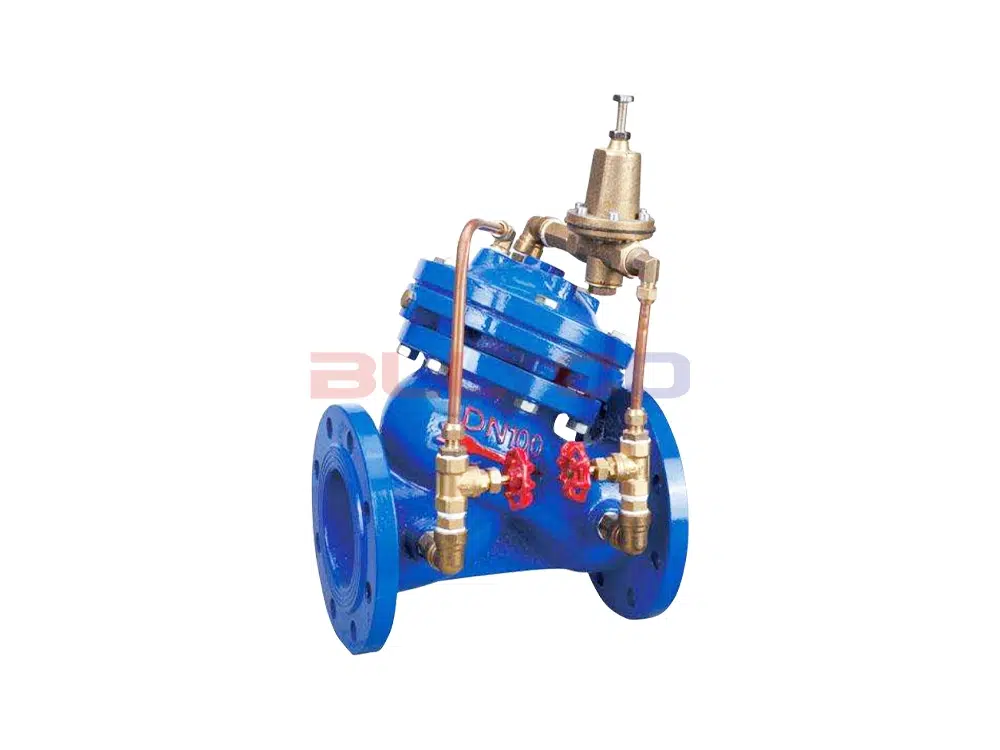

Ductile Iron Diaphragm-Type Pressure-Reducing and Stabilizing Valve YX741X-16Q

Product Description

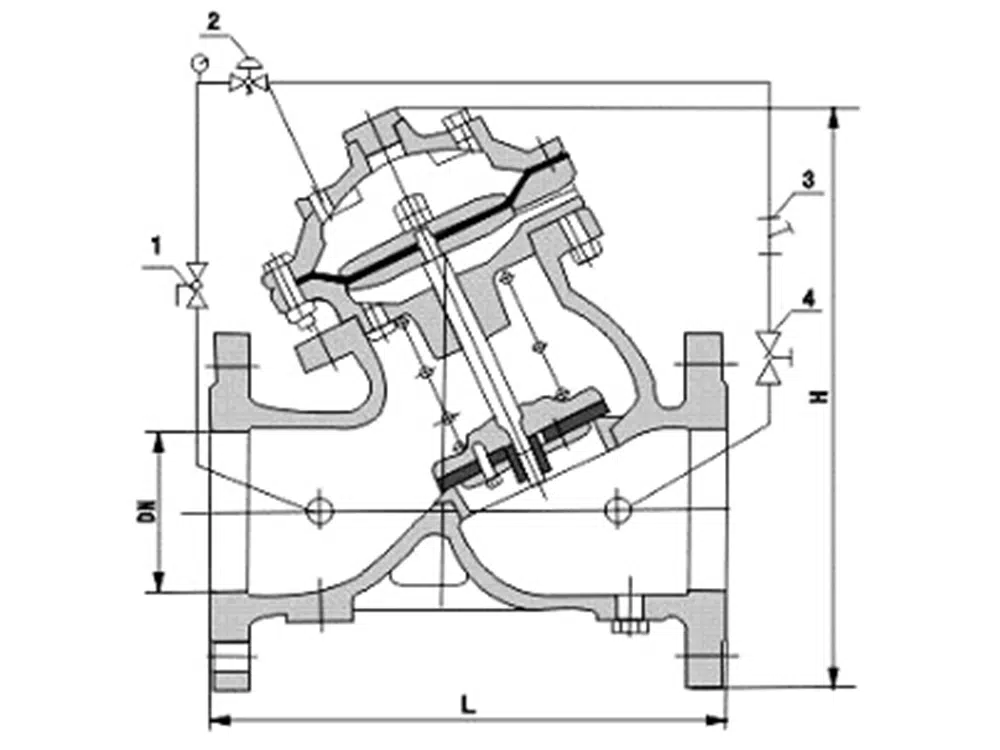

The YX741X diaphragm-type pressure-reducing and stabilizing valve consists of a main valve, a regulating valve, a pilot valve, a ball valve, and a piping system. The main valve body features a full-bore, straight-through, streamlined design and is available in two configurations: diaphragm-type or piston-type. This product sets the outlet pressure by adjusting the spring-loaded pressure of the pilot valve and the opening of the needle valve, and stabilizes the outlet pressure through the feedback mechanism between the piping system and the control chamber.

How It Works

When water is supplied from the inlet, it flows through the needle valve into the main valve control chamber. The outlet pressure is transmitted to the pilot valve via a conduit. When the outlet pressure exceeds the pilot valve's set point, the pilot valve closes, stopping drainage from the control chamber. At this point, the pressure in the main valve control chamber rises, causing the main valve to close, and the outlet pressure ceases to rise. When the outlet pressure drops to the pilot valve's set pressure, the pilot valve opens, allowing water to drain from the control chamber downstream. Since the pilot valve's drainage rate exceeds the needle valve's inflow rate, the pressure in the main valve control chamber decreases, and the inlet pressure causes the main valve to open. In a steady state, the inflow and outflow in the control chamber are equal, the valve opening remains constant, and the outlet pressure remains constant. The outlet pressure can be set by adjusting the pilot valve spring.

Key Features

1. Pressure control is stable and reliable. The pilot valve and main valve operate continuously, ensuring that downstream pressure changes are continuous and smooth, with minimal influence from inlet pressure.
2. Easy to operate. Once the operating pressure is set, the main valve automatically adjusts when upstream pressure or flow rate changes, thereby stabilizing the downstream pressure.
3. The valve body features a full-bore, straight-through, streamlined design. It has low hydraulic loss and offers excellent energy savings.

Features and Uses

This valve is typically installed upstream in a water supply network system to reduce and stabilize the pressure in the downstream network or equipment. This series of valves is widely used for water pressure control in high-rise buildings, residential areas, and other water supply network systems.

Product Specifications

Product Size Guide
