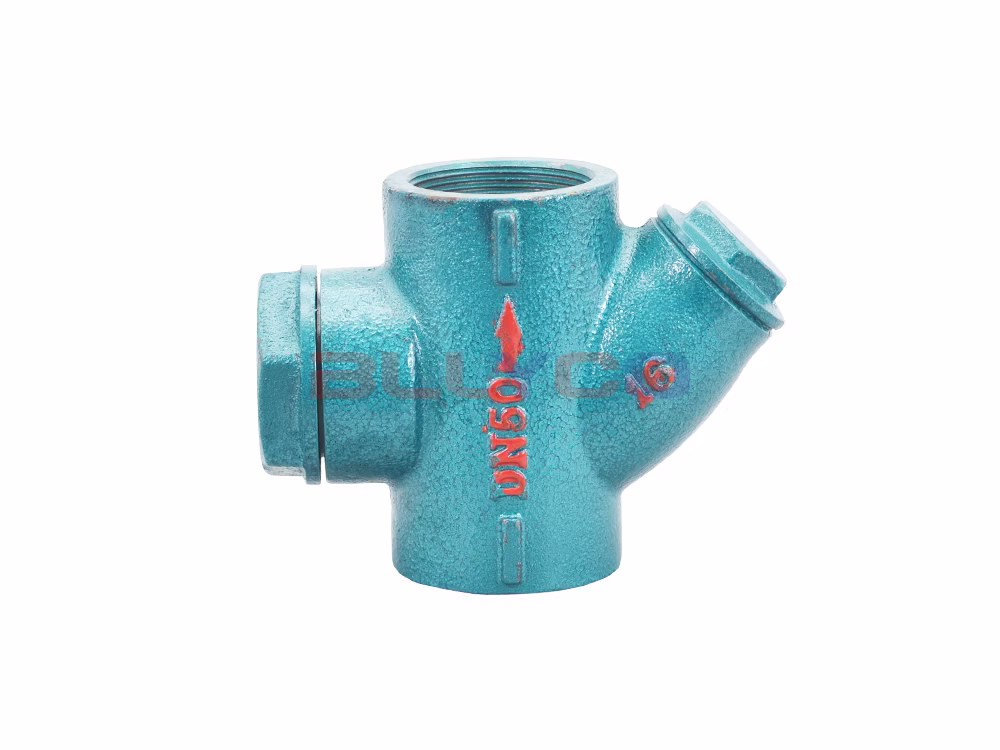

Name: Cast Iron Female‑Threaded Disc-Type Steam Trap CS19H-16
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Iron Female‑Threaded Disc-Type Steam Trap CS19H-16

Cast Iron Female‑Threaded Disc-Type Steam Trap CS19H-16

Product Model: CS19H-16
Valve Body Material: Cast Iron
Nominal Pressure: ≤1.6 MPa
Applicable Media: Steam, condensate, etc.
Operating Temperature: ≤200°C

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The CS19H-16 disc-type steam trap is designed to automatically drain condensate generated in steam pipelines and heat-using equipment, ensuring unobstructed flow and improving thermal efficiency. It is widely used in the petroleum, chemical, food, printing and dyeing, textile, and pharmaceutical industries.

Product Features

It has a simple structure, is compact, and is lightweight.
Wide operating pressure range.
Easy to install and not restricted by location.

Product Specifications

Product Model	CS19H-16
Valve Body Material	Cast Iron
Nominal Pressure	≤1.6 MPa
Applicable Media	Steam, condensate, etc.
Operating Temperature	≤200℃

Product Size Guide

Nominal Diameter	L	H
DN15	90	125
DN20	100	128
DN25	100	132
DN32	110	153
DN40	120	165
DN50	120	170

Continuous Condensate Discharge Rate Table [Unit: kg/h]

Operating Pressure Differential	DN15	DN20/25	DN32/40/50	DN32/40/50
0.03MPa	183	250	300	450
0.06MPa	220	300	350	580
0.1MPa	253	380	500	690
0.2MPa	300	500	600	870
0.4MPa	385	600	780	1100
0.6MPa	450	710	900	1270
0.8MPa	510	770	1000	1400
1.0MPa	570	830	1080	1500
1.2MPa	630	890	1120	1600
1.4MPa	690	950	1160	1760
1.6MPa	740	1000	1200	1800
