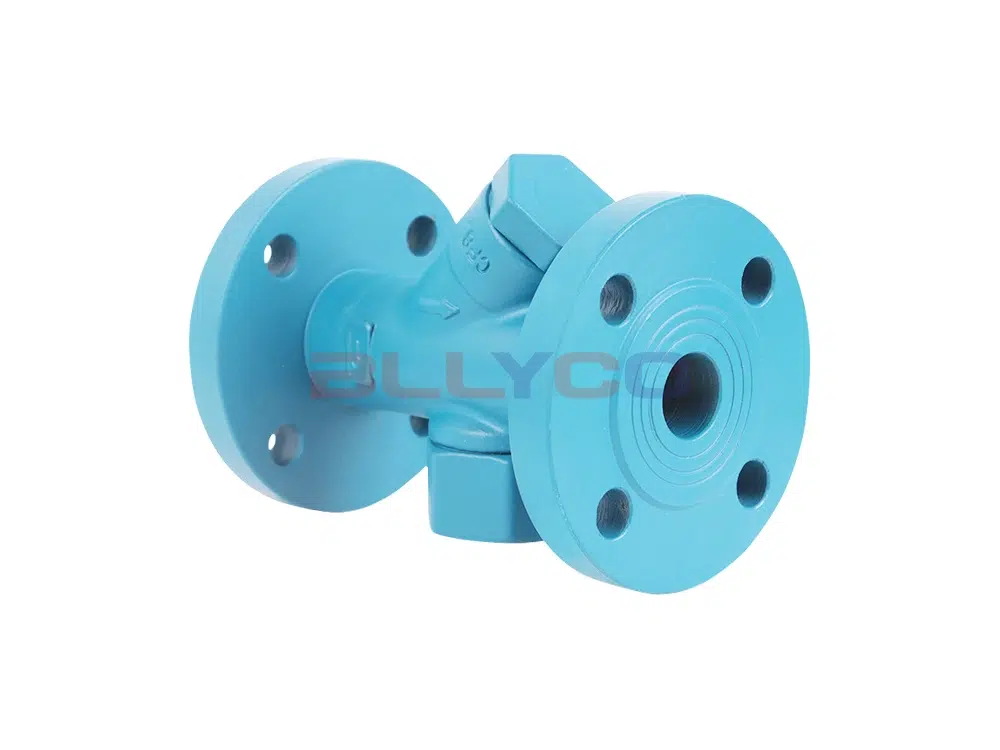

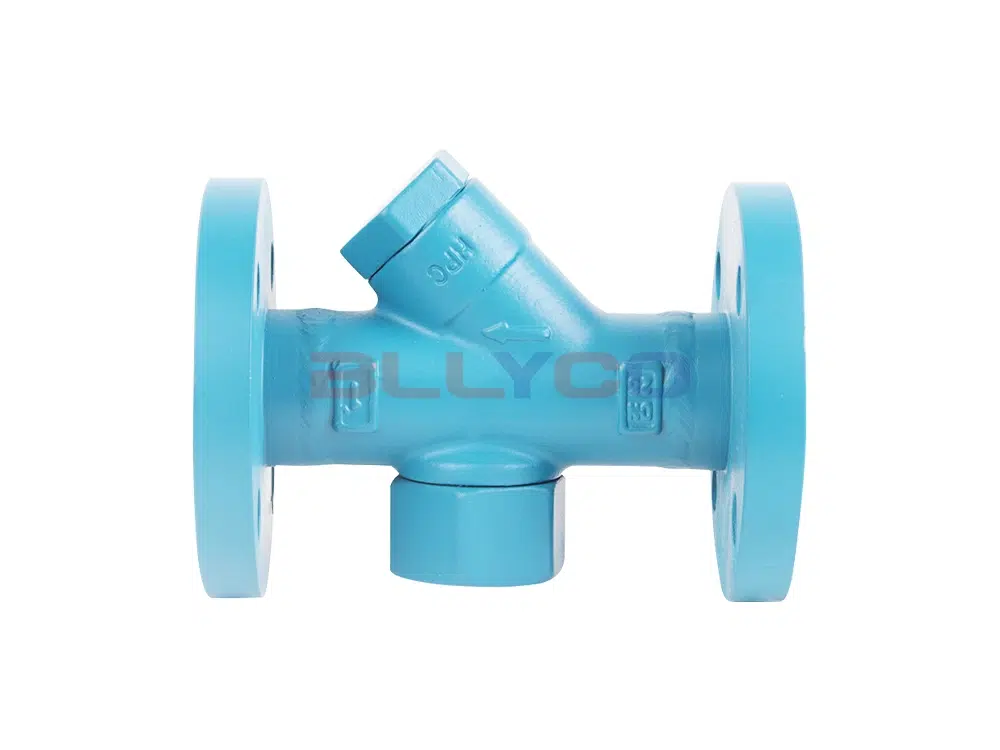

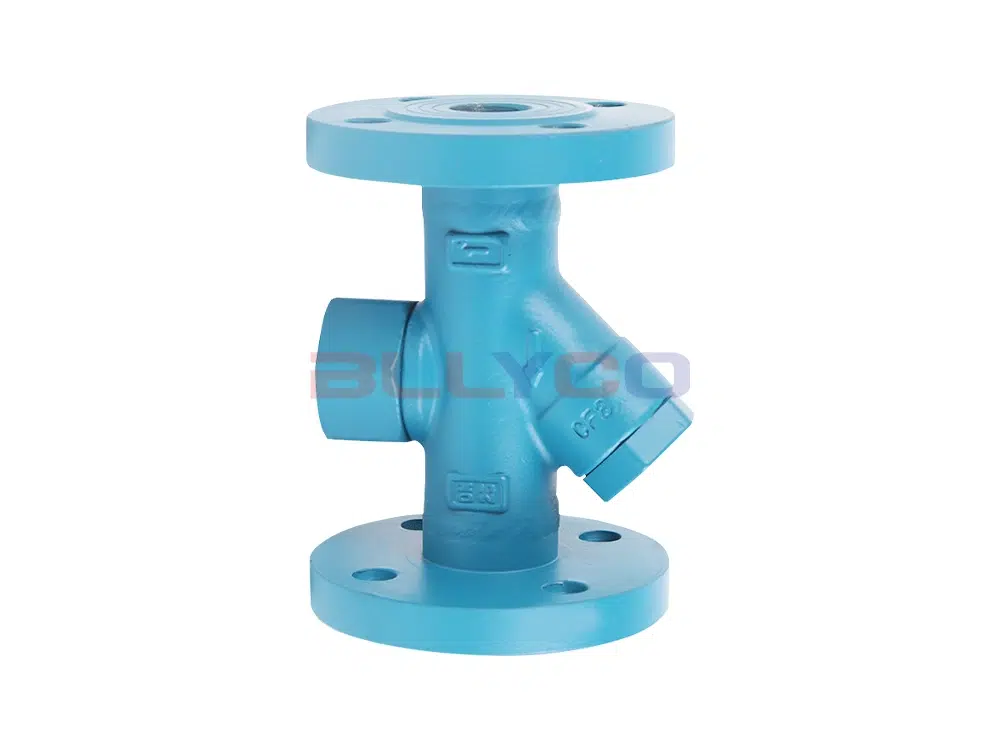

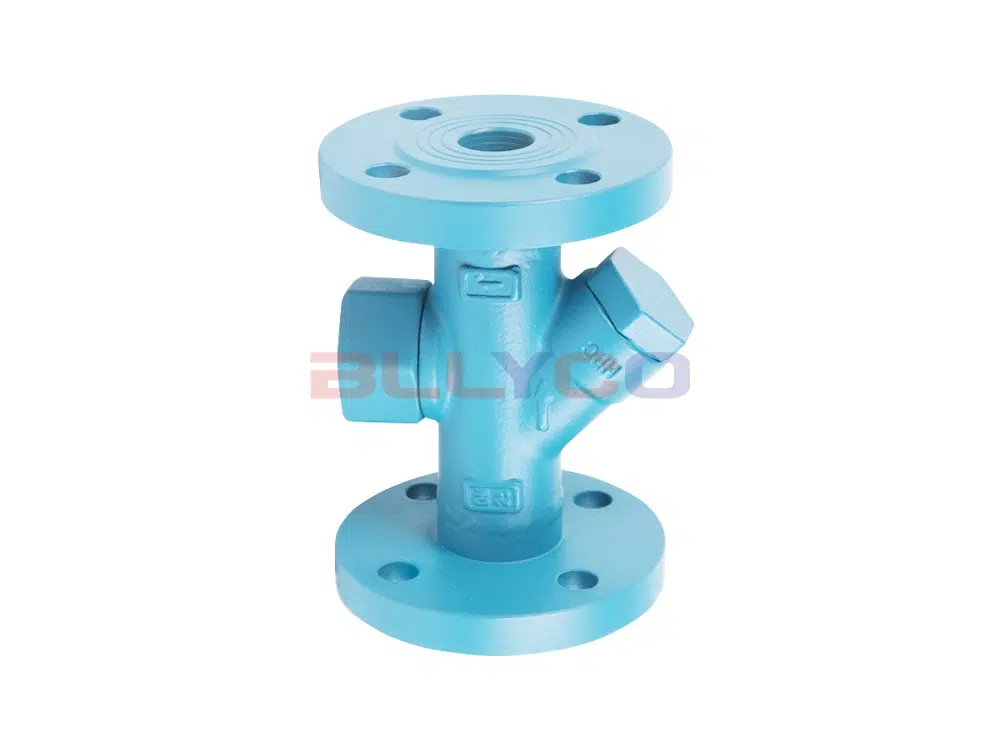

Cast Steel Thermodynamic Steam Trap CS49H-16C

Product Description

The CS49H disc-type steam trap utilizes thermodynamic principles: when the condensate flow rate is low, secondary evaporation occurs, and differences in viscosity and sealing properties between the condensate and steam drive the opening and closing of the valve. Equipped with a steam or air insulation device, it is unaffected by ambient temperature, which reduces the frequency of operation and extends its service life. It is equipped with a strainer and a blowdown port. The valve operates sensitively and reliably, with a high condensate discharge capacity. It is suitable for steam blocking and drainage in high-temperature steam main lines and superheated steam networks.

Structural Features

The CS49H disc-type steam trap features a well-designed structure, compact size, light weight, and easy installation. It is freeze-resistant, withstands water hammer, and resists overheating. Equipped with a stainless steel strainer, it is easy to maintain, operates responsively, provides excellent sealing performance, and has a long service life.

How It Works

The CS49H disc-type steam trap utilizes the different thermodynamic properties of steam and condensate—specifically, the changes in their flow velocity and volume as they pass through the valve orifice—to drive the valve disc to open and close the seat orifice, thereby blocking steam and draining condensate.

Product Specifications

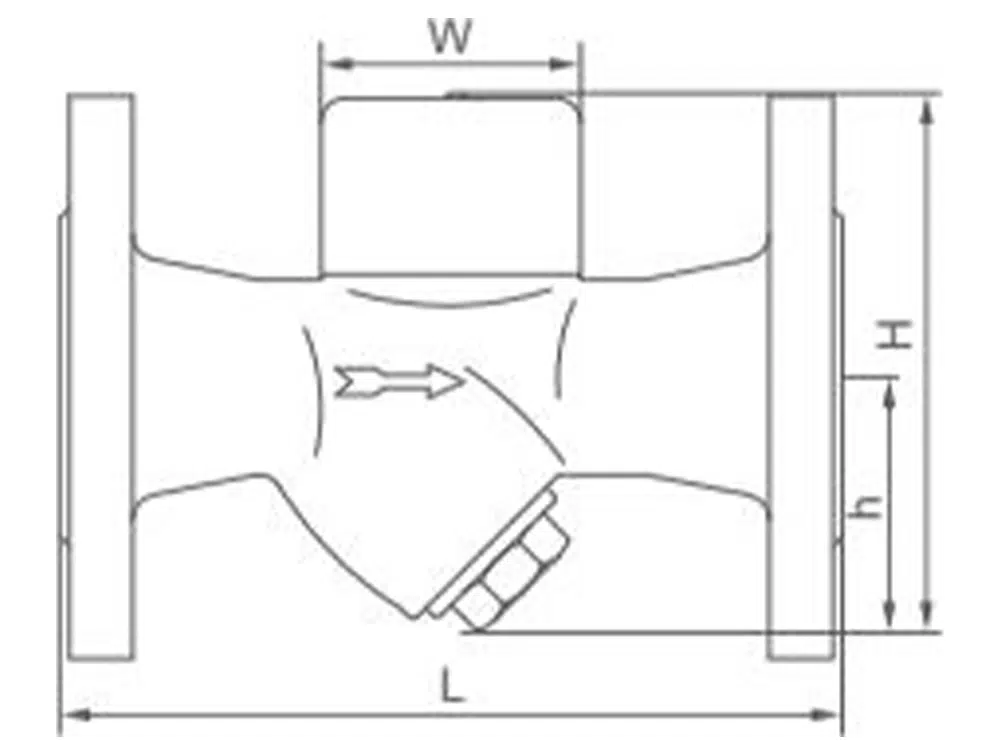

Product Size Guide
