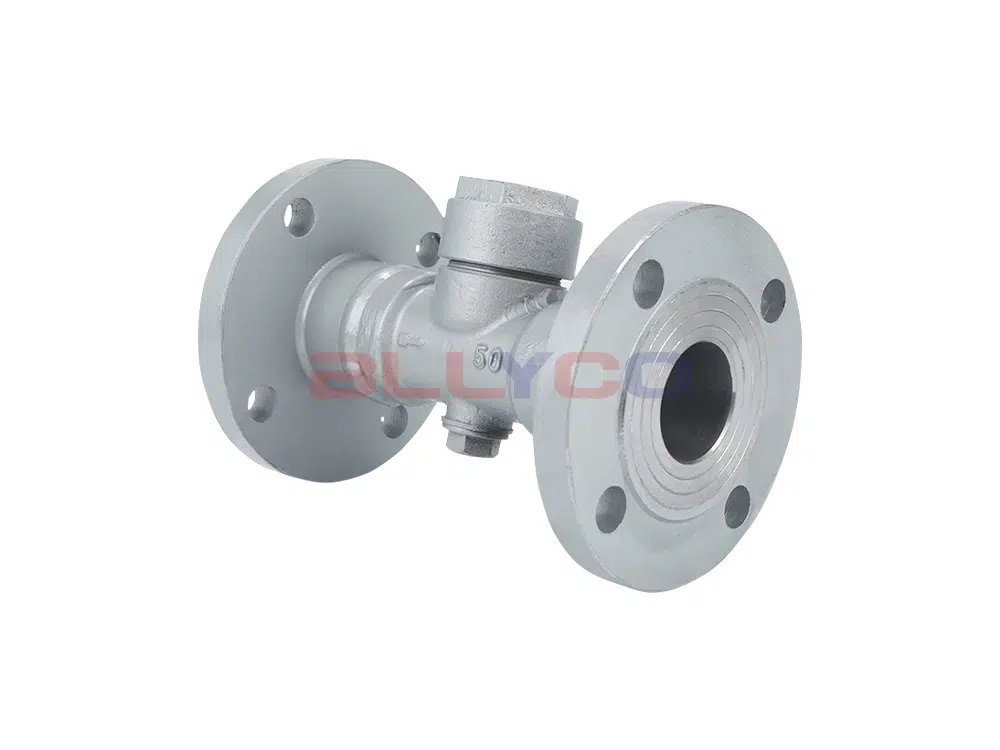

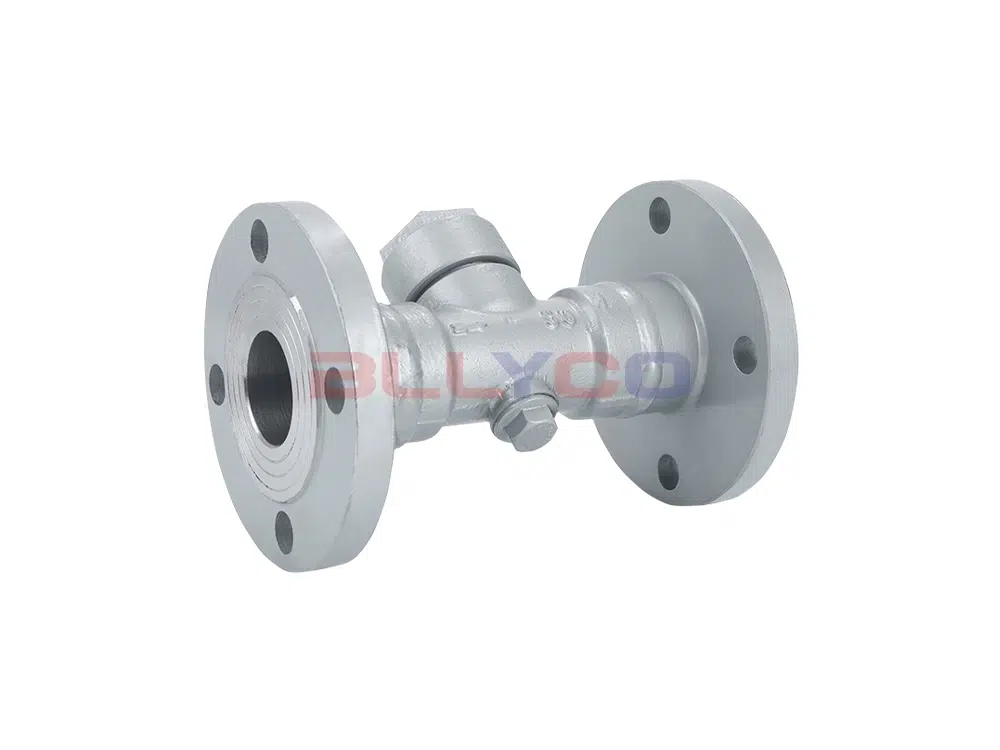

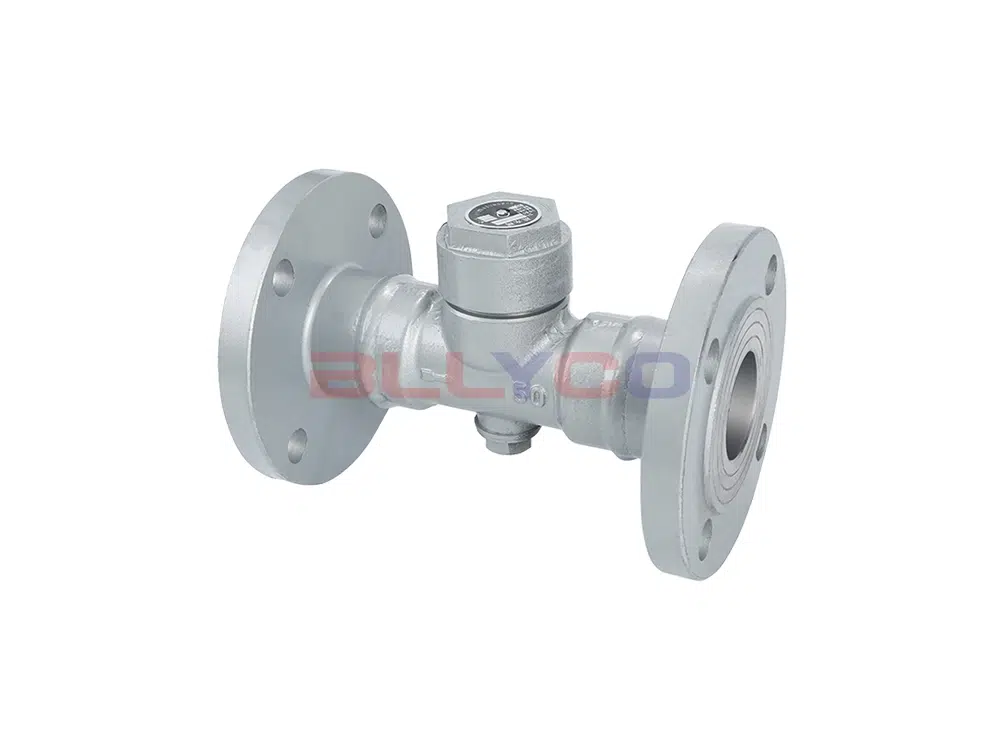

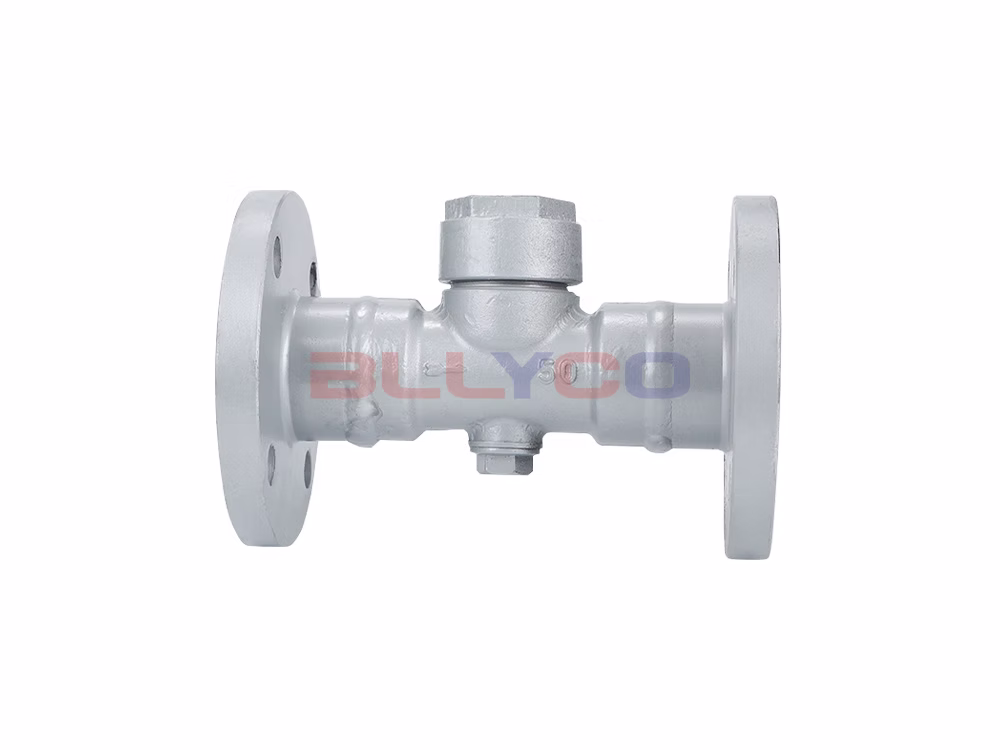

Cast Steel Disc-Type Steam Trap CS49H-16C

Product Description

The CS49H disc-type steam trap utilizes thermodynamic principles: when the condensate discharge rate is low, secondary evaporation occurs; differences in viscosity and sealing properties between the condensate and steam drive the opening and closing of the valve. Equipped with a steam or air insulation device, it is unaffected by ambient temperature, reducing the frequency of operation and extending its service life. It is fitted with a strainer and a blow-off. The valve operates sensitively and reliably, with a high condensate discharge capacity. It is suitable for steam blocking and drainage in high-temperature steam mainlines and superheated steam networks.

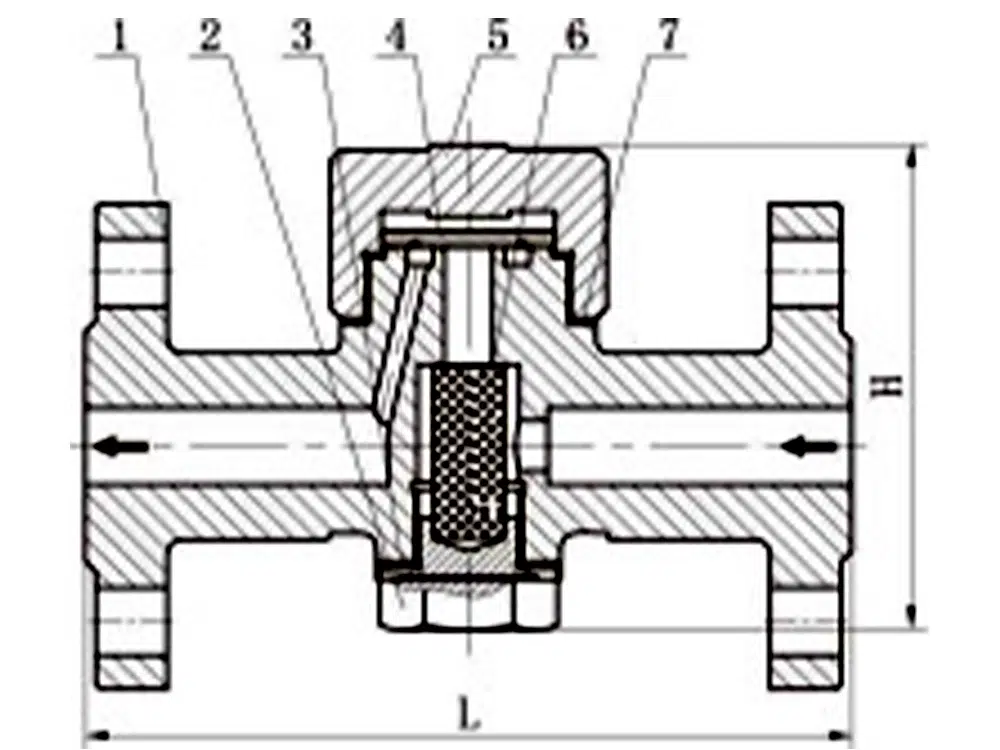

Structural Features

The CS49H disc-type steam trap features a well-designed structure, compact dimensions, light weight, and easy installation. It is freeze-resistant, withstands water hammer and overheating, is fitted with a stainless steel strainer, is easy to maintain, operates responsively, offers excellent sealing performance, and has a long service life.

How It Works

The CS49H disc-type steam trap utilizes the differing thermodynamic properties of steam and condensate—namely the changes in their flow velocity and volume as they pass through the valve orifice—to drive the valve disc to open and close the seat orifice, thereby blocking steam and draining condensate.

Product Specifications

Product Size Guide
