Product Description

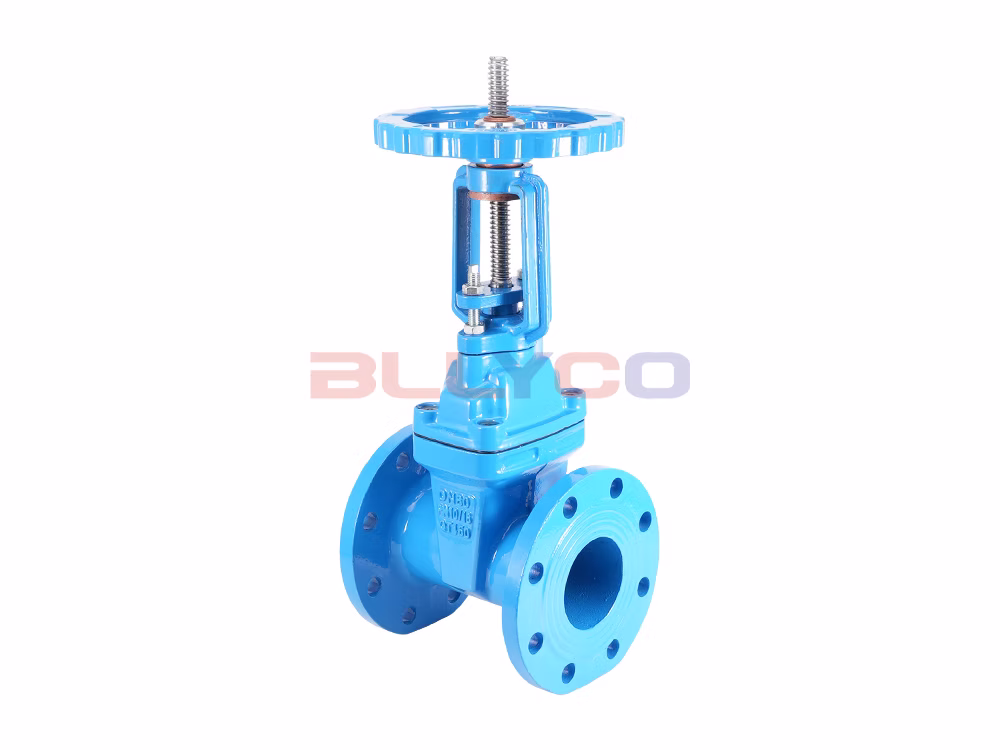

The Z41X-16Q Soft-Sealed Rising Stem Sluice Gate Valve not only offers the advantages of an elastic-seated gate valve but also provides a clear visual indication of the valve’s opening position, ensuring rapid and reliable operation. As a result, it is commonly used in fire protection and industrial systems and is typically installed at a height above ground level. It is widely used in liquid pipelines across various sectors, including water supply, sewage, construction, petroleum, chemical, food, pharmaceutical, light industry and textiles, power, marine, metallurgy, and energy systems, serving as a regulating and shutoff device.
Product Features
- Flat-bottomed valve seat, preventing debris buildup.
- The valve disc is fully coated with nitrile rubber.
- The valve internals are made of stainless steel, making them suitable for use in sewage systems and harsh operating environments.
- Compact and lightweight, making it easy to install and maintain.
- The valve stem is sealed with three O-rings, which significantly reduces frictional resistance during opening and closing.
Product Specifications
Product Model | Z41X-16Q |
Valve Body Material | Ductile Iron |
Valve Disc Material | Ductile Iron + NBR |
Nominal Pressure | ≤1.6 MPa |
Applicable Media | Water, etc. |
Operating Temperature | ≤80℃ |
Product Size Guide
Nominal Diameter | L | D | K | d | n×Ф |
DN40 | 178 | 150 | 110 | 88 | 4-18 |
DN50 | 178 | 160 | 125 | 100 | 4-18 |
DN65 | 190 | 180 | 145 | 120 | 4-18 |
DN80 | 203 | 195 | 160 | 135 | 8-18 |
DN100 | 229 | 215 | 180 | 155 | 8-18 |
DN125 | 254 | 245 | 210 | 185 | 8-18 |
DN150 | 267 | 280 | 240 | 210 | 8-23 |
DN200 | 292 | 335 | 295 | 265 | 12-23 |
DN250 | 330 | 405 | 355 | 320 | 12-25 |
DN300 | 356 | 460 | 410 | 375 | 12-25 |
DN350 | 380 | 520 | 470 | 435 | 16-25 |
DN400 | 405 | 580 | 525 | 485 | 16-30 |
DN450 | 430 | 640 | 585 | 545 | 20-30 |
DN500 | 455 | 705 | 650 | 608 | 20-34 |
DN600 | 507 | 840 | 770 | 718 | 20-41 |
