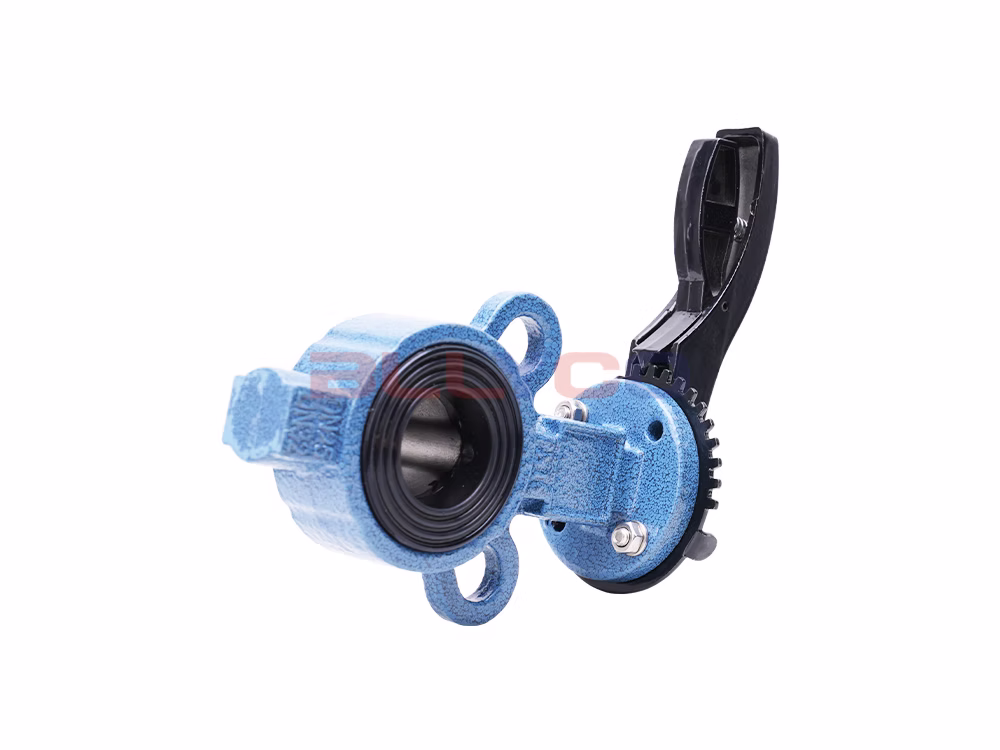

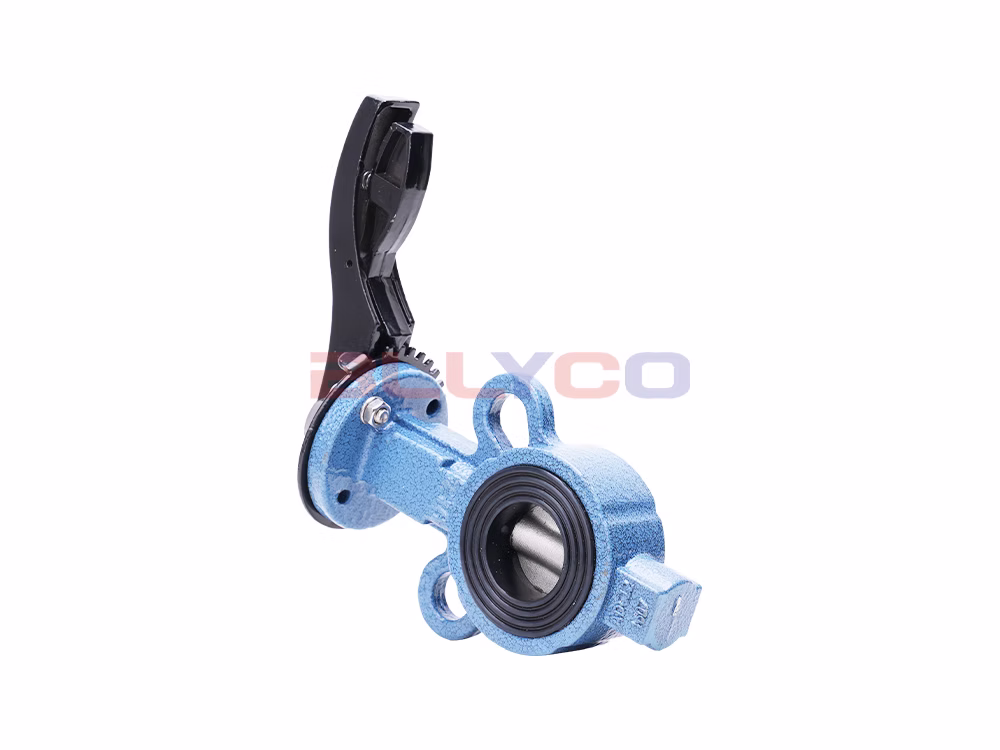

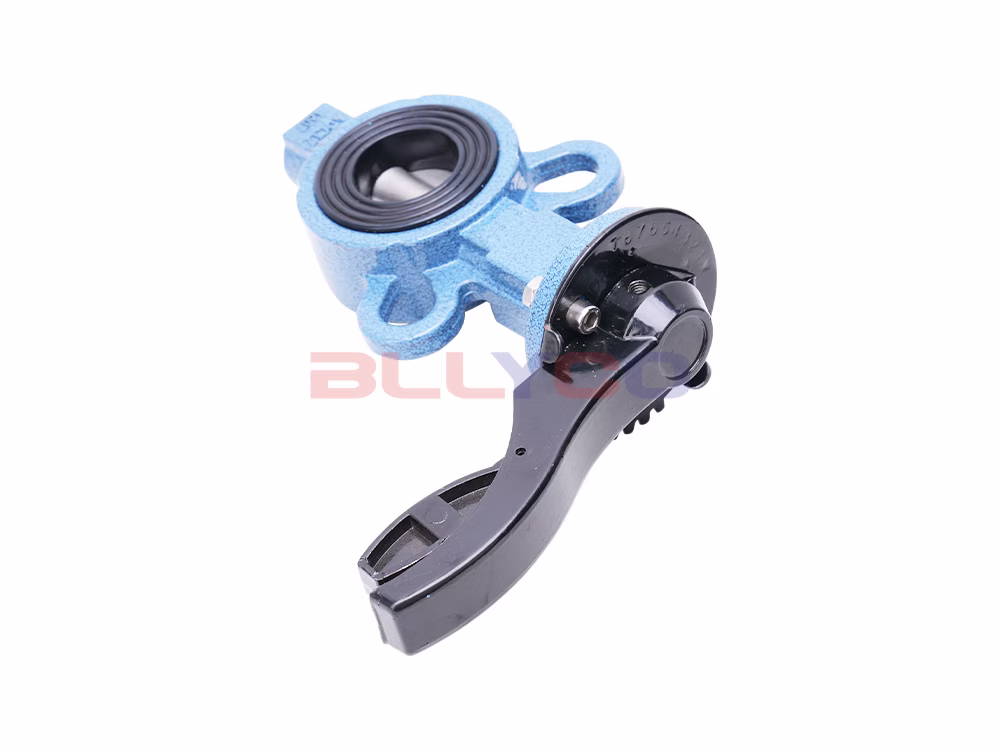

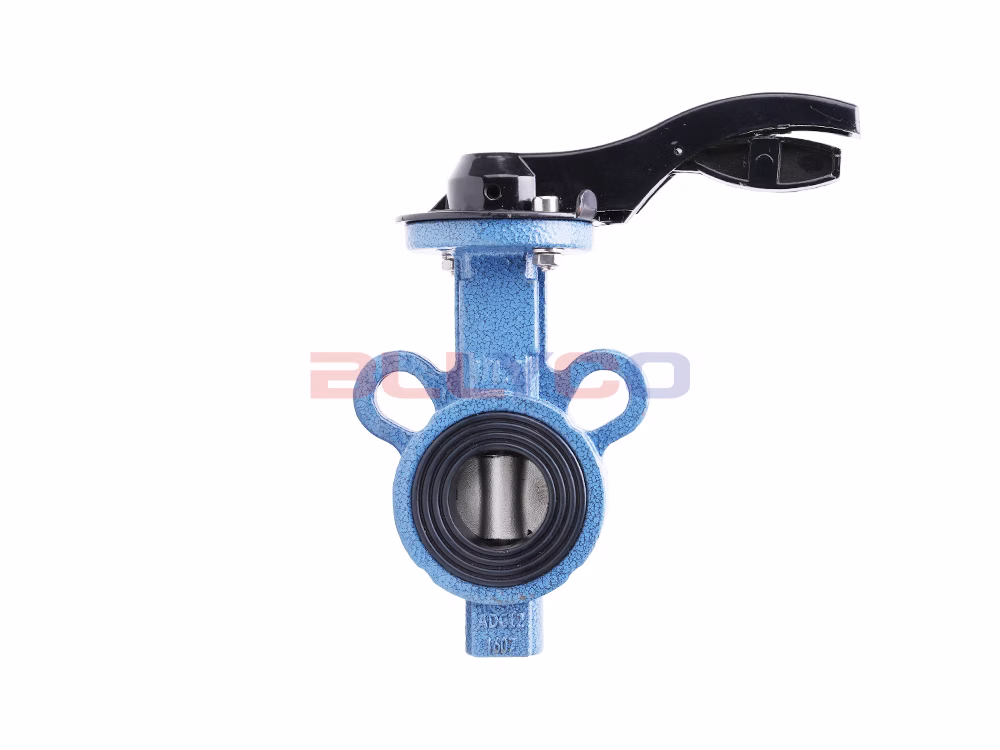

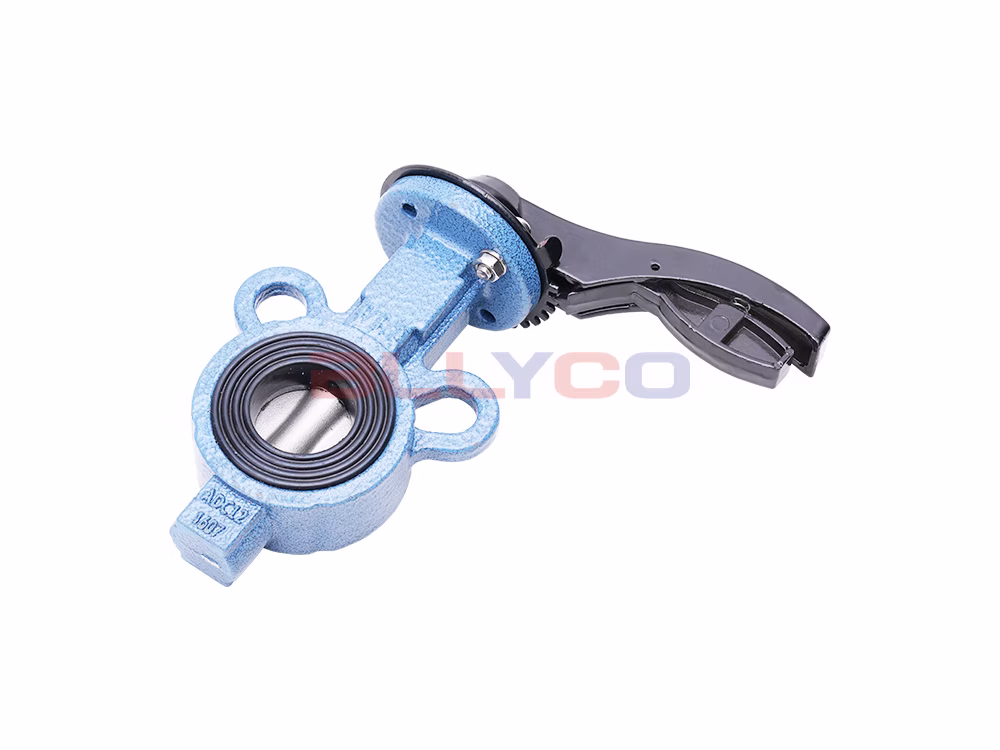

Ductile Iron Small-Diameter Aluminum-Handled Wafer-Type Butterfly Valve D71X-16Q

Product Description

The D71X-16Q small-diameter aluminum-handled wafer-type butterfly valve is suitable for use in clean piping systems in the food, pharmaceutical, and chemical industries, as well as in industrial environmental protection, water treatment, high-rise buildings, and water supply and drainage systems for opening, closing, or regulating the flow of media. The disc of the handle-operated wafer-type butterfly valve is mounted perpendicular to the diameter of the pipeline. Within the cylindrical passage of the butterfly valve body, the disc-shaped butterfly plate rotates around its axis at angles ranging from 0° to 90°; when rotated to 90°, the valve is in the fully open position.

Product Features

1. Compact and lightweight, it is easy to assemble, disassemble, and maintain, and can be installed in any position.
2. The design is simple and compact, and it opens and closes quickly with a 90° rotation.
3. Low operating torque; effortless and lightweight.
4. The flow characteristics approach a linear trend, and the control performance is good.
5. It has undergone tens of thousands of opening and closing cycles and has a long service life.
6. A complete seal was achieved, with zero gas leakage detected during testing.

Product Specifications

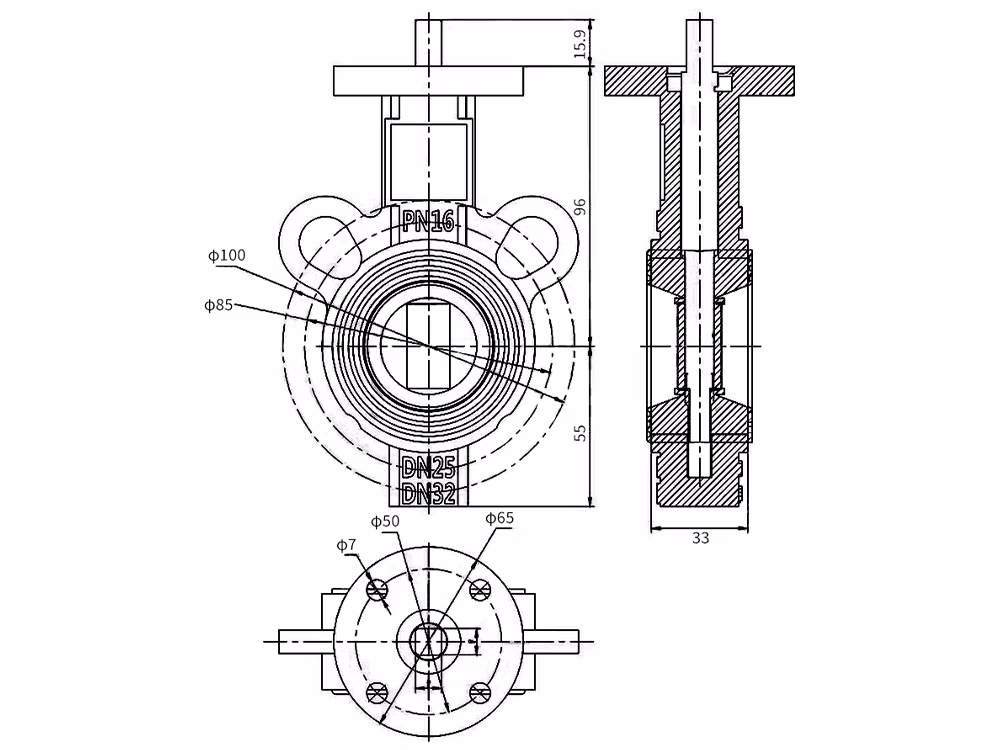

Product Size Guide
