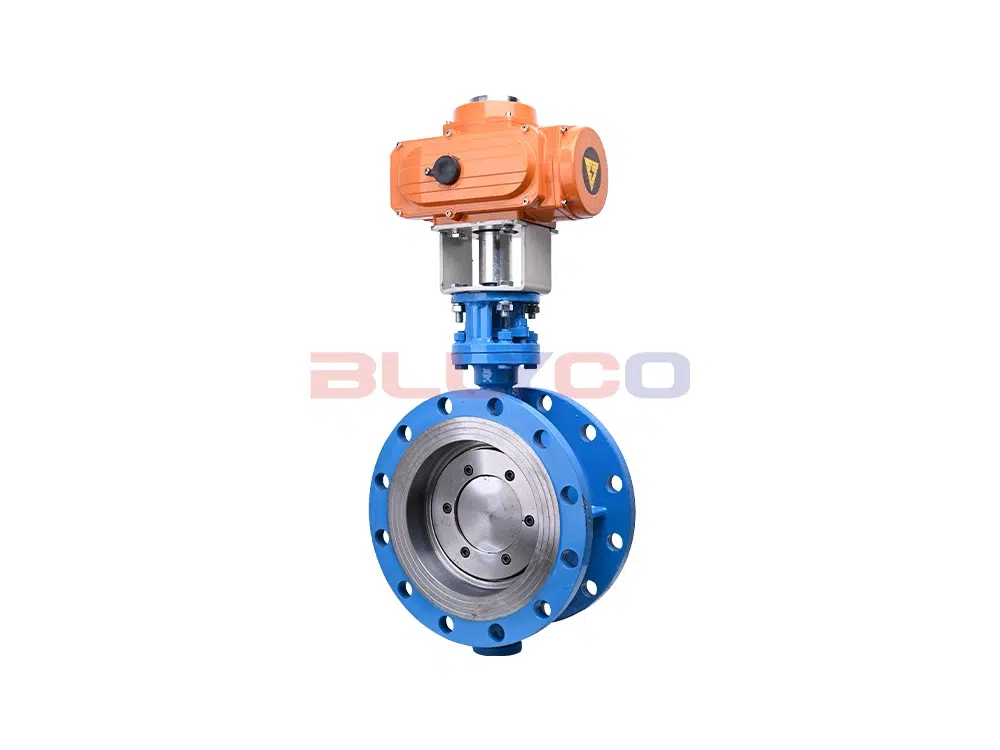

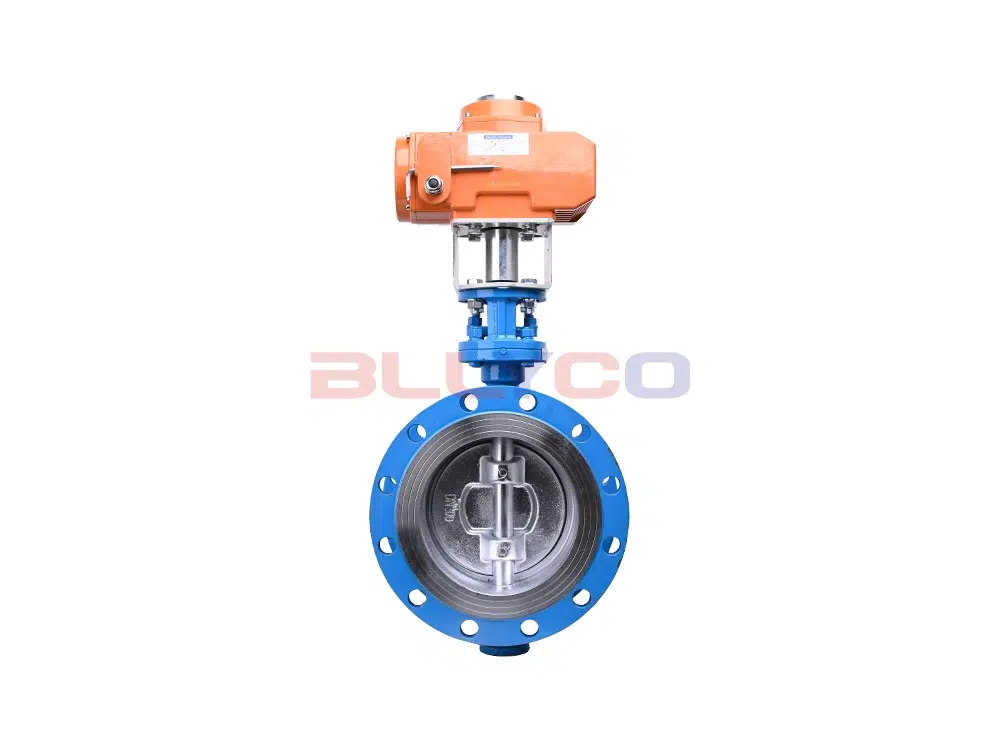

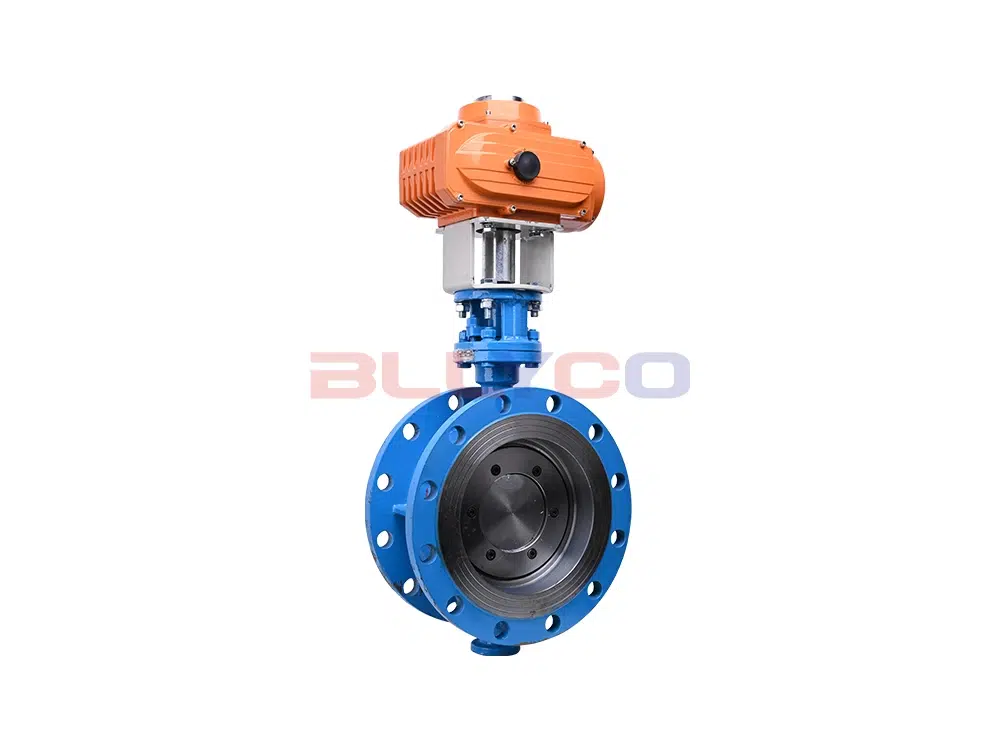

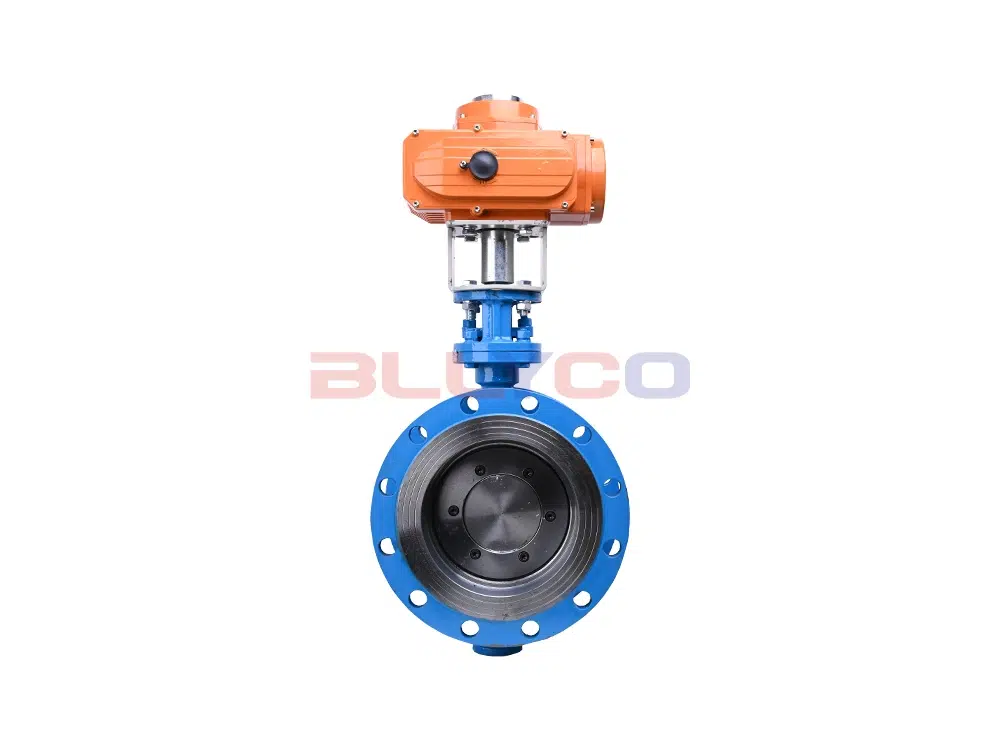

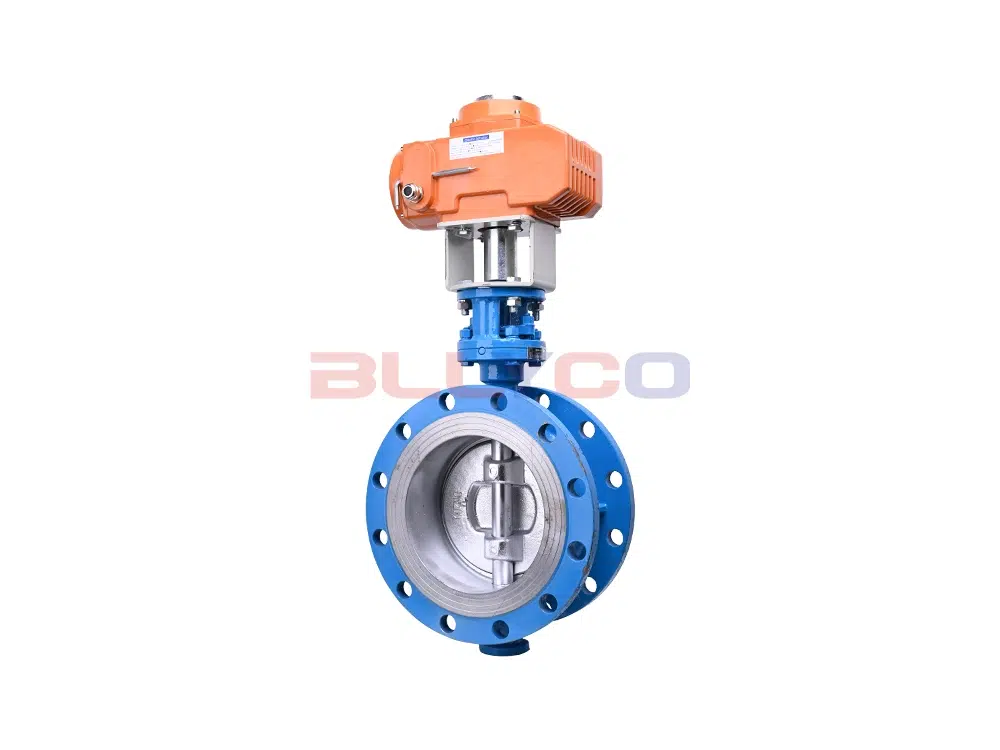

Cast Steel Electric Triple-Eccentric Hard-Seal Butterfly Valve D943H-16C

Product Description

The D943H/W Electric Triple-Eccentric Hard-Seal Butterfly Valve features a precision J-shaped elastic seal ring and a triple-offset multi-layer metal hard-seal structure. It is widely used in industrial pipelines in the metallurgy, power, petrochemical, water supply and drainage, and municipal construction sectors—where the medium temperature is ≤325℃—for regulating flow and shutting off fluid. This valve employs a triple-offset design, with both the seat and the disc sealing surfaces made of stainless steel with varying hardness levels, ensuring excellent corrosion resistance and a long service life. The valve features bidirectional sealing capability and complies with the national GB/T 13927-92 valve pressure testing standard.

Product Features

1. The butterfly valve features a triple-offset sealing design, resulting in virtually no wear between the seat and the disc, and providing a seal that tightens as the valve closes.
2. The sealing rings are made of stainless steel, offering the dual advantages of both a rigid metal seal and an elastic seal. They provide excellent sealing performance under both low and high temperatures, and are characterized by corrosion resistance and a long service life.
3. The sealing surface of the disc is overlaid with cobalt-based cemented carbide, making it wear-resistant and ensuring a long service life.
4. Large-size butterfly valves feature a truss structure, offering high strength, a large flow area, and low flow resistance.
5. This valve features bidirectional sealing, so it can be installed in any direction regardless of the flow direction of the medium or spatial orientation.

Applications

Primarily used for flow control and pipeline isolation in water, air, natural gas, petroleum products, and mildly corrosive media, these valves are suitable for applications in the metallurgy, power generation, petroleum, and chemical industries.

Product Specifications

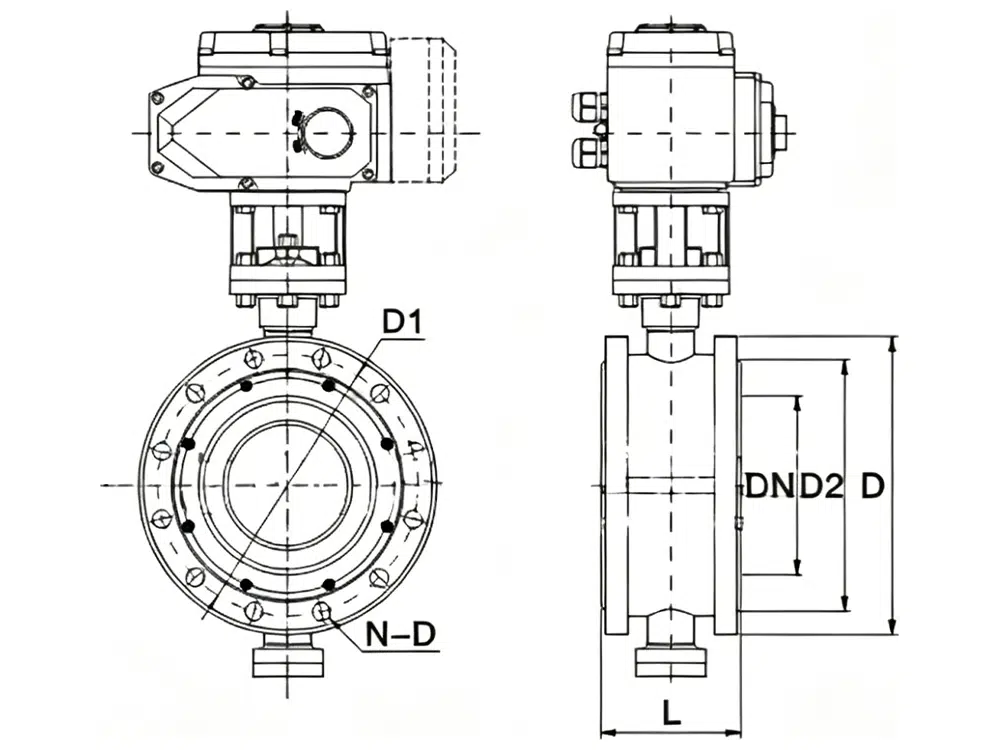

Product Size Guide
