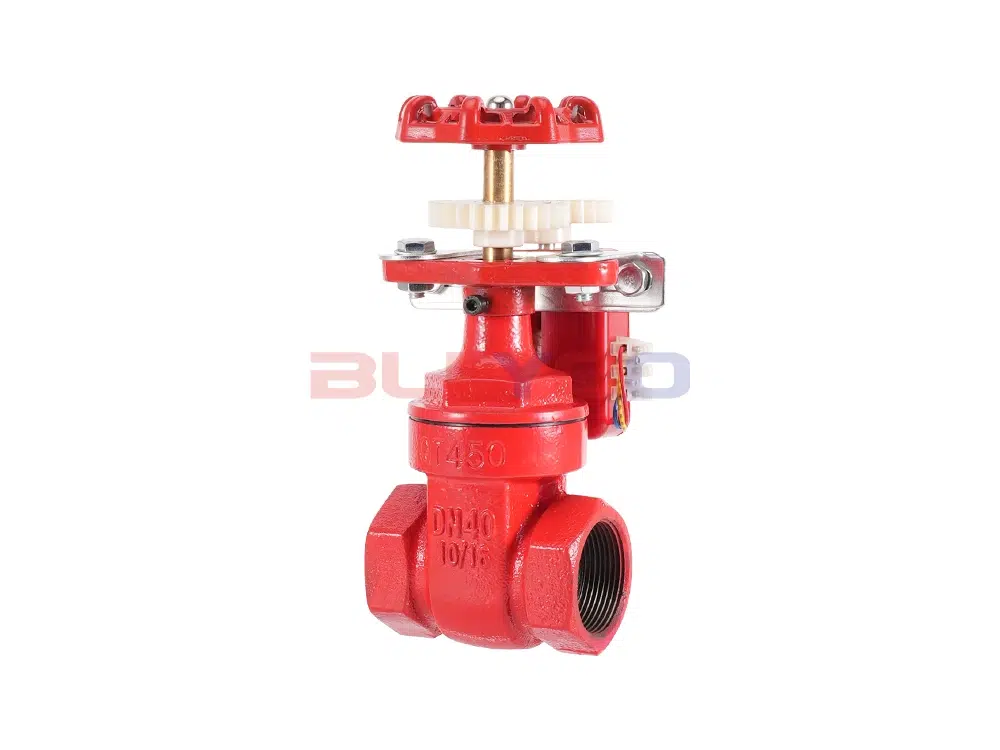

Ductile Iron Signal Brass-Core Gate Valve XZ15T-16Q

Product Description

The XZ15T-16Q signal brass-core gate valve is a female-threaded gate valve that incorporates a signal feedback function. Its body is made of ductile iron, while the gate and stem are made of brass. It is primarily used in fire protection systems and other applications that require a visual indication of the valve's opening position. How it works: the handwheel turns, driving the valve stem back and forth via its threads, which raises or lowers the valve disc connected to the stem to open or close the valve. In addition, the signal threaded gate valve is equipped with an electrical signaling device. When the handwheel is turned to open or close the gate valve, the signaling device outputs "on" or "off" electrical signals corresponding to the gate valve's open or closed position, facilitating remote monitoring and operation. It is widely used in the petroleum, chemical, pharmaceutical, and power industries for opening and closing pipelines carrying water, air, and oil-based media.

Product Specifications

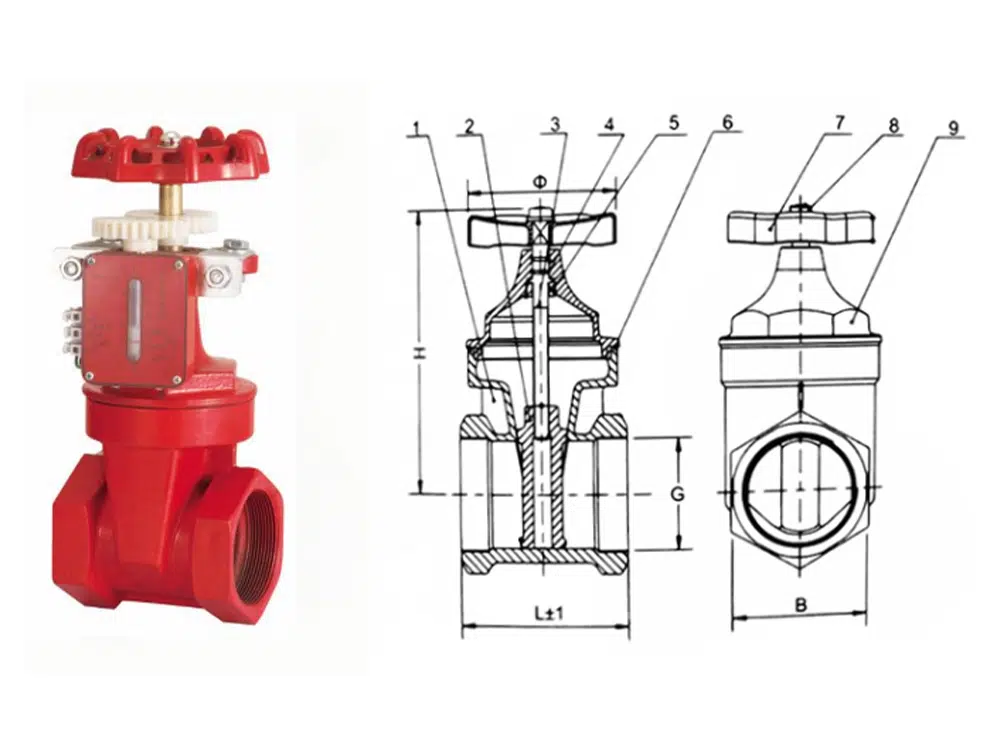

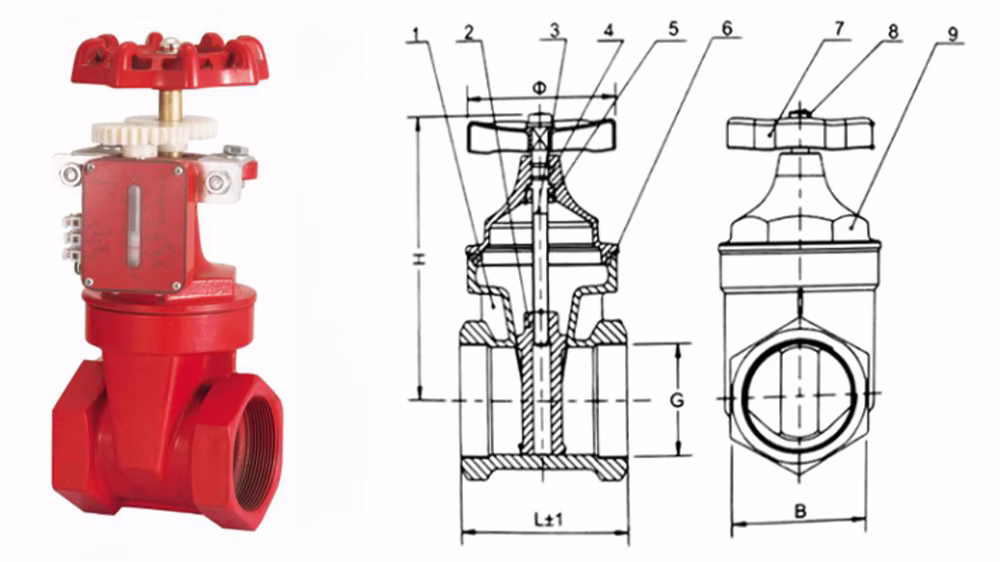

Product Size Guide
