Name: Ductile Iron Handle-Operated Flanged Butterfly Valve D41X-16Q
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Ductile Iron Handle-Operated Flanged Butterfly Valve D41X-16Q

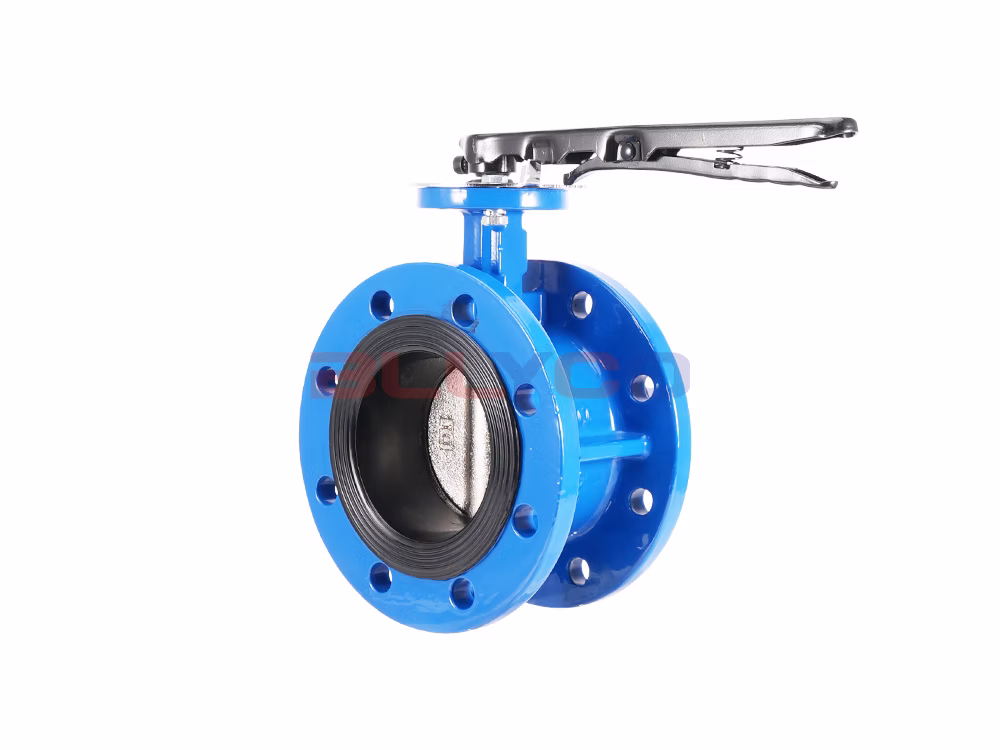

Ductile Iron Handle-Operated Flanged Butterfly Valve D41X-16Q

Product Model: D41X-16Q
Valve Body Material: Ductile Iron
Valve Plate Material: Ductile Iron / 304 Stainless Steel
Rubber-Lined Material: EPDM
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, gas, oil, etc.
Operating Temperature: ≤80℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

MessageWhatsApp

Product Description

The D41X-16Q handle-operated flanged butterfly valve is a type of valve that uses a disc-shaped closing element to open, close, and regulate the fluid passage through a reciprocating rotation of approximately 90°. It features an innovative design, simple structure, compact size, light weight, small installation dimensions, and rapid opening and closing. It is widely used in the food, pharmaceutical, chemical, petroleum, power, metallurgy, urban construction, light industry, textile, and paper industries for regulating flow and shutting off media in water supply and drainage systems as well as gas pipelines.

Product Specifications

Product Model	D41X-16Q
Valve Body Material	Ductile Iron
Valve Plate Material	Ductile Iron / 304 Stainless Steel
Rubber-Lined Material	EPDM
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, gas, oil, etc.
Operating Temperature	≤80℃

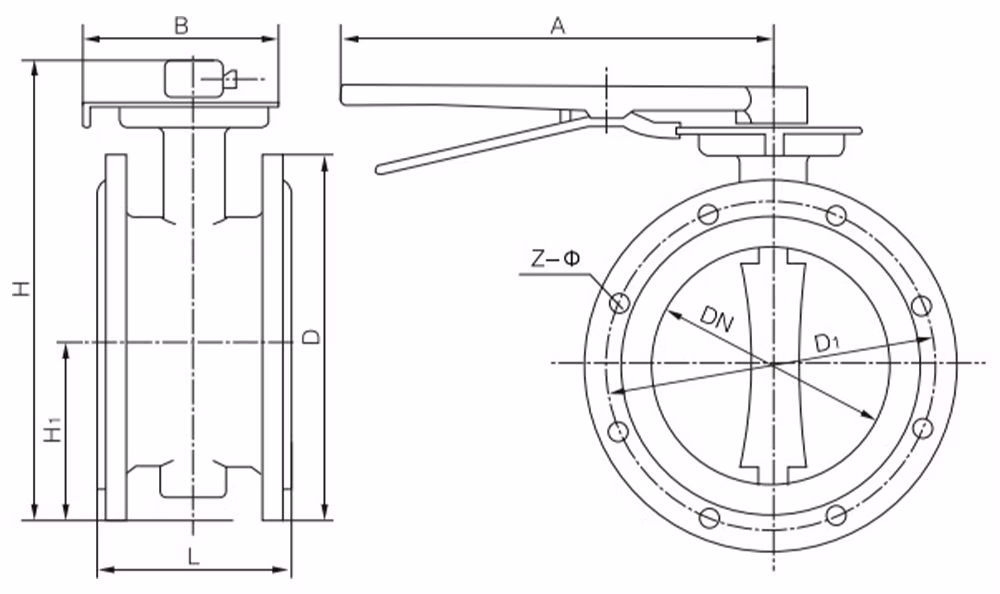

Product Size Guide

DN	L	D	D1	H	H1	A	B	Z-Ф
40	106	145	110	220	68	240	98	4-18
50	108	160	125	235	68	240	98	4-18
65	112	180	145	250	75	240	98	4-18
80	114	195	160	275	85	240	98	8-18
100	127	215	180	315	105	270	108	8-18
125	140	245	210	340	120	320	108	8-18
150	140	280	240	375	135	320	108	8-23
200	152	335	295	470	165	365	155	12-23

TagsButterfly Valve EPDM Lined Butterfly Valve Flanged Butterfly Valve Handle-Operated Flanged Butterfly Valve Manual Butterfly Valve

Consistent Quality

We implement comprehensive quality control throughout the entire process, ensuring meticulous attention to detail and thorough testing!

Reasonably Priced

Efficient internal cost control has reduced expenses, allowing us to pass the savings on to our customers!

Fast Delivery

State-of-the-art production lines and ample inventory have shortened delivery times!

Step 1: Send the purchase list

Please email the purchase list to info@bllyco.com. Phone/WeChat: +86-13382208259; WhatsApp: +852-90445535.

Step 2: Provide a Quote and Assist with Product Selection

Upon receiving the customer’s purchase list, our company will provide a valve quotation 「price list」 and assist with valve selection 「valve models」.

Step 3: Work Out the Details

Finalize the details: Confirm the delivery schedule, special requirements, and other specifics.

Ductile Iron Handle-Operated Flanged Butterfly Valve D41X-16Q

Product Description

Product Specifications

Product Size Guide
