Name: Brass Internal Threaded Gate Valve Z15W-16T
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Brass Internal Threaded Gate Valve Z15W-16T

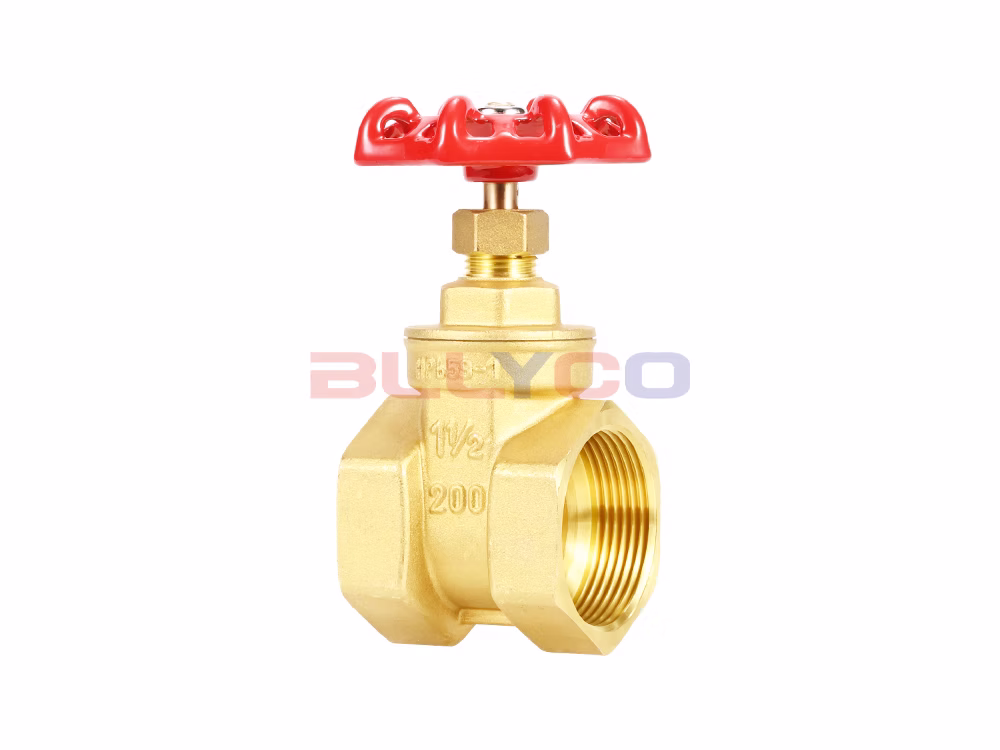

Brass Internal Threaded Gate Valve Z15W-16T

Product Model: Z15W-16T
Valve Body Material: Brass
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, gas, oil, etc.
Operating Temperature: ≤120℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Send InquiryChat Now

Product Description

The Z15W-16T internal threaded gate valve is a valve in which the closing element (gate) moves perpendicular to the axis of the flow passage. It is primarily used in piping systems to shut off the flow of the medium, meaning it is operated in either the fully open or fully closed position.

Product Features

The Z15W-16T brass internal threaded gate valve is highly resistant to aging and corrosion. It features replaceable seals that ensure reliable sealing performance, requires minimal operating torque, is easy to operate, is lightweight and compact, and is very easy to maintain.

Product Specifications

Product Model	Z15W-16T
Valve Body Material	Brass
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, gas, oil, etc.
Operating Temperature	≤120℃

Product Size Guide

Nominal Diameter	Inch	L	B	H	D
DN15	1/2	41	12.5	67.5	53
DN20	3/4	44	16.5	75	53
DN25	1	51	20.5	80	57.5
DN32	1-1/4	57	27	96.5	72
DN40	1-1/2	58	33	111.5	72
DN50	2	66	43	126.5	78
DN65	2-1/2	73	54	156	97
DN80	3	80	65	180	108
DN100	4	95	86.5	226.5	126
