Name: Cast Iron Internal Threaded Brass-Core Gate Valve Z15T-16
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Iron Internal Threaded Brass-Core Gate Valve Z15T-16

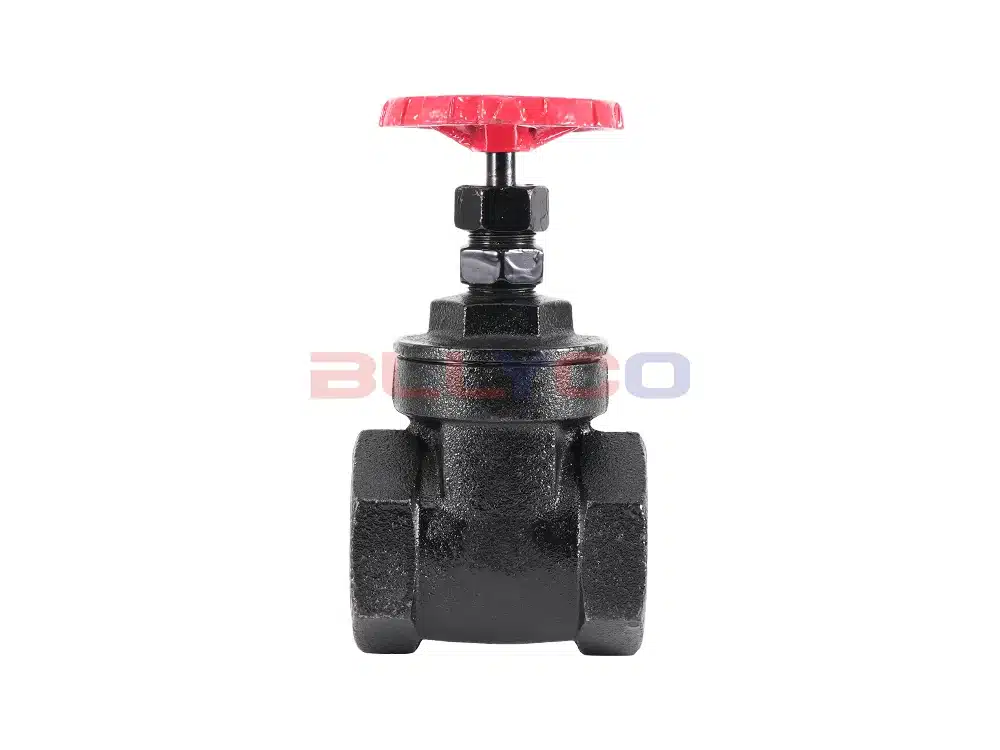

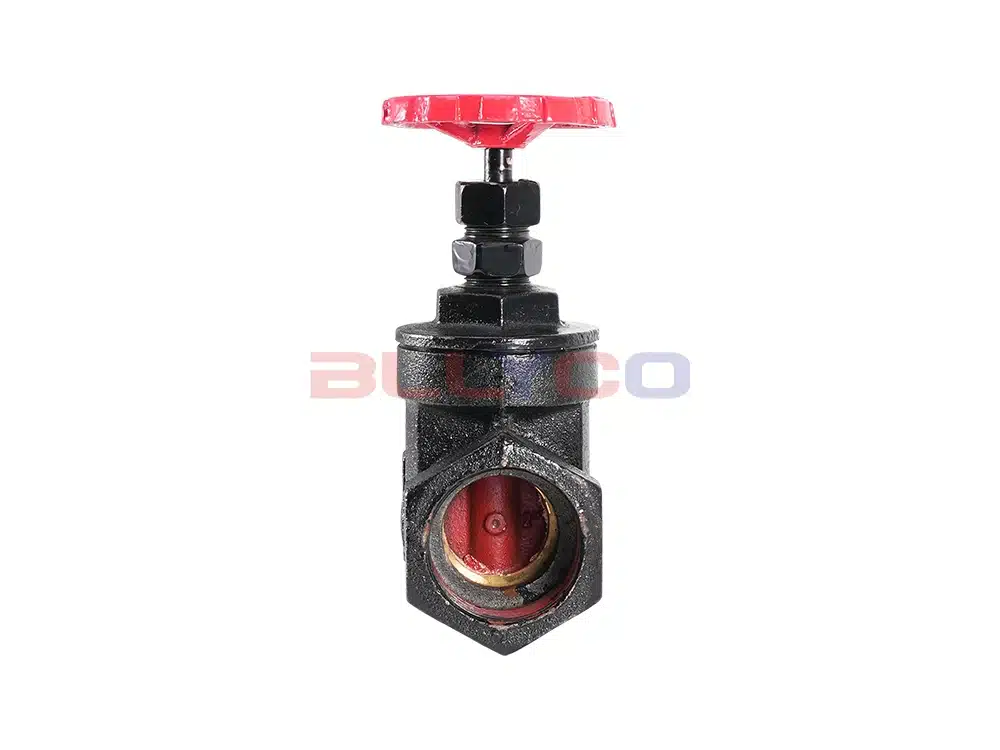

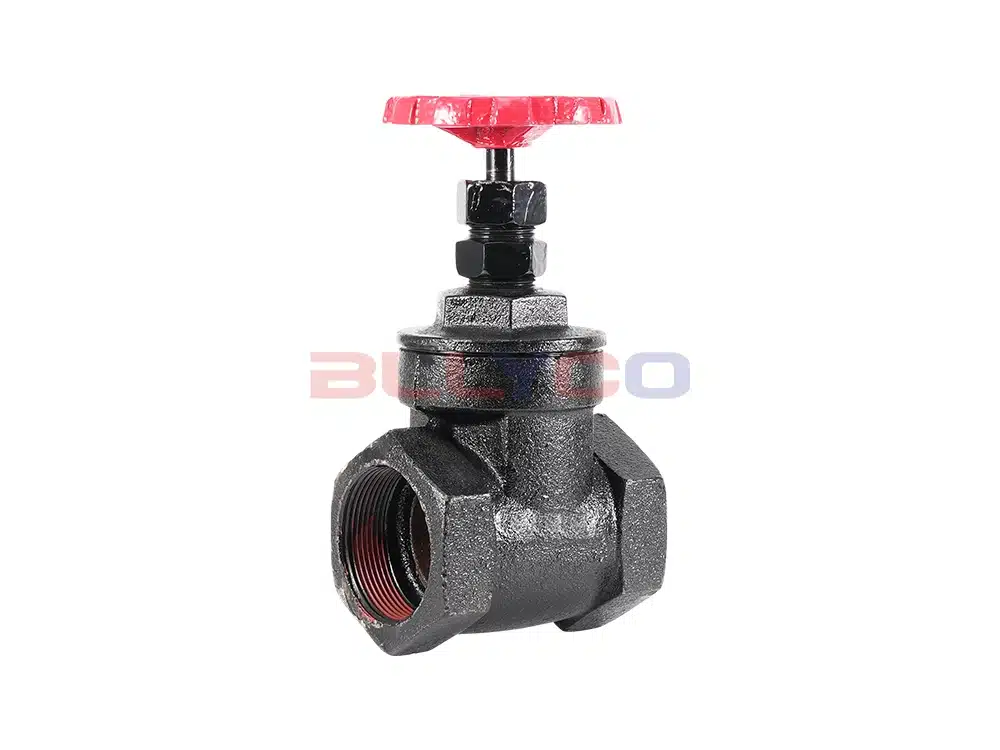

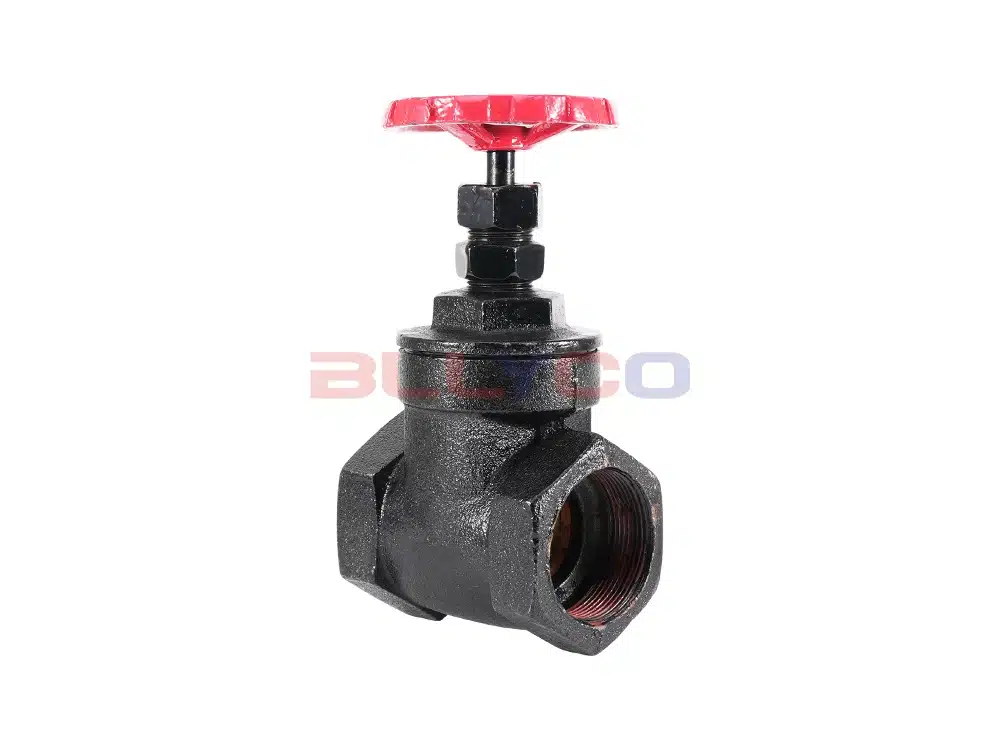

Cast Iron Internal Threaded Brass-Core Gate Valve Z15T-16

Product Model: Z15T-16
Valve Body Material: Cast Iron（HT200）
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, gas, oil, etc.
Operating Temperature: ≤120℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Send InquiryChat Now

Product Description

The Z15T-16 internal threaded brass-core gate valve is widely used in the petroleum, chemical, pharmaceutical, and power industries to open and close pipelines carrying water, air, and oil-based media.

Product Features

Fluid resistance is low, and the sealing surfaces are subject to minimal scouring and erosion by the medium.　
It requires less effort to open and close.
The flow of the medium is unrestricted; it does not cause turbulence or reduce pressure.
They have a simple shape, are compact in size, are easy to manufacture, and have a wide scope of application.

Product Specifications

Product Model	Z15T-16
Valve Body Material	Cast Iron（HT200）
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, gas, oil, etc.
Operating Temperature	≤120℃

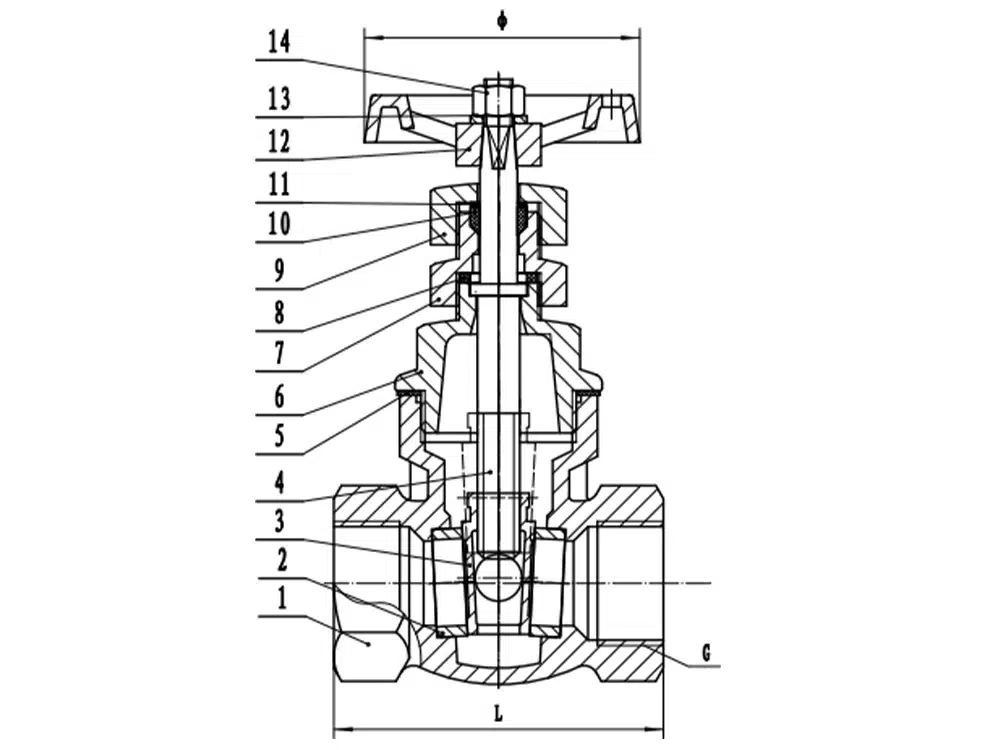

Product Size Guide

Nominal Diameter	G	L	φ
DN15	1/2	60	60
DN20	3/4	65	60
DN25	1	75	69
DN32	1-1/4	85	100
DN40	1-1/2	95	100
DN50	2	110	130
DN65	2-1/2	120	130
DN80	3	140	132
DN100	4	165	184
