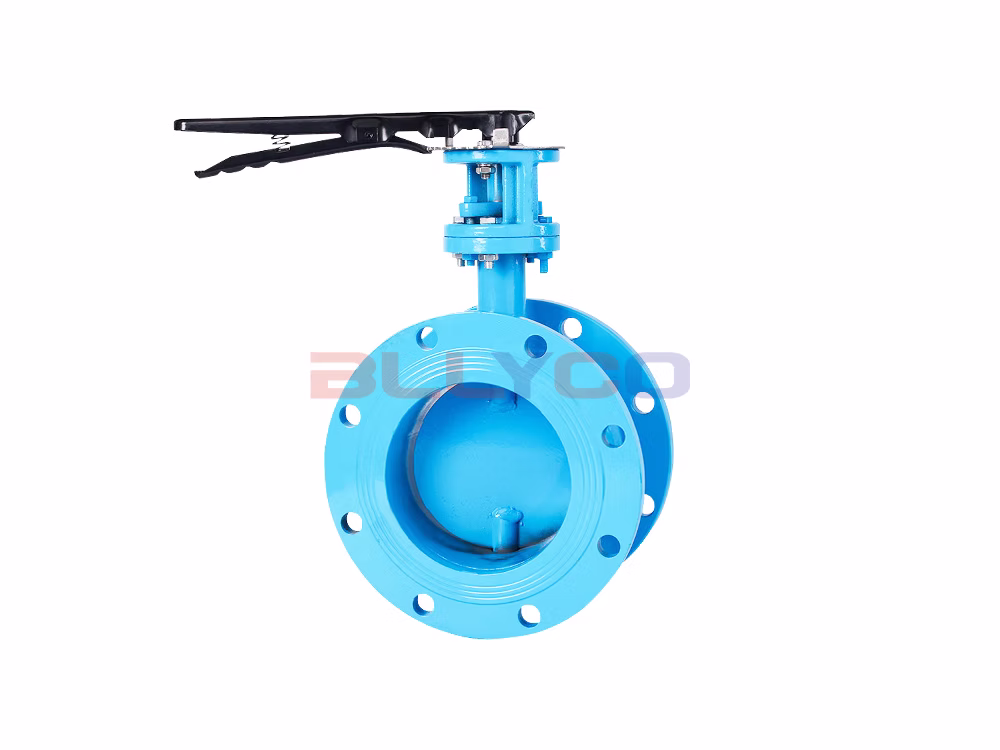

Name: Cast Steel Flanged Ventilation Butterfly Valve D41W-1C
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Steel Flanged Ventilation Butterfly Valve D41W-1C

Cast Steel Flanged Ventilation Butterfly Valve D41W-1C

Product Model: D41W-1C
Valve Body Material: Cast Steel
Nominal Pressure: ≤0.1 MPa
Suitable Media: Air, flue gas, dust-laden gas, etc.
Operating Temperature: ≤300°C

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

MessageWhatsApp

Product Description

The D41W-1C flanged ventilation butterfly valve is primarily used in ventilation and dust removal systems to open, close, and regulate the flow of dust-laden gases, coal gas pipelines, ventilation and purification equipment, flue gas ducts, and similar applications. Welded from high-quality, wear-resistant materials, this valve features excellent wear resistance, stable and reliable operation, convenient operation, responsive action, low leakage rates, a long service life, and easy installation and maintenance. It is widely used in power plants, metallurgy, mining, cement, environmental protection, and heating industries.

Product Specifications

Product Model	D41W-1C
Valve Body Material	Cast Steel
Nominal Pressure	≤0.1 MPa
Applicable Media	Air, flue gas, dust-laden air, etc.
Operating Temperature	≤300℃

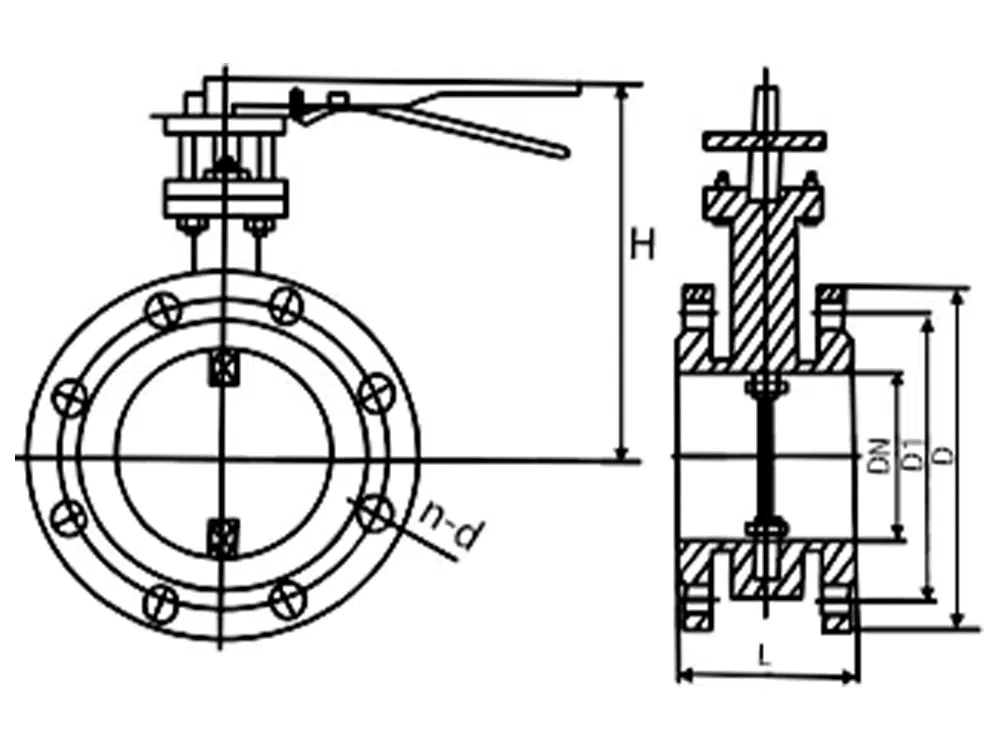

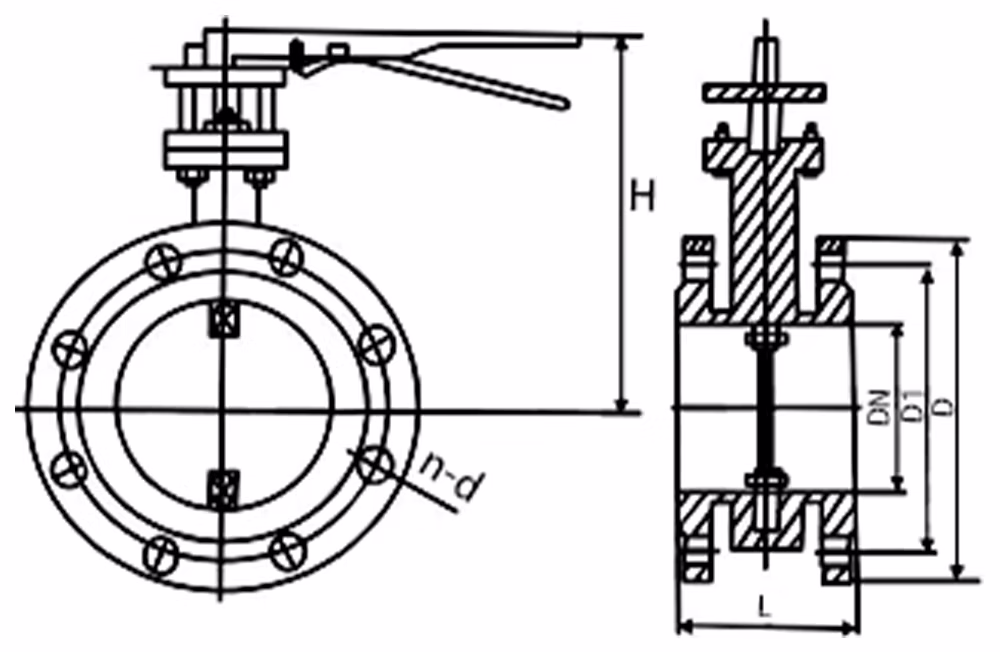

Product Size Guide

DN	L	D	D1	H	N-d
50	100	140	110	150	4-14
65	100	160	130	160	4-14
80	100	185	150	170	4-14
100	100	200	170	240	4-18
125	140	230	200	270	8-18
150	140	255	225	275	8-18
200	140	310	280	310	8-18
250	140	365	335	335	12-18
300	170	435	395	360	12-22
350	170	475	445	380	12-22
400	190	535	495	465	16-22
450	190	585	550	495	16-22
500	210	635	600	525	16-22
600	210	750	705	570	20-26
700	210	855	810	635	24-30
800	210	970	920	685	24-30
900	250	1070	1020	770	24-30
1000	250	1170	1120	835	28-30
1100	250	1280	1220	875	28-30
1200	250	1373	1320	930	32-30
1300	300	1475	1420	975	36-30
1400	300	1575	1520	1025	36-30
1500	300	1680	1620	1075	36-30
