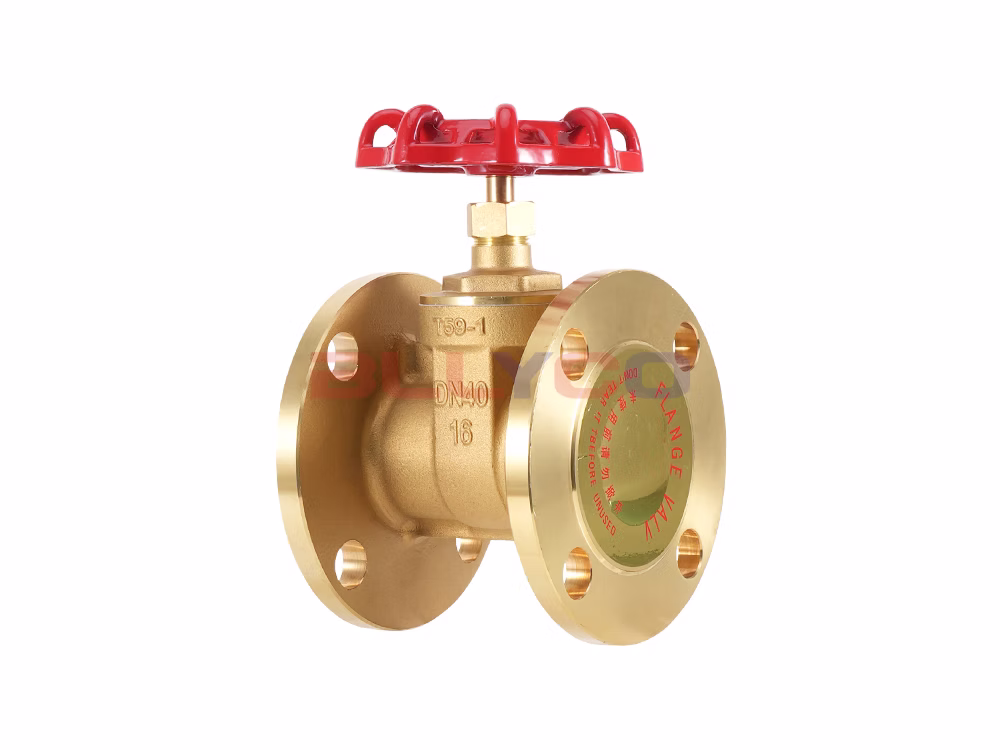

Name: Brass Flanged Gate Valve Z45W-16T
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Brass Flanged Gate Valve Z45W-16T

Brass Flanged Gate Valve Z45W-16T

Product Model: Z45W-16T
Valve Body Material: Brass
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, non-corrosive liquids, etc.
Operating Temperature: ≤120℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

MessageWhatsApp

Product Description

The Z45W-16T brass flanged gate valve features a valve body forged from brass and is primarily used to shut off or regulate the flow of media in pipelines. With its compact design, elegant appearance, superior sealing performance, and ease of operation, it is suitable for a wide range of operating conditions. It is widely used in industries such as water conservancy, heating systems, construction, petroleum, chemical, pharmaceutical, and power generation.

Product Features

Brass offers excellent corrosion resistance and is suitable for a wide range of media, such as water, oil, and gases.
The internal flow path of the valve body is straight-through, allowing the medium to flow in a straight line with minimal flow resistance.
The gate moves perpendicular to the direction of media flow, requiring less effort to open and close it.
It has a compact design and is suitable for a wide range of operating conditions.

Product Specifications

Product Model	Z45W-16T
Valve Body Material	Brass
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, non-corrosive liquids, etc.
Operating Temperature	≤120℃

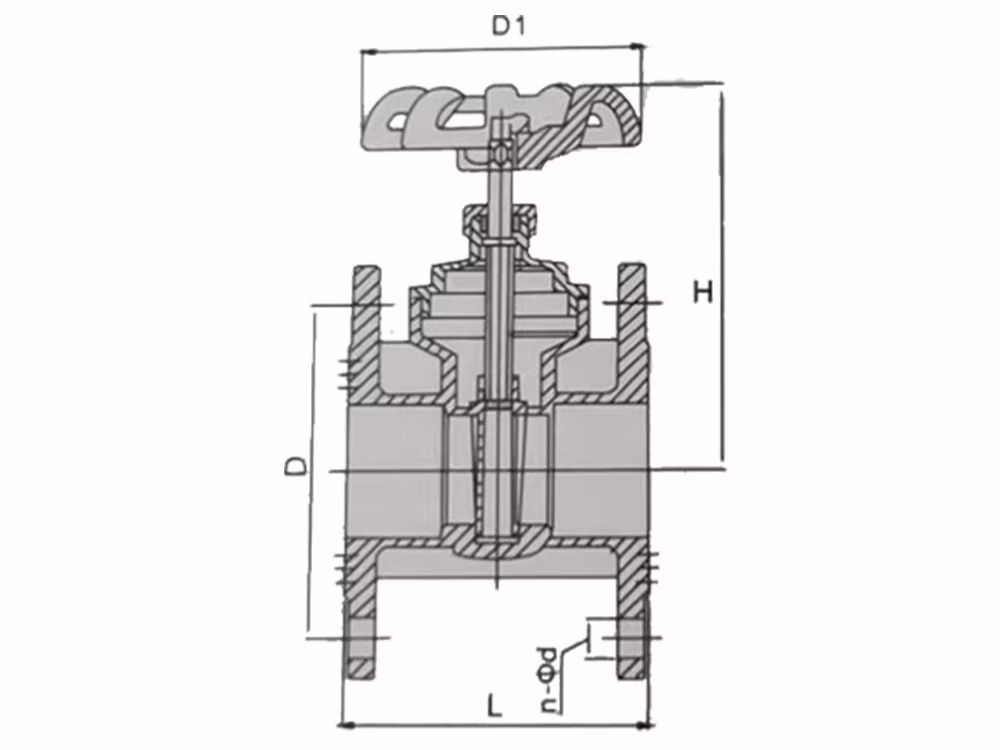

Product Size Guide

Nominal Diameter	L	D	H	D1	n-Φd
DN15	77	65	85	78	4-14
DN20	85	75	95	78	4-14
DN25	89	85	104	78	4-14
DN32	99	100	123	108	4-18
DN40	110	110	137	108	4-18
DN50	112	125	144	108	4-18
DN65	120	145	172	126	4-18
DN80	135	160	189	145	8-18
DN100	152	180	234	180	8-18
DN125	150	210	400	240	8-18
DN150	172	240	440	240	8-23
DN200	223	295	550	300	12-23
DN250	256	355	610	400	12-25
DN300	287	410	670	400	12-25
