Name: 304 Stainless Steel Flanged Gate Valve Z41W-16P
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: 304 Stainless Steel Flanged Gate Valve Z41W-16P

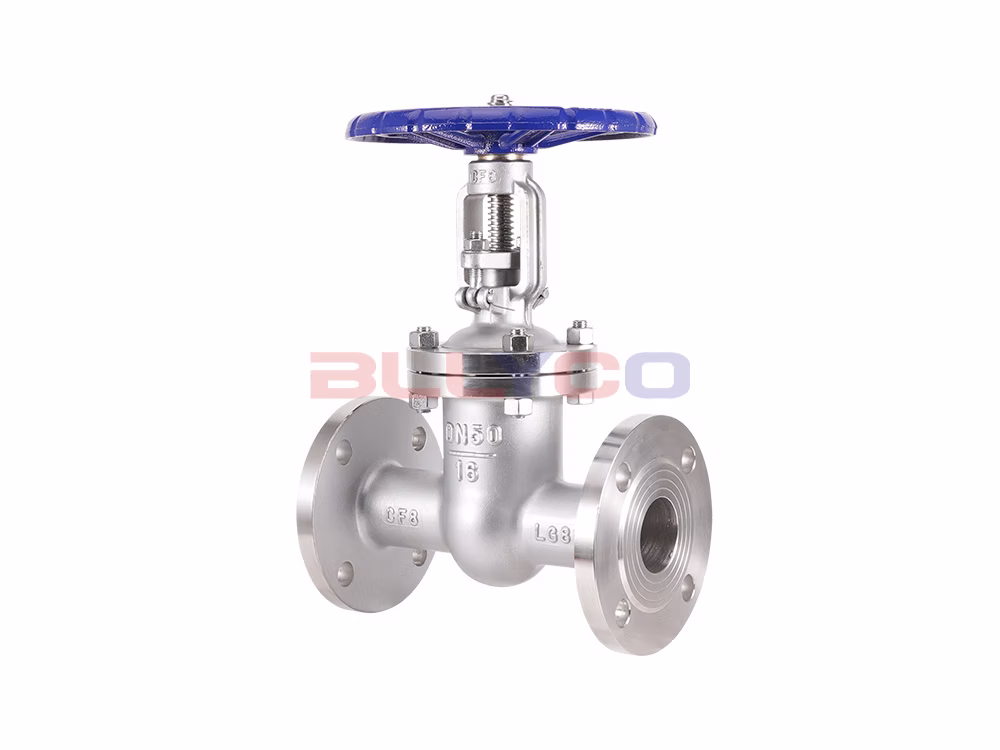

304 Stainless Steel Flanged Gate Valve Z41W-16P

Product Model: Z41W-16P
Valve Body Material: 304 Stainless Steel
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, steam, oil, etc.
Operating Temperature: ≤150℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Send InquiryChat Now

Product Description

The Z41W-16P stainless steel flanged gate valve features a gate plate as its closing member, which moves perpendicular to the direction of fluid flow. Gate valves can only be fully opened or fully closed; they cannot be used for regulation or throttling. The gate has two sealing surfaces that form a wedge shape. The stainless steel flanged gate valve places high demands on the valve body material; common material options include 304 stainless steel and 316. It is widely used in industries such as chemical processing, shipbuilding, pharmaceuticals, food processing, power and energy, and metallurgy.

Product Specifications

Product Model	Z41W-16P
Valve Body Material	304 Stainless Steel
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, steam, oil, etc.
Operating Temperature	≤150℃

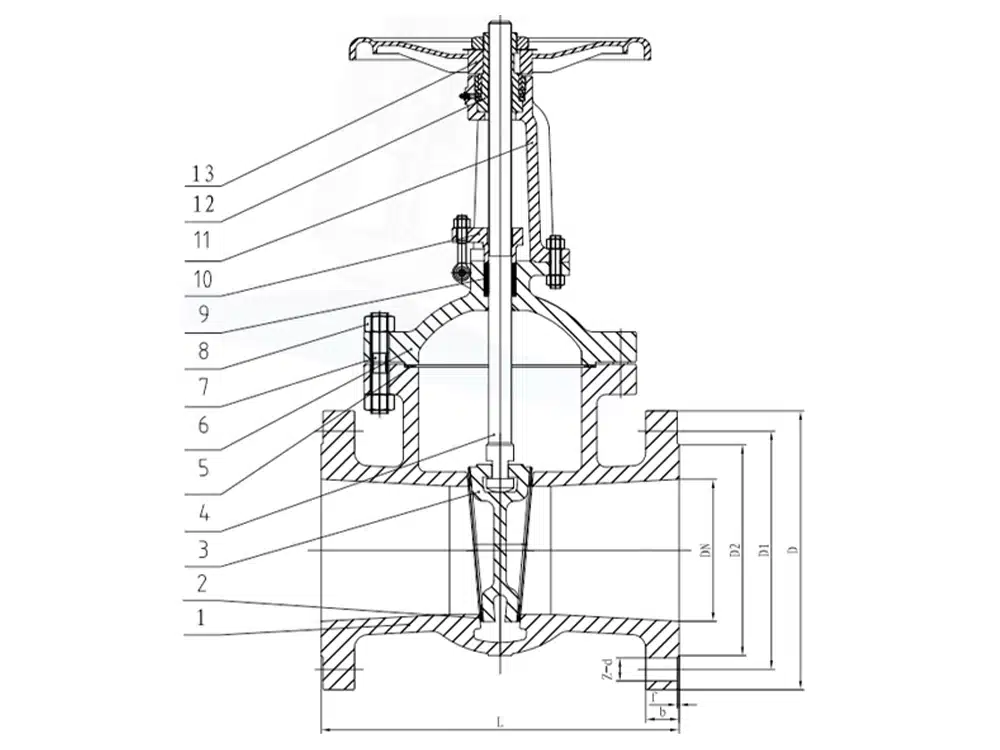

Product Size Guide

Nominal Diameter	L	D	D1	D2	b	f	z-d
DN15	130	95	65	45	14	2	4-14
DN20	150	105	75	55	14	2	4-14
DN25	160	115	85	65	14	2	4-14
DN32	180	135	100	78	16	2	4-18
DN40	200	145	110	85	16	3	4-18
DN50	250	160	125	100	16	3	4-18
DN65	265	180	145	120	18	3	4-18
DN80	280	195	160	135	20	3	8-18
DN100	300	215	180	155	20	3	8-18
DN125	325	245	210	185	22	3	8-18
DN150	350	280	240	210	24	3	8-23
DN200	400	335	295	265	26	3	12-23
DN250	450	405	355	320	30	3	12-25
DN300	500	460	410	375	30	4	12-25
DN350	550	520	470	435	34	4	16-25
DN400	600	580	525	485	36	4	16-30
DN450	650	640	585	545	40	4	20-30
DN500	700	705	650	608	44	4	20-34
