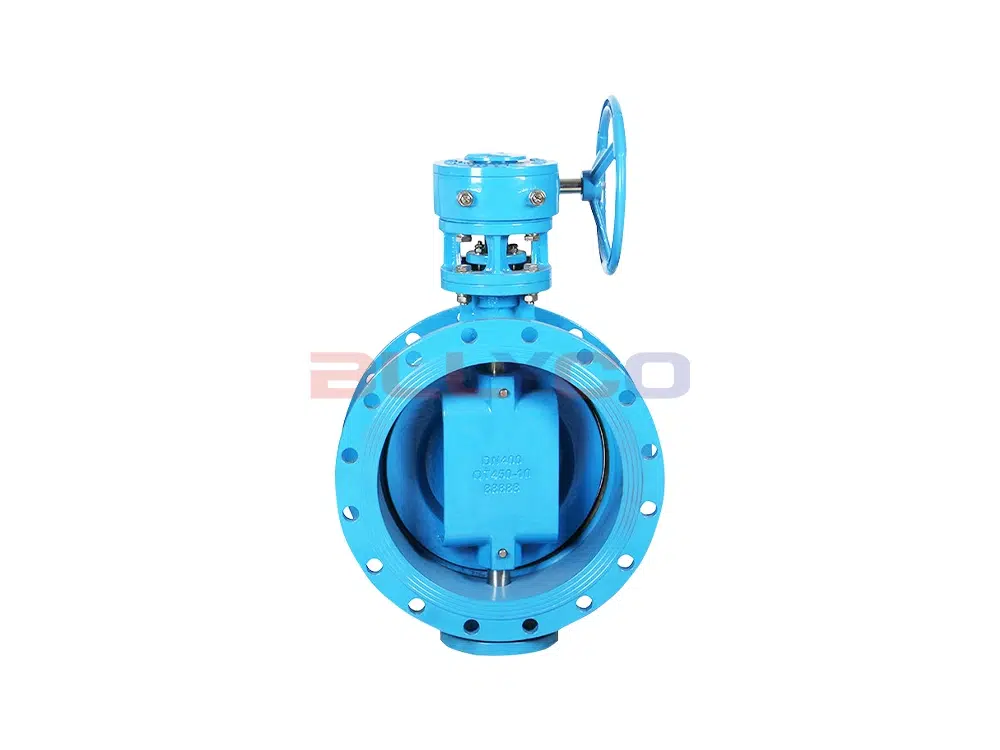

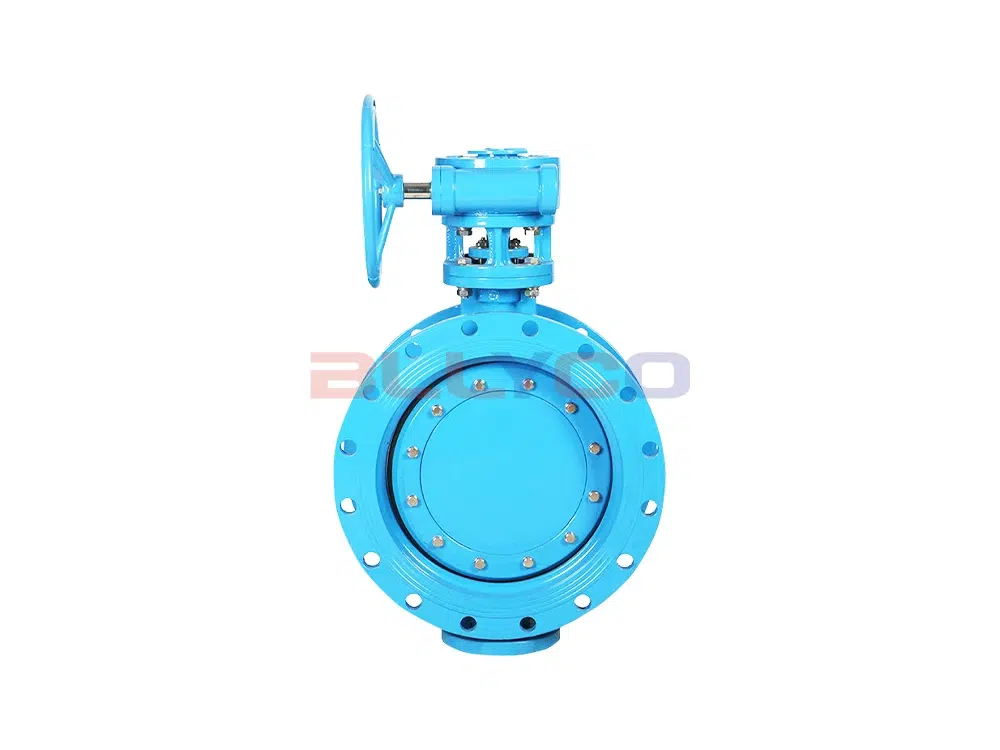

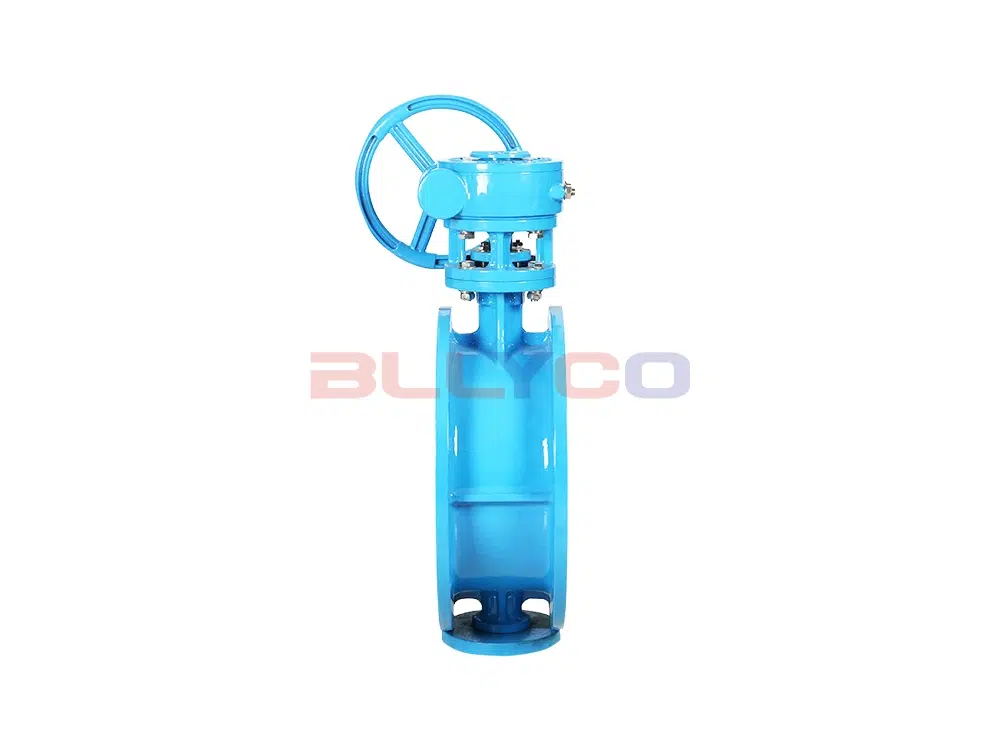

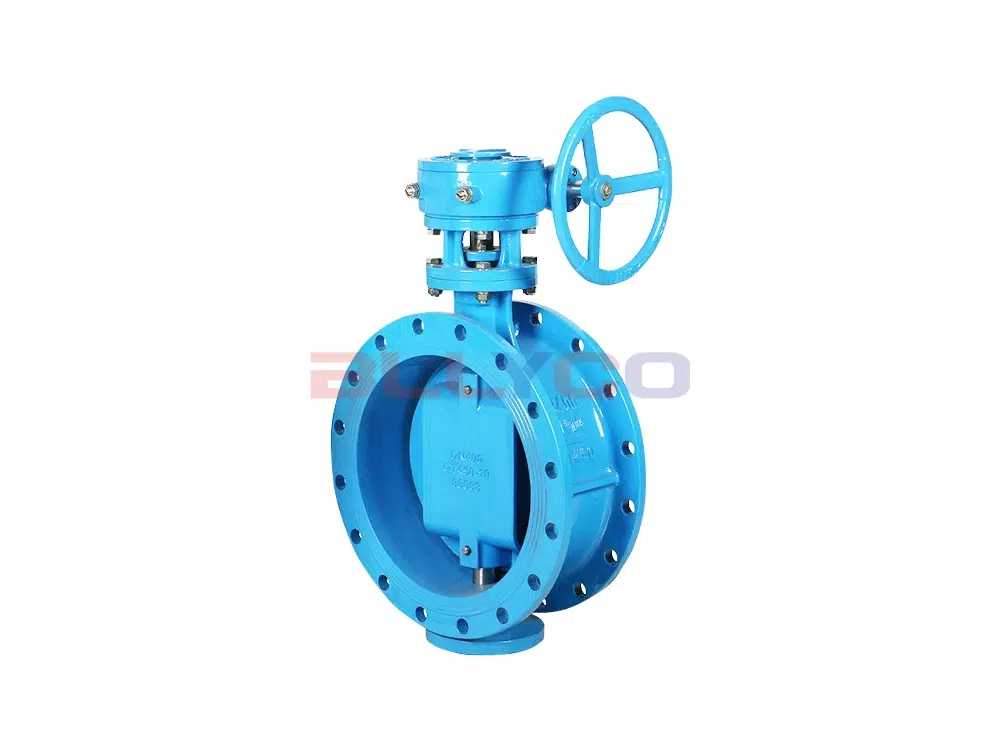

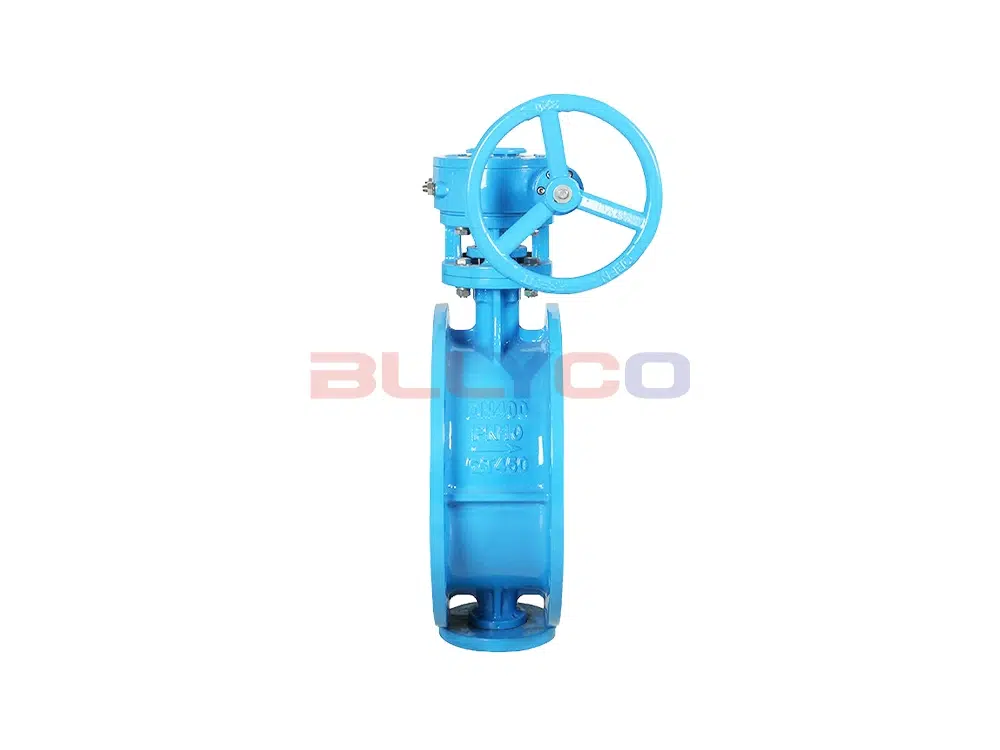

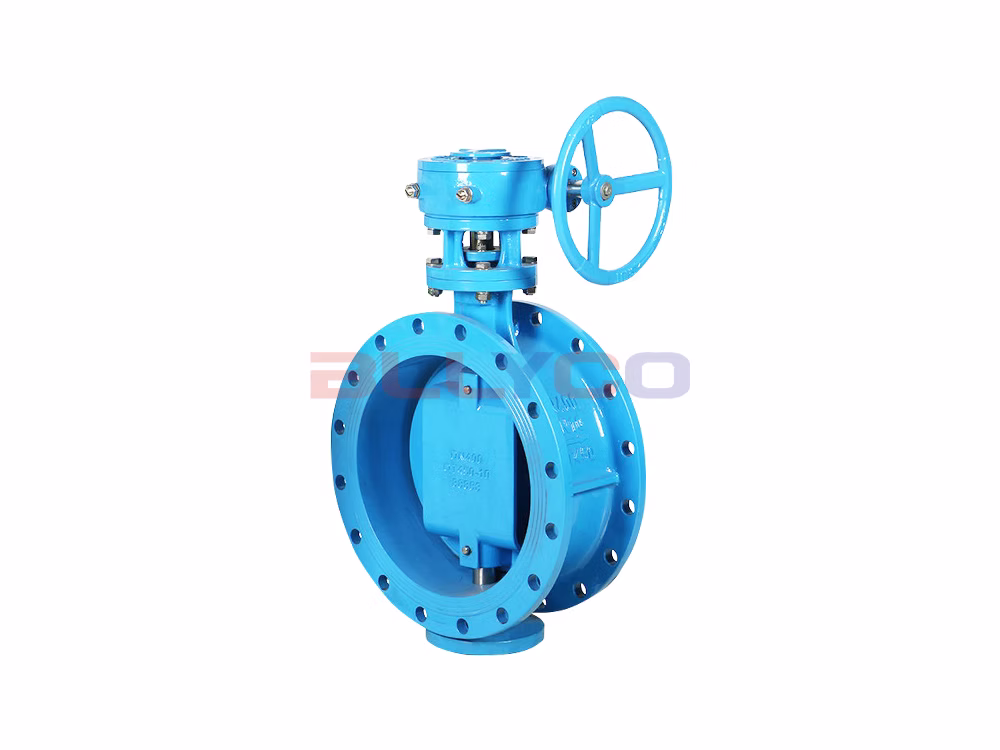

Ductile Iron Double-Eccentric Flanged Butterfly Valve D342X-16Q

Product Description

The D342X-16Q Double-Eccentric Flanged Butterfly Valve is a further refinement of the single-eccentric butterfly valve and is currently widely used. Its structural feature is that the valve stem axis is offset from both the center of the disc and the center of the valve body. The double-offset design ensures that the disc immediately lifts off the seat when the valve is opened, significantly eliminating unnecessary excessive compression and scraping between the disc and the seat, reducing opening resistance, minimizing wear, and extending the service life of the seat. Double-eccentric butterfly valves, also known as high-performance butterfly valves, are primarily used for drainage in systems such as water treatment plants, power plants, steel mills and smelters, chemical plants, spring water projects, and environmental facilities. They are particularly suitable for use in water supply pipelines as regulating and shutoff devices.

Product Features

It features a simple and compact design, is lightweight, easy to operate, reliable in performance, fully functional, and has an attractive and elegant appearance, making it easy to maintain. This valve employs a double-eccentric design, with high machining precision on the sealing surfaces of both the disc and the seat. When the valve is opened, the sealing surfaces completely separate; during the closing process, there is virtually no friction, allowing for smooth and effortless closure. It features a self-locking mechanism that tightens further as it closes, as well as self-sealing capabilities, ensuring stable and reliable sealing performance.

Product Specifications

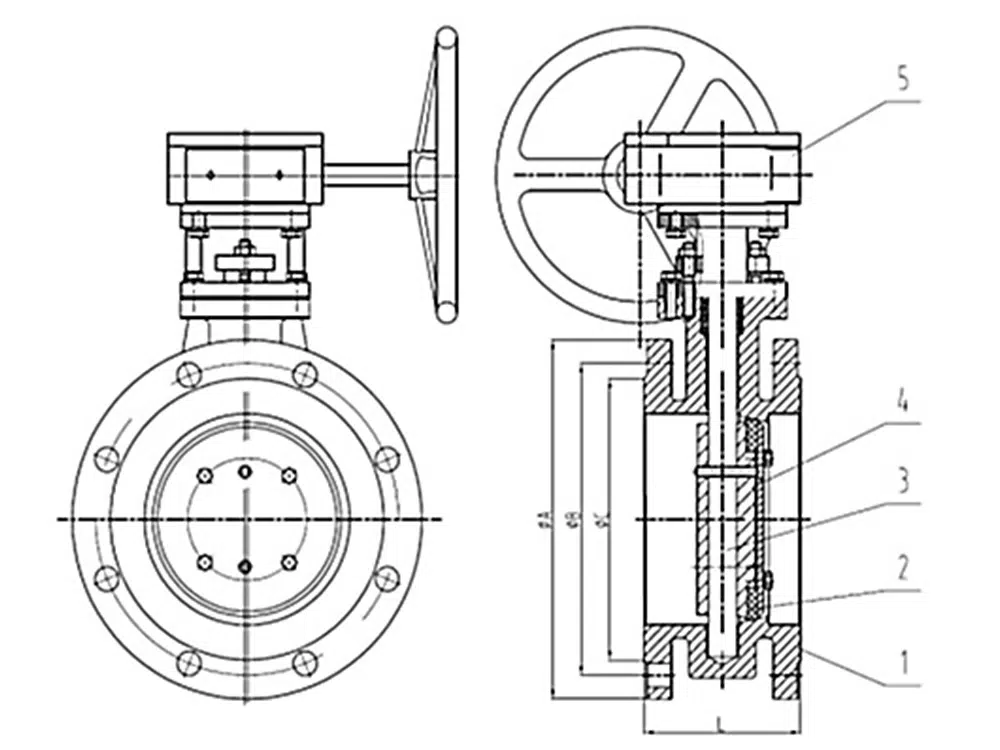

Product Size Guide
