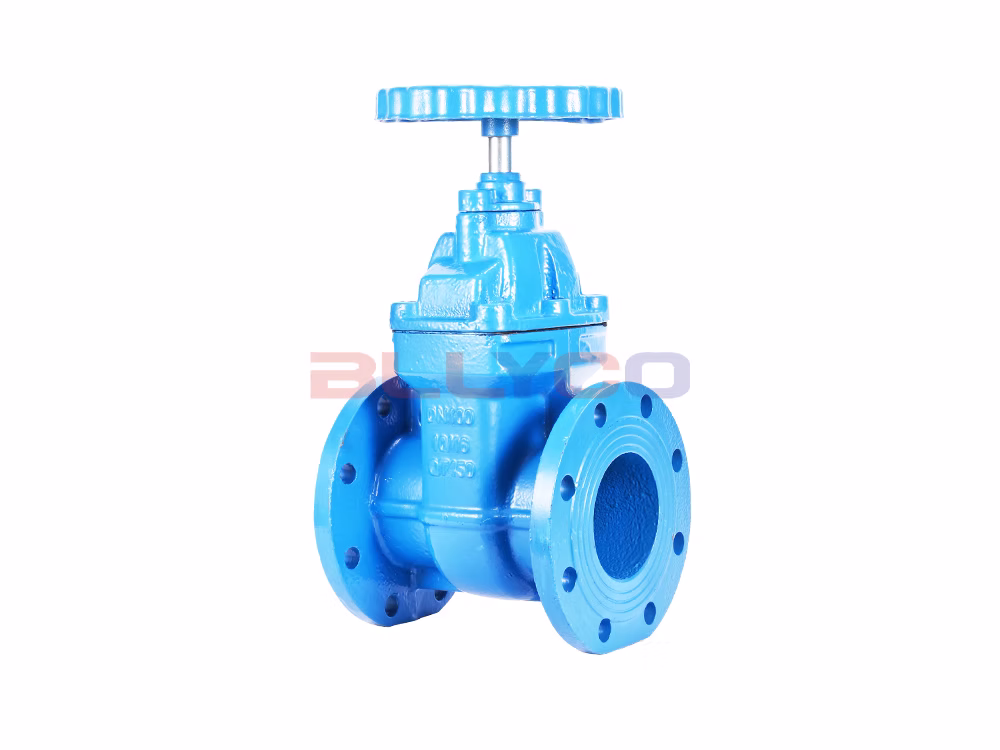

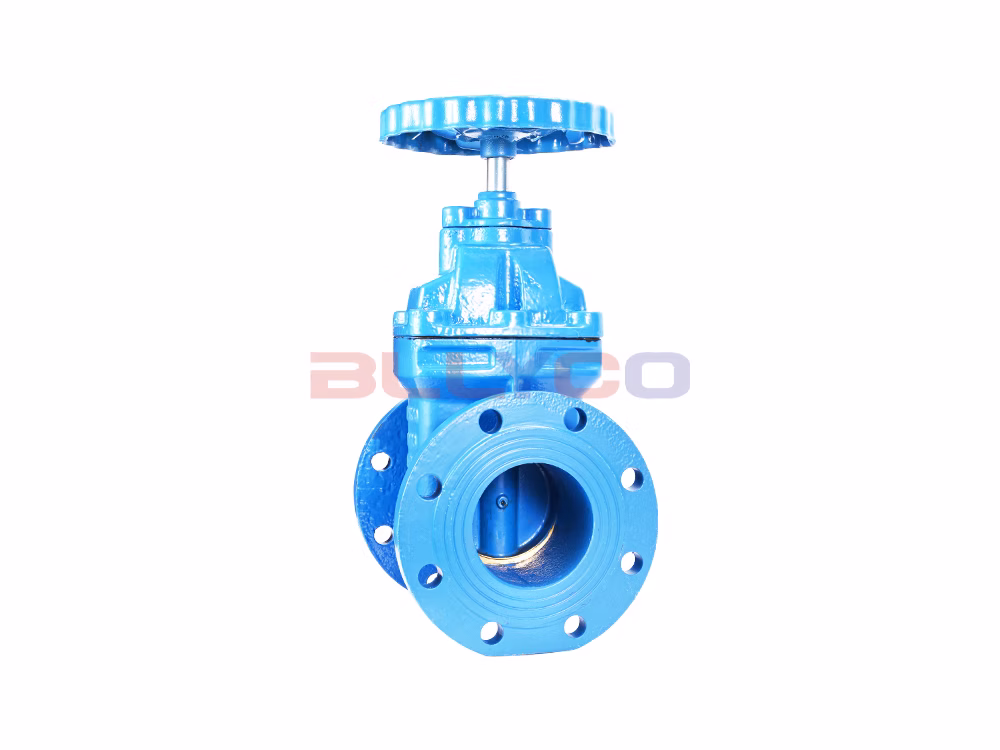

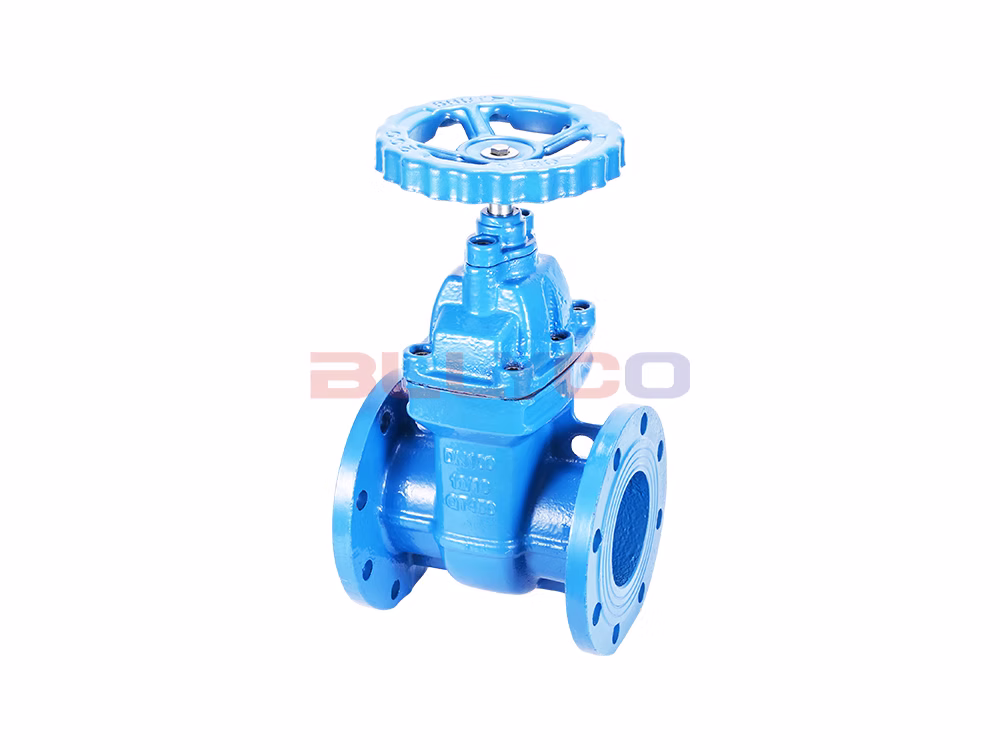

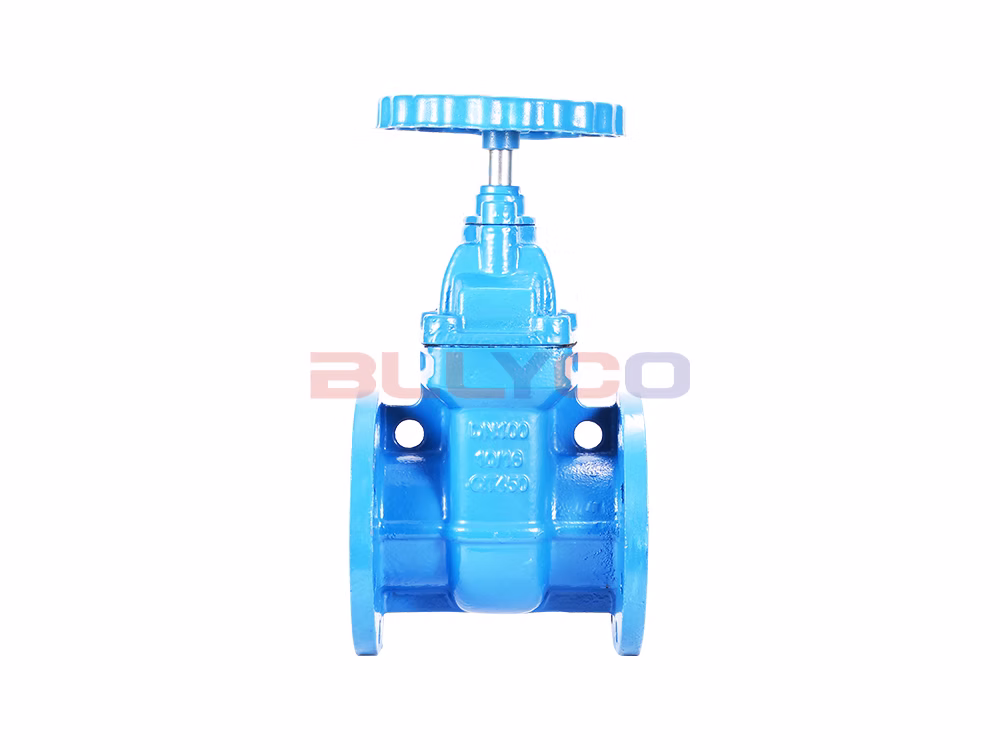

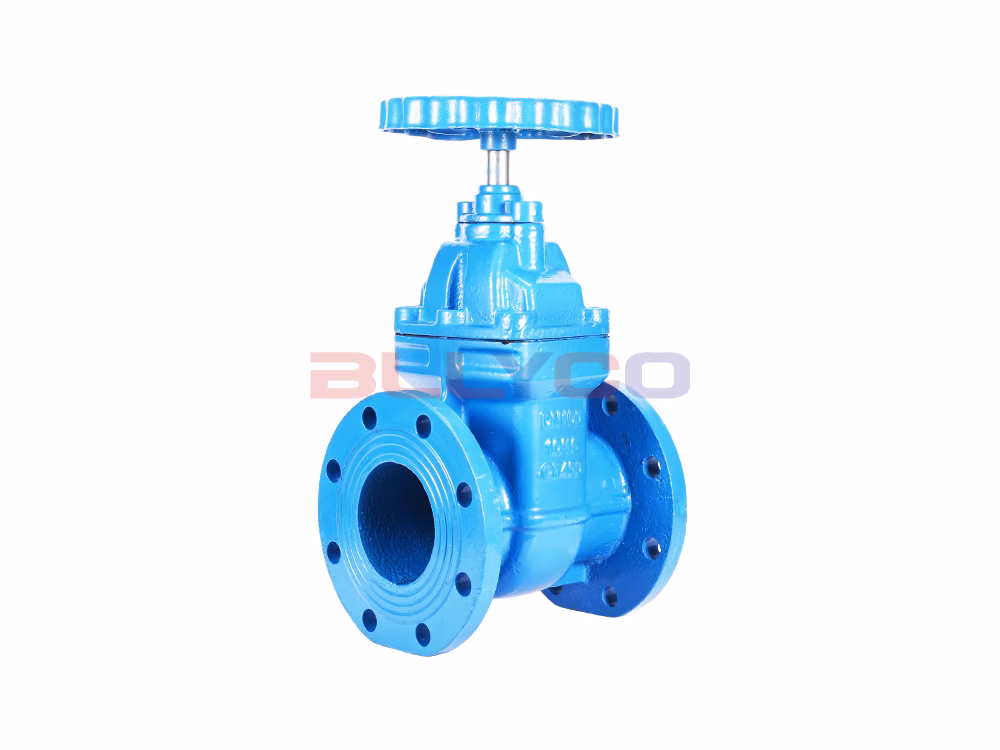

Name: Ductile Iron Brass-Core Flanged Gate Valve Z45T-16Q
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Ductile Iron Brass-Core Flanged Gate Valve Z45T-16Q

Ductile Iron Brass-Core Flanged Gate Valve Z45T-16Q

Product Model: Z45T-16Q
Valve Body Material: Ductile Iron
Valve Disc Material: Ductile Iron + Brass
Nominal Pressure: ≤1.6 MPa
Applicable Media: Water, etc.
Operating Temperature: ≤80℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

MessageWhatsApp

Product Description

The Z45T-16Q brass-core flanged gate valve features a valve body made of QT450 ductile iron, with a sealing surface made of a brass alloy overlay. It is widely used in industries such as drainage, gas, power, petroleum, light industry and textiles, metallurgy, chemical processing, and urban construction, and is used to open and close pipelines carrying water and oil-based media.

Product Features

With a compact and well-designed structure, the valve offers high rigidity, smooth flow, and a low flow resistance coefficient.
The sealing surface is made of brass, ensuring a long service life.
This valve uses flexible graphite packing, ensuring a reliable seal and smooth, effortless operation.

Product Specifications

Product Model	Z45T-16Q
Valve Body Material	Ductile Iron
Valve Disc Material	Ductile Iron + Brass
Nominal Pressure	≤1.6 MPa
Applicable Media	Water, etc.
Operating Temperature	≤80℃

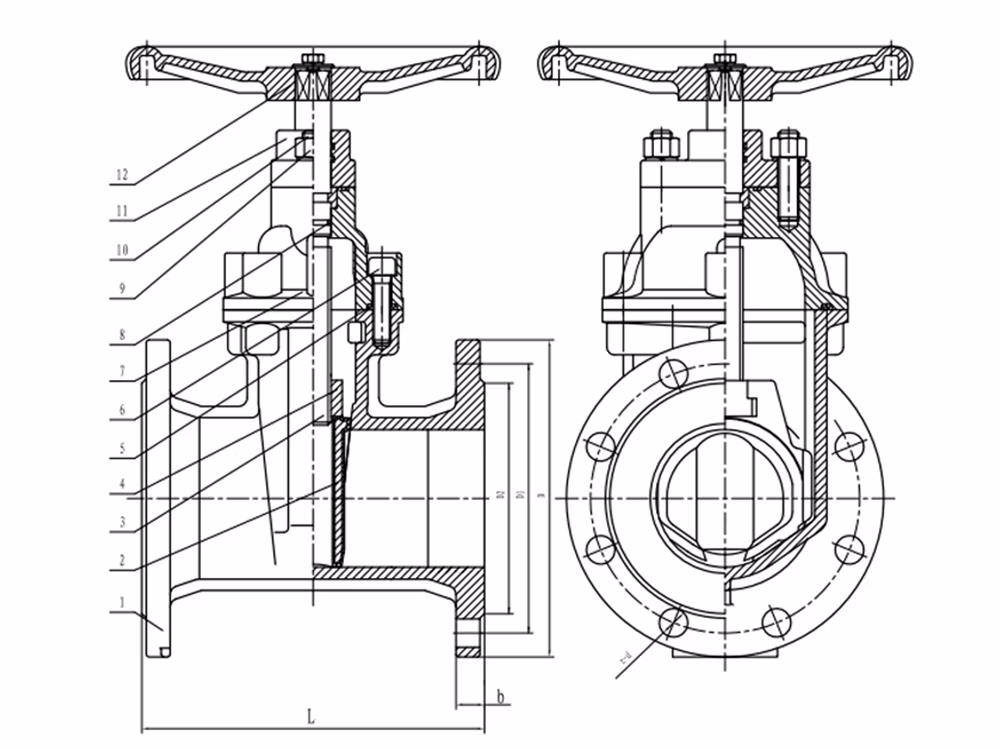

Product Size Guide

Nominal Diameter	L	D	D1	D2	b	f	z-d
DN40	177	150	110	88	16	3	4-18
DN50	177	160	125	100	16	3	4-18
DN65	192	180	145	120	18	3	4-18
DN80	202	195	160	135	20	3	8-18
DN100	235	215	180	155	20	3	8-18
DN125	251	245	210	185	22	3	8-18
DN150	265	280	240	210	24	3	8-23
DN200	295	335	295	265	26	3	12-23

TagsBrass-Core Flanged Gate Valve Brass-Core Gate Valve Brass-Core Hard-Sealed Gate Valve Flanged Gate Valve Manual Gate Valve Non-Rising Stem Gate Valve
