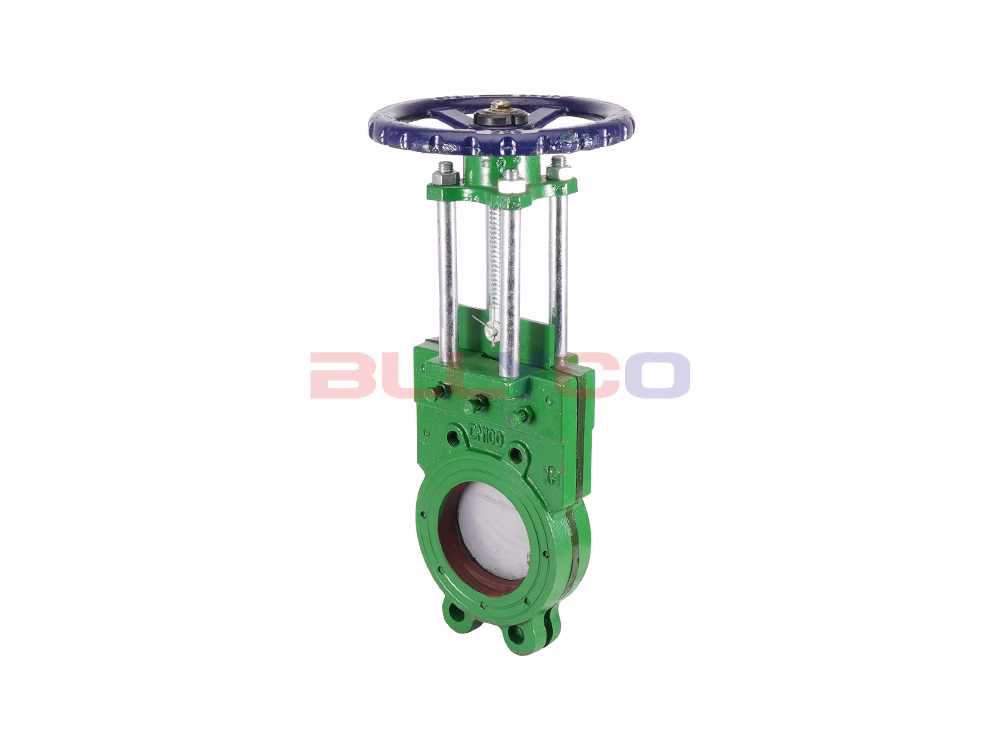

Cast Iron Wafer-Type Slurry Valve Z73X-10

Product Description

The Z73X wafer-type slurry valve is a valve specifically designed to shut off and regulate the flow of liquids containing solid particles. Its compact design and ease of installation effectively prevent valve blockages caused by solid particles. The Z73X slurry valve is widely used in piping systems carrying solid-liquid mixtures such as coal slurry, slag, wastewater, and syrup.

Product Features

1. Compact and well-designed, it is easy to install.
2. The sealing surfaces are made of cemented carbide or 304 stainless steel, ensuring the valve has high rigidity, a smooth flow path, a low flow resistance coefficient, and a long service life.
3. It uses soft graphite packing, ensuring a reliable seal, smooth and flexible operation, and resistance to clogging.
4. The gate plate features a knife-edge design, which helps prevent the settling of solid particles.

Product Specifications

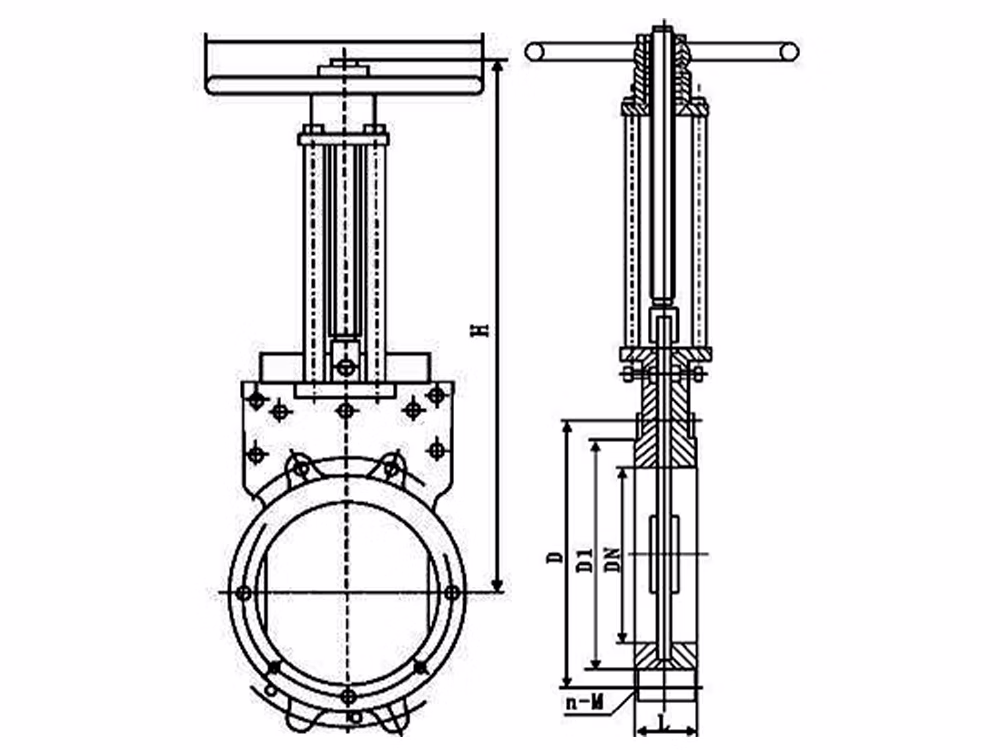

Product Size Guide
