Product Description

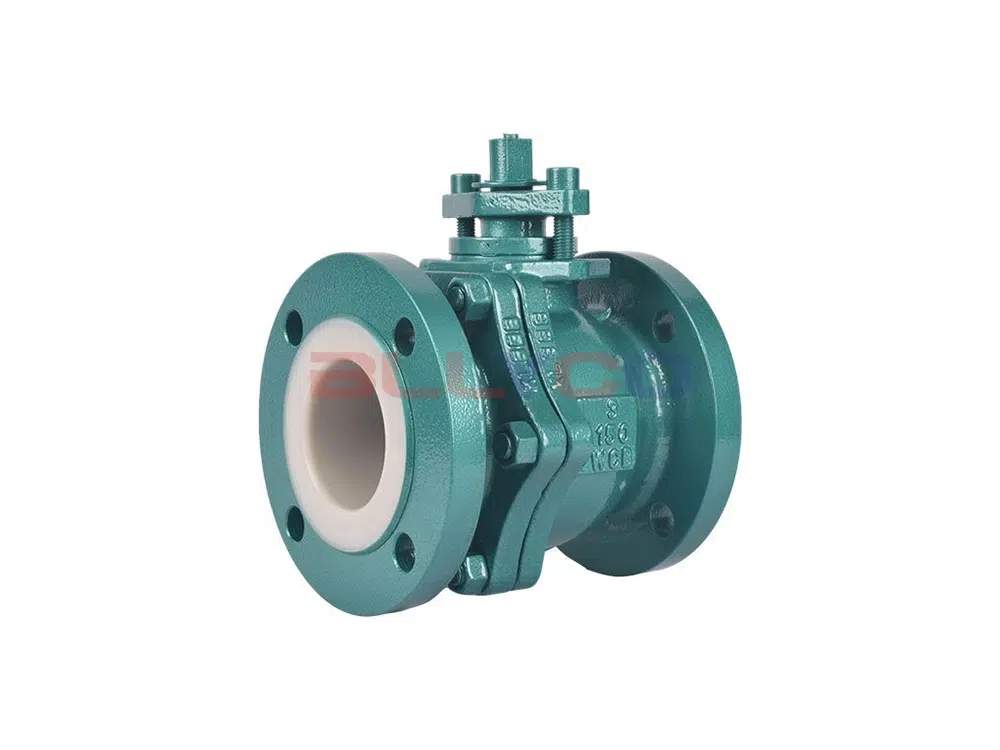

The Q41F46 ANSI PTFE Lined Ball Valve is designed for opening and closing pipelines carrying various highly corrosive media. Both the valve body interior and the ball are lined with corrosion- and aging-resistant poly-tetrafluoroethylene (F46) using a high-pressure injection molding process, ensuring reliable corrosion resistance and sealing performance. Widely used in industries such as chemicals, petroleum, metallurgy, and pharmaceuticals, this valve is used to regulate or shut off highly corrosive media such as acids and alkalis during production processes. Its performance is particularly effective in water treatment process control. It is currently one of the ideal choices among corrosion-resistant valve equipment.
Product Features
- Ball valves with a fluoroplastic lining offer exceptional chemical stability and are suitable for use with any highly corrosive substances except for “molten alkali metals and elemental fluorine.”
- Featuring a full-bore, floating-ball design, the valve provides leak-free shutoff across the entire pressure range, facilitating pipe cleaning and maintenance.
- The ball and the valve stem are cast (or forged) as a single unit, eliminating the possibility of the valve stem impacting the pressure-bearing components due to pressure changes, thereby fundamentally ensuring operational safety in engineering applications.
- The compact and well-designed structure, combined with the small internal cavity of the valve body, minimizes media retention.
- A special molding process ensures excellent density of the sealing surface, and when combined with herringbone-patterned PTFE packing, the valve achieves zero leakage.
Product Specifications
Product Model | Q41F46-150LBC |
Valve Body Material | Cast Steel |
Lining Material | FEP (F46) |
Nominal Pressure | Class 150LB |
Applicable Media | Nitric acid, acetic acid, alkaline media, etc. |
Operating Temperature | ≤120℃ |

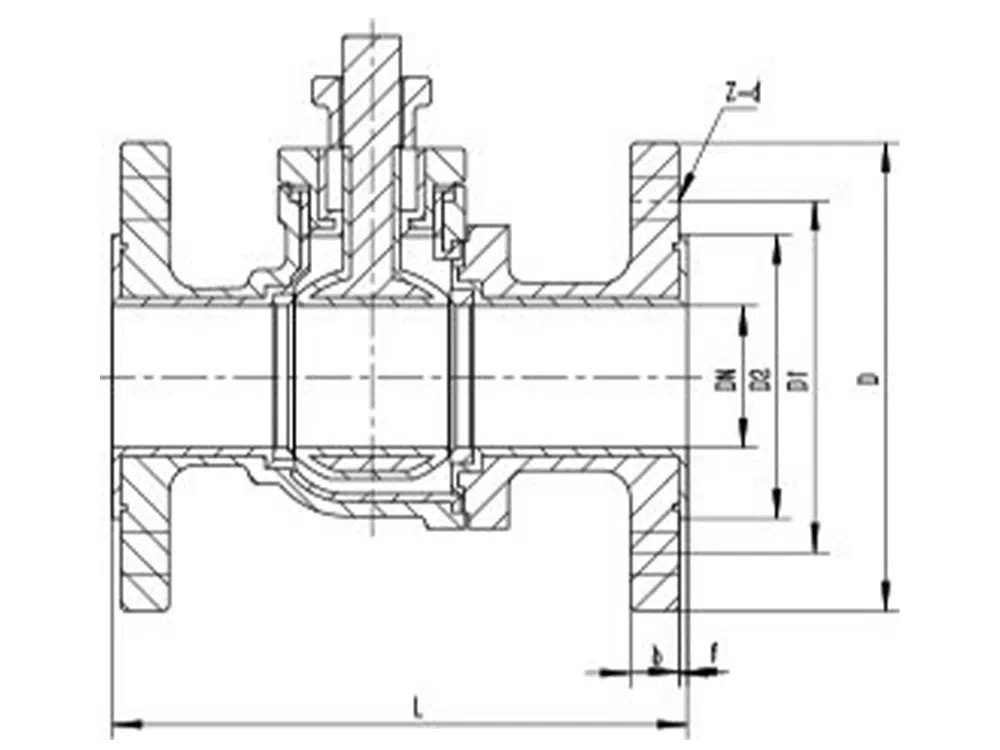

Product Size Guide
NPS | L | D | D1 | D2 | Z-d | f | b |
3/4" | 117 | 98 | 70 | 43 | 4-16 | 1.6 | 11.5 |
1" | 127 | 108 | 79.5 | 51 | 4-16 | 1.6 | 12 |
1-1/4" | 140 | 117 | 89 | 64 | 4-16 | 1.6 | 13 |
1-1/2" | 165 | 127 | 98.5 | 73 | 4-16 | 1.6 | 15 |
2" | 178 | 152 | 120.5 | 92 | 4-19 | 1.6 | 16 |
2-1/2" | 190 | 178 | 139.5 | 105 | 4-19 | 1.6 | 18 |
3" | 203 | 190 | 152.5 | 127 | 4-19 | 1.6 | 19 |
4" | 229 | 229 | 190.5 | 157 | 8-19 | 1.6 | 24 |
5" | 356 | 254 | 216 | 186 | 8-22 | 1.6 | 24 |
6" | 394 | 279 | 241.5 | 216 | 8-22 | 1.6 | 26 |
8" | 457 | 343 | 298.5 | 270 | 8-22 | 1.6 | 29 |
