Name: Cast Steel Semi-Enclosed Spring-Loaded Full-Lift Safety Valve A48Y-16C
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Steel Semi-Enclosed Spring-Loaded Full-Lift Safety Valve A48Y-16C

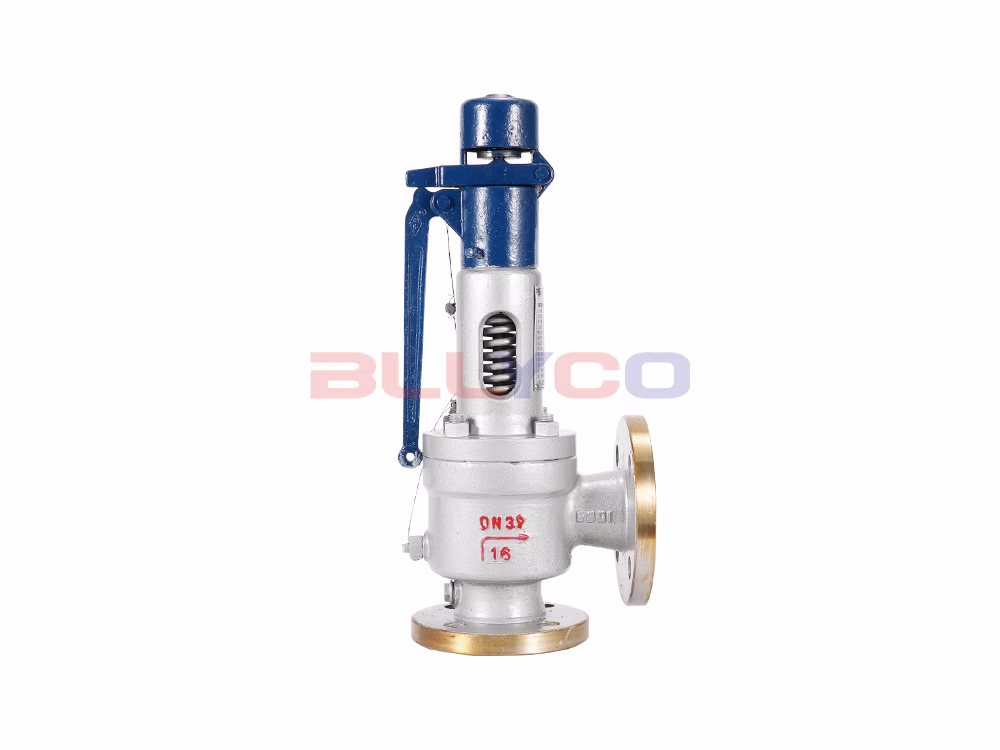

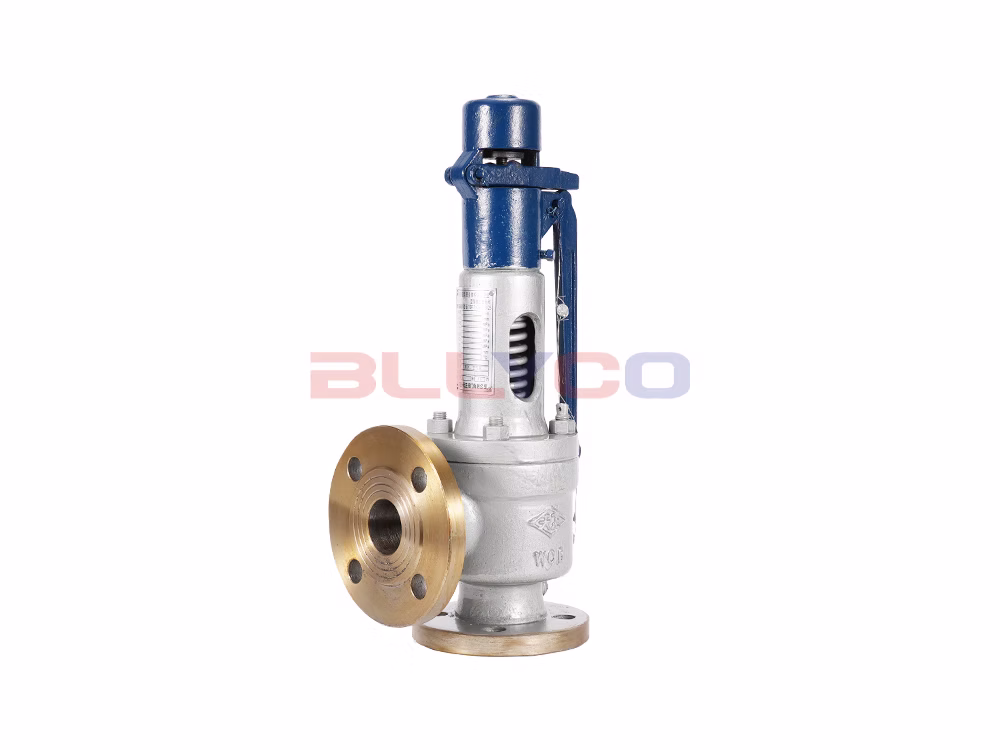

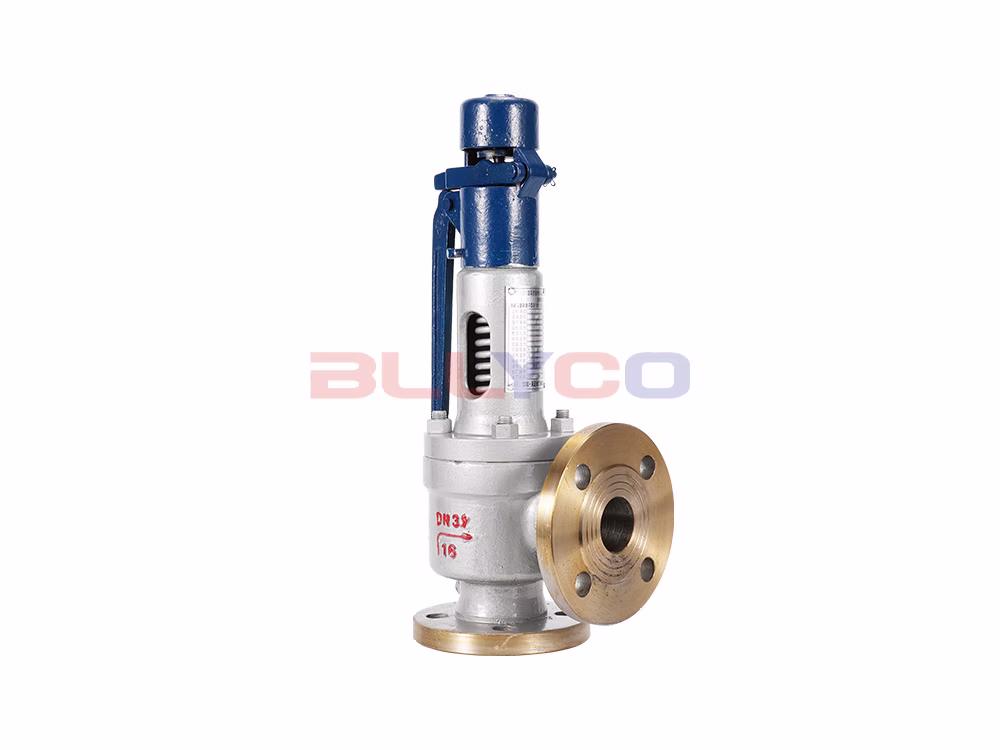

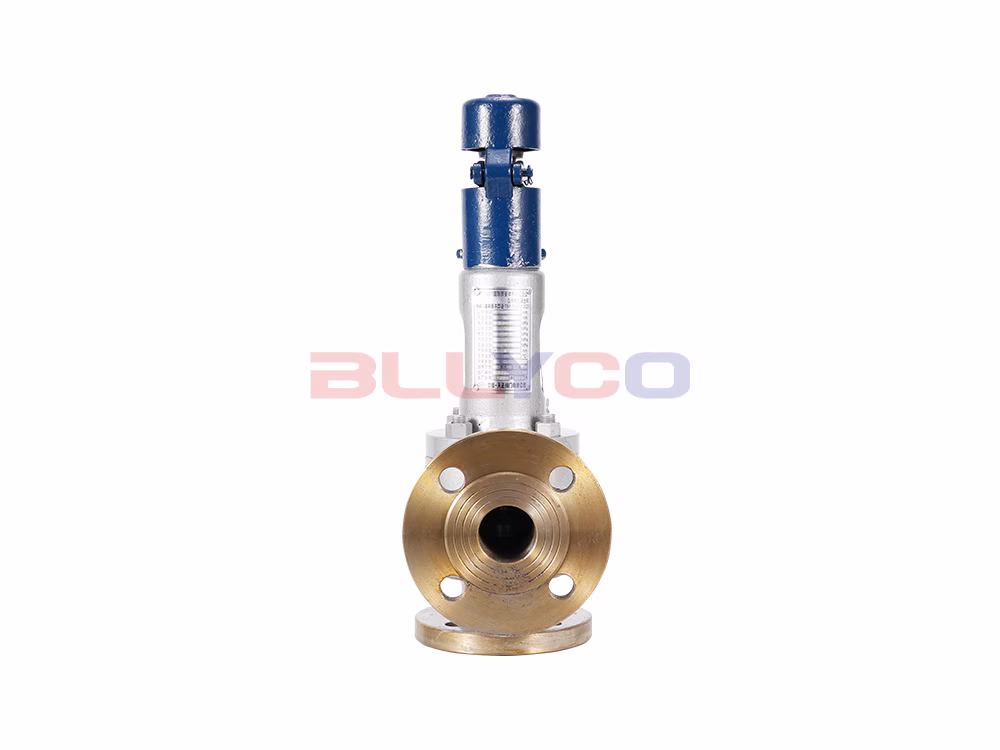

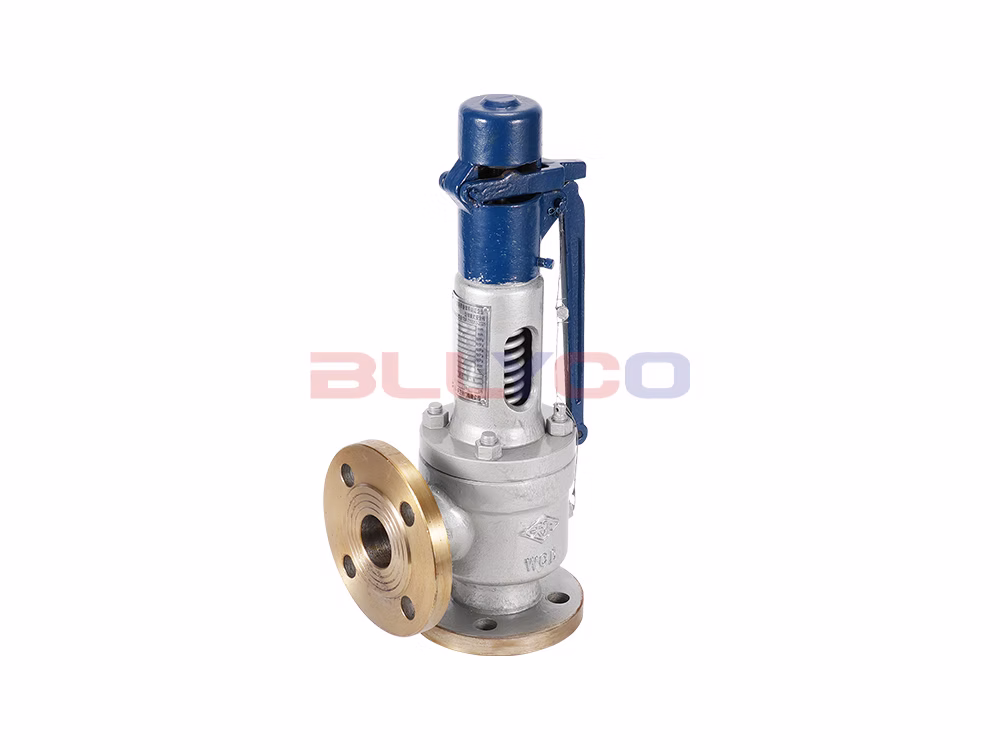

Cast Steel Semi-Enclosed Spring-Loaded Full-Lift Safety Valve A48Y-16C

Product Model: A48Y-16C
Valve Body Material: Cast Steel
Nominal Pressure: ≤1.6 MPa
Applicable Media: Air, steam, etc.
Operating Temperature: ≤350℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The A48Y semi-enclosed spring-loaded full-lift safety valve is suitable for use on equipment or pipelines carrying media such as air and steam at operating temperatures of ≤350°C, serving as an overpressure protection device.

How It Works

When the pressure inside the equipment and piping exceeds the allowable limit, the valve opens automatically, allowing the contents to be fully discharged; when the pressure drops to the specified level, the valve closes automatically, ensuring the safe operation of the equipment and piping.

Product Specifications

Product Model	A48Y-16C
Valve Body Material	Cast Steel
Nominal Pressure	≤1.6 MPa
Applicable Media	Air, steam, etc.
Operating Temperature	≤350℃

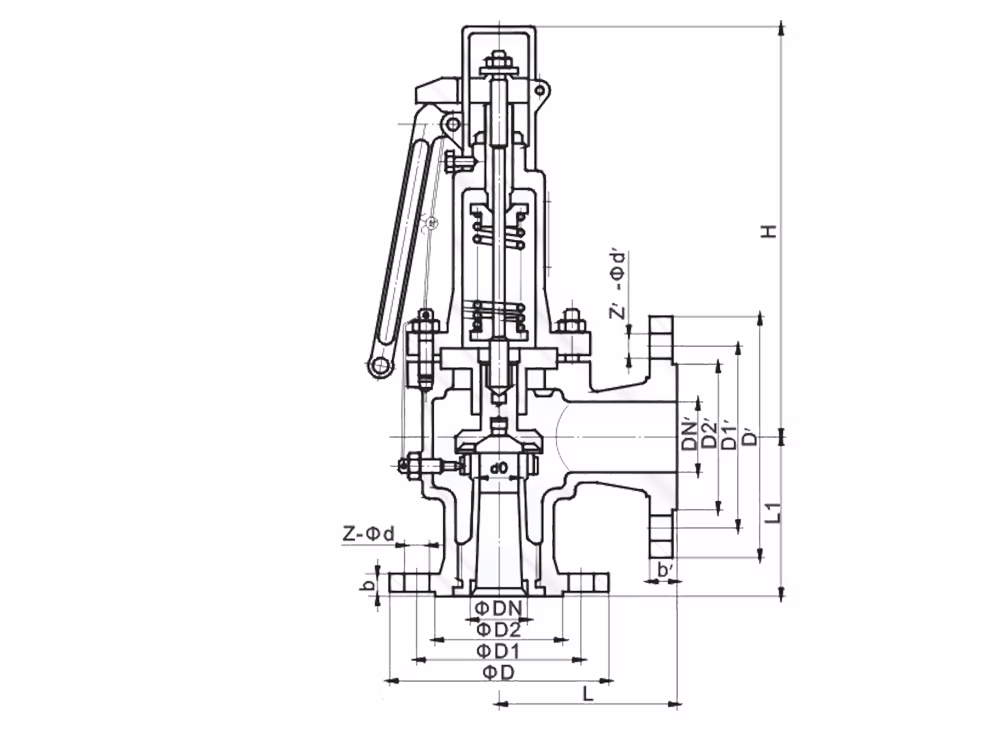

Product Size Guide

Nominal Diameter	do	DN	L	L1	≈H
DN20	15	25	110	95	306
DN25	16	32	110	95	306
DN32	20	40	115	100	309
DN40	25	50	120	110	323
DN50	32	65	135	120	333
DN65	40	80	160	140	420
DN80	50	100	170	135	432
DN100	65	125	205	160	553
DN125	80	150	210	190	639
DN150	100	175	255	230	654
DN200	125	250	305	260	797
DN250	150	300	350	320	998
DN300	220	400	370	350	1246
DN350	250	500	500	450	1711
DN400	280	500	500	450	1780
