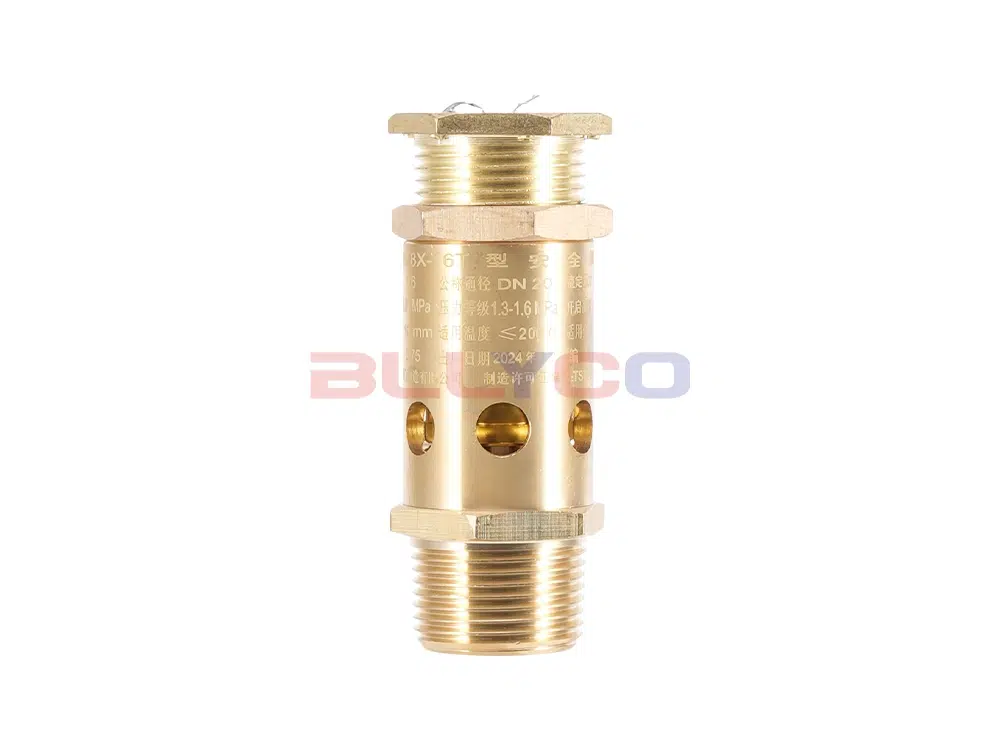

Product Description
The A28X Air Compressor Safety Valves are suitable for use as overpressure protection devices on equipment or pipelines carrying media such as Gases, oils, etc. at operating temperatures of ≤200℃.
How It Works
When the pressure inside the equipment exceeds the permitted limit, the valve opens automatically to fully vent the system; when the pressure drops to the specified level, the valve closes automatically, ensuring the safe operation of the equipment.
Applications
It is primarily used in air compressors, pressure vessels, and industrial piping systems.
Product Specifications
Product Model | A28X-16T |
Valve Body Material | Brass |
Nominal Pressure | ≤1.6 MPa |
Applicable Media | Gases, oils, etc. |
Operating Temperature | ≤200℃ |

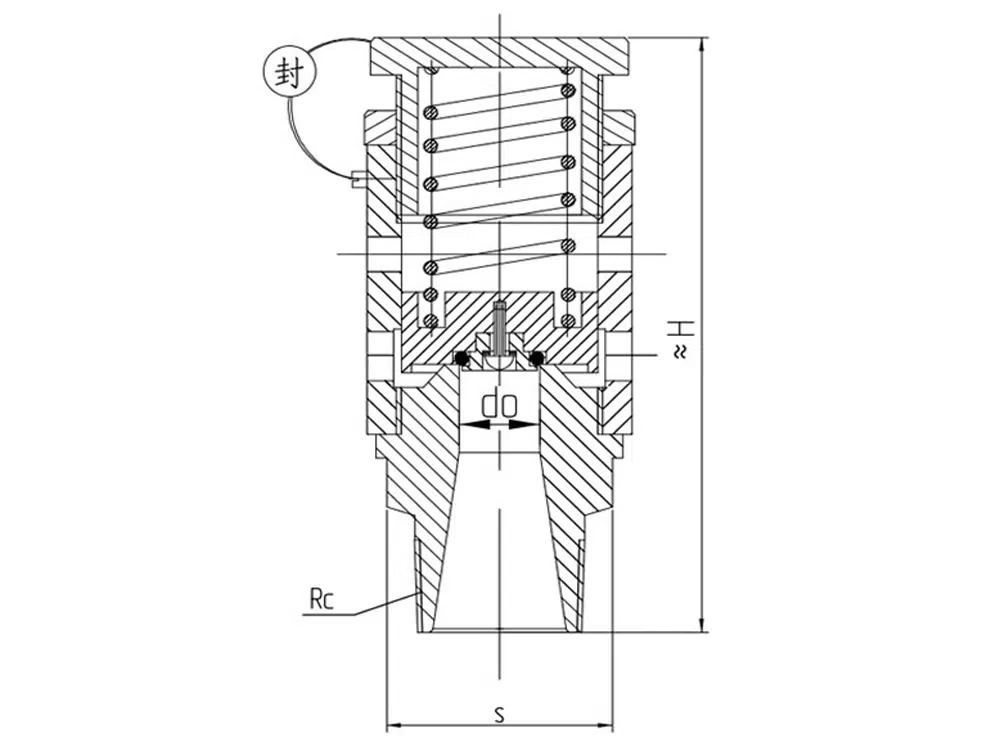

Product Size Guide
Nominal Diameter | do | Rc | S | ≈H |
DN8 | 4 | 1/4 | 21 | 59 |
DN10 | 6 | 3/8 | 21 | 71 |
DN15 | 8 | 1/2 | 25 | 73 |
DN20 | 10 | 3/4 | 30 | 80 |
DN25 | 15 | 1 | 40 | 115 |
DN32 | 20 | 1-1/4 | 50 | 160 |
DN40 | 25 | 1-1/2 | 60 | 171 |
DN50 | 32 | 2 | 65 | 173 |
