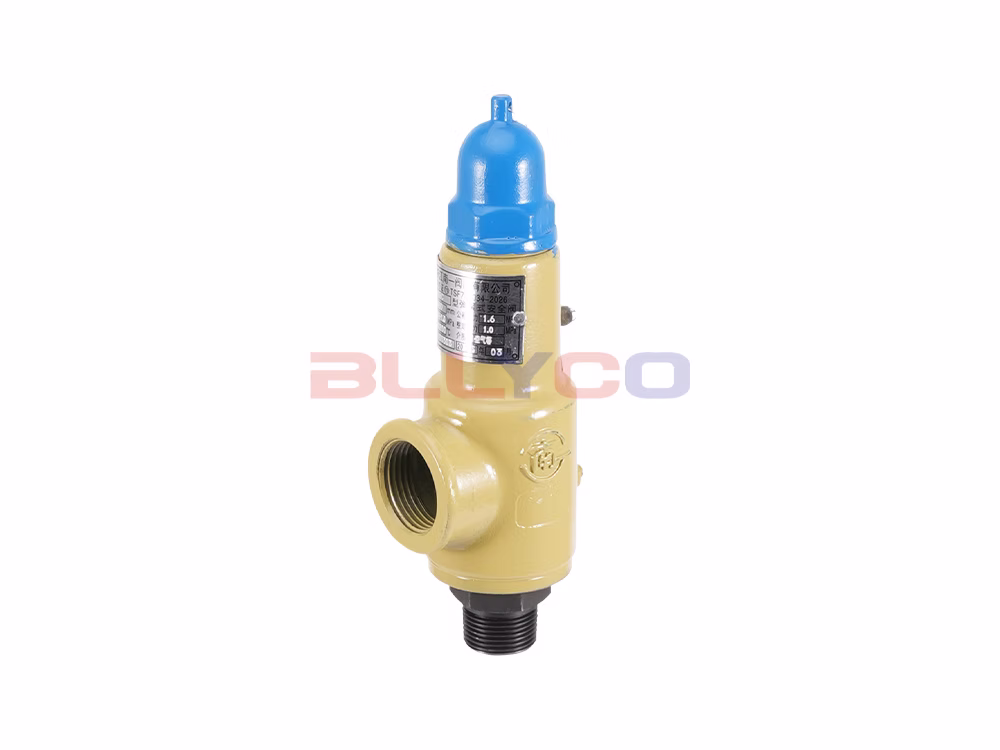

Name: Cast Steel Spring-Loaded Full-Lift Fully Enclosed Safety Valve with Male Thread A22H-16C
Brand: Bolaikong Technology (Wuxi) Co., Ltd.
SKU: Cast Steel Spring-Loaded Full-Lift Fully Enclosed Safety Valve with Male Thread A22H-16C

Cast Steel Spring-Loaded Full-Lift Fully Enclosed Safety Valve with Male Thread A22H-16C

Product Model: A22H-16C
Valve Body Material: Cast Steel
Nominal Pressure: ≤1.6 MPa
Applicable Media: Air, water, nitrogen-hydrogen mixtures, and other media
Operating Temperature:≤200℃

Quality Assurance

Built to Last

Reasonably Priced

Technical Support

Get QuoteChat Now

Product Description

The A22H/Y/W series spring-loaded full-lift fully enclosed safety valve with male thread is designed for use on equipment or piping systems handling media such as air, water, and nitrogen-hydrogen mixtures at operating temperatures up to 200°C, serving as an overpressure protection device.

Product Features

Full-lift design with high displacement.
Threaded connection for easy installation.
Compact, economical, and practical.

Product Specifications

Product Model	A22H-16C
Valve Body Material	Cast Steel
Nominal Pressure	≤1.6 MPa
Applicable Media	Air, water, nitrogen-hydrogen mixtures, and other media
Operating Temperature	≤200℃

Product Size Guide

Nominal Diameter	do	R	G	L	L1	≈H
DN15	10	1/2	3/4	37	65	140
DN20	12	3/4	1	40	70	150
DN25	15	1	1-1/4	45	78	160
DN32	20	1-1/4	1-1/2	60	90	210
DN40	25	1-1/2	2	67	105	225
DN50	32	2	2-1/2	76	115	235
DN65	40	2-1/2	3	110	145	370
DN80	50	3	4	110	145	410
